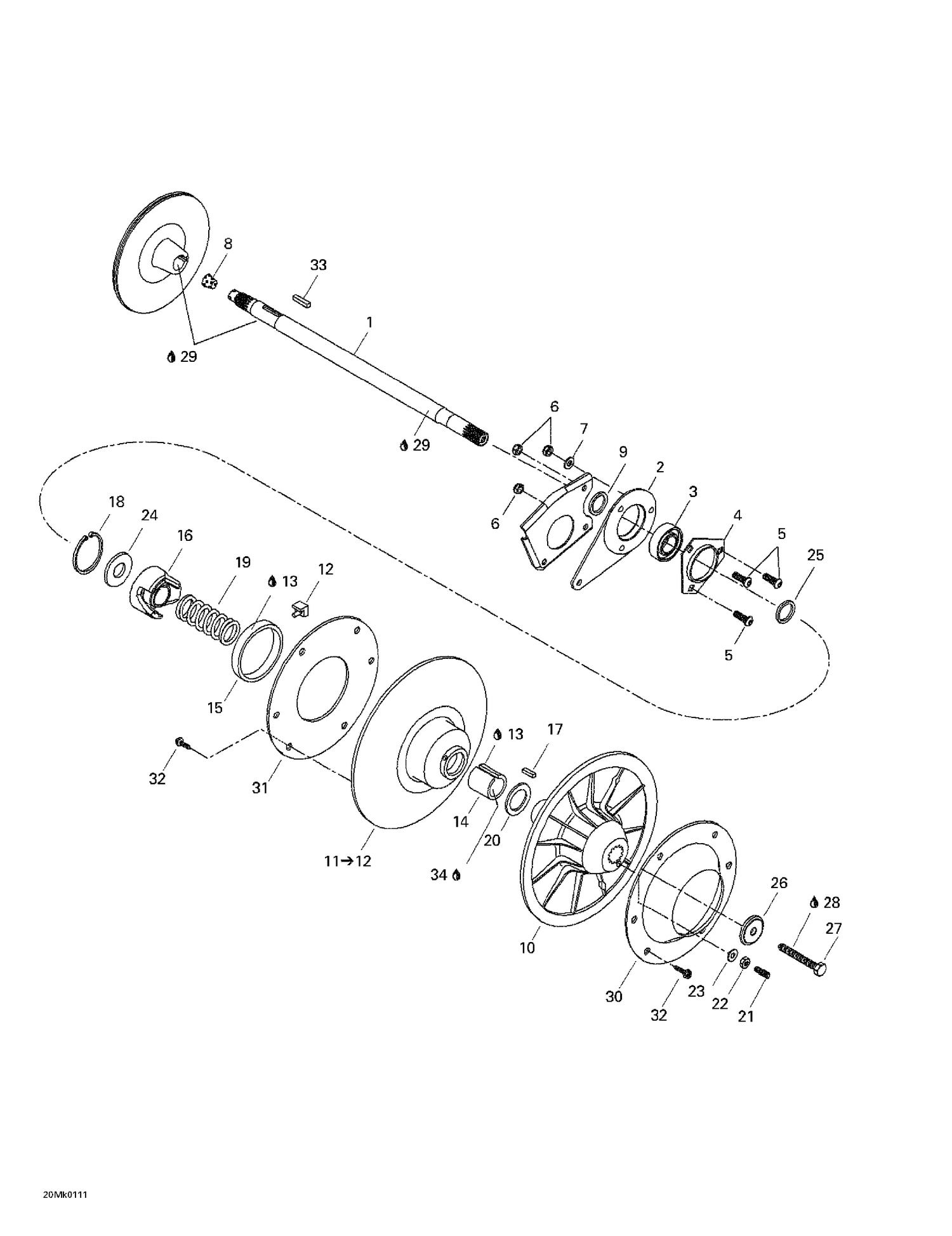

05- Driven Pulley
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501026300 | COUNTER SHAFT - Call your local BRP dealership |
| 2 | 080044200 | Spacer (Casting) |
| 3 | 415129555 | Ball Bearing Kit This part replaces 504152007. |
| 4 | 501025000 | FLANGE - Call your local BRP dealership |
| 5 | 205482546 | SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 6 | 232581414 | Hex. Elastic Stop Nut M8 |
| 7 | 234081410 | Flat Washer 8 mm |
| 8 | 414784800 | CORK - Call your local BRP dealership |
| 9 | 504149100 | Spacer |
| 10 | 417126477 | Fixed Flange |
| 12 | 414918000 | CAM SLIDER SHOE - Call your local BRP dealership |
| 13 | 413703100 | Loctite 609, 10 ml |
| 14 | 415011200 | BUSHING - Call your local BRP dealership |
| 15 | 414876600 | GARLOCK BUSHING - Call your local BRP dealership |
| 16 | 417126380 | Cam |
| 17 | 414820800 | Key |
| 18 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 19 | 415092800 | YELLOW SPRING - Call your local BRP dealership |
| 20 | 504141900 | Thrust Washer |
| 21 | 206263044 | Socket Set Screw M6 X 30 |
| 22 | 232061414 | Hex. Nut M6 |
| 23 | 420245370 | WASHER - Call your local BRP dealership |
| 24 | 504141800 | Washer |
| 25 | 504149100 | Spacer |
| 26 | 517302322 | Strength Washer |
| 27 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 28 | 293800060 | Loctite 243, 10 ml |
| 29 | 293800023 | LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 30 | 504142000 | CUP - Call your local BRP dealership |
| 31 | 504142100 | Ring |
| 32 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 33 | 507021300 | KEY - Call your local BRP dealership |
