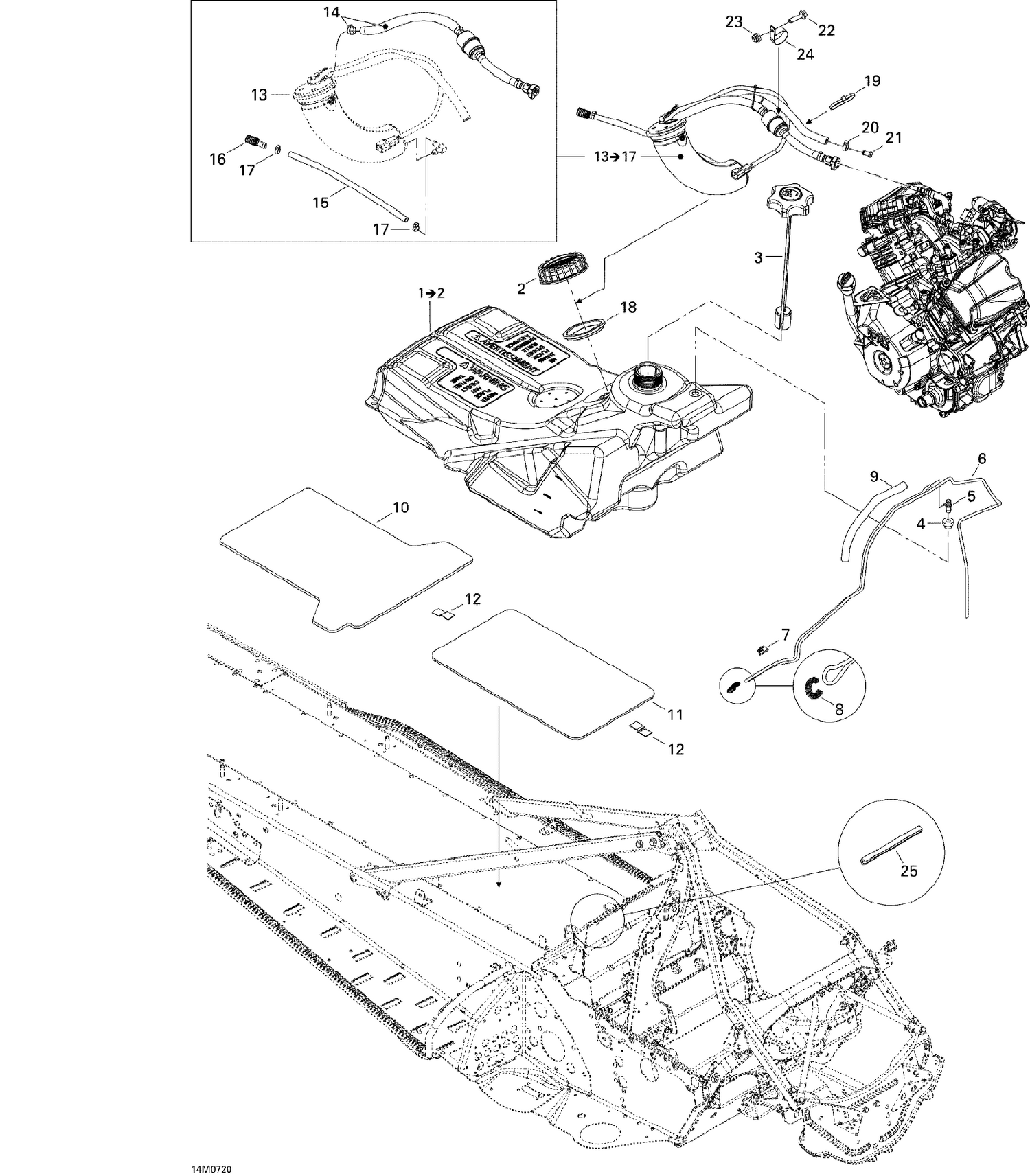

02- Fuel System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033040 | Nut, Fuel Pump Module |
| 3 | 513033361 | Fuel Tank Cap |
| 4 | 513032908 | Grommet |
| 5 | 414814100 | Male Connector |
| 6 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 7 | 414227300 | Clip |
| 8 | 414818200 | SPRING - Call your local BRP dealership |
| 9 | 219704407 | Tubing 10 MM 1000MM Long |
| 10 | 511000499 | ANTI SLIP MAT - Call your local BRP dealership |
| 11 | 511000500 | RADIATOR COVER SHIM - Call your local BRP dealership |
| 12 | 293740005 | Tape |
| 14 | 415129208 | FUEL FILTER - Call your local BRP dealership |
| 15 | 513033070 | Hose |
| 16 | 414872100 | Fuel Filter Strainer |
| 17 | 513033010 | Norma Spring Clamp |
| 18 | 513033039 | SEAL - Call your local BRP dealership |
| 19 | 414115200 | Tie-Rap 180 mm |
| 20 | 293650047 | Crimp Clamp, 15.3-706R |
| 21 | 293000107 | PLUG, 8 MM - Call your local BRP dealership This part replaces 513033187. |
| 22 | 207683044 | Hex. Flange Screw M8 X 30 |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 513033047 | Open Clamp |
