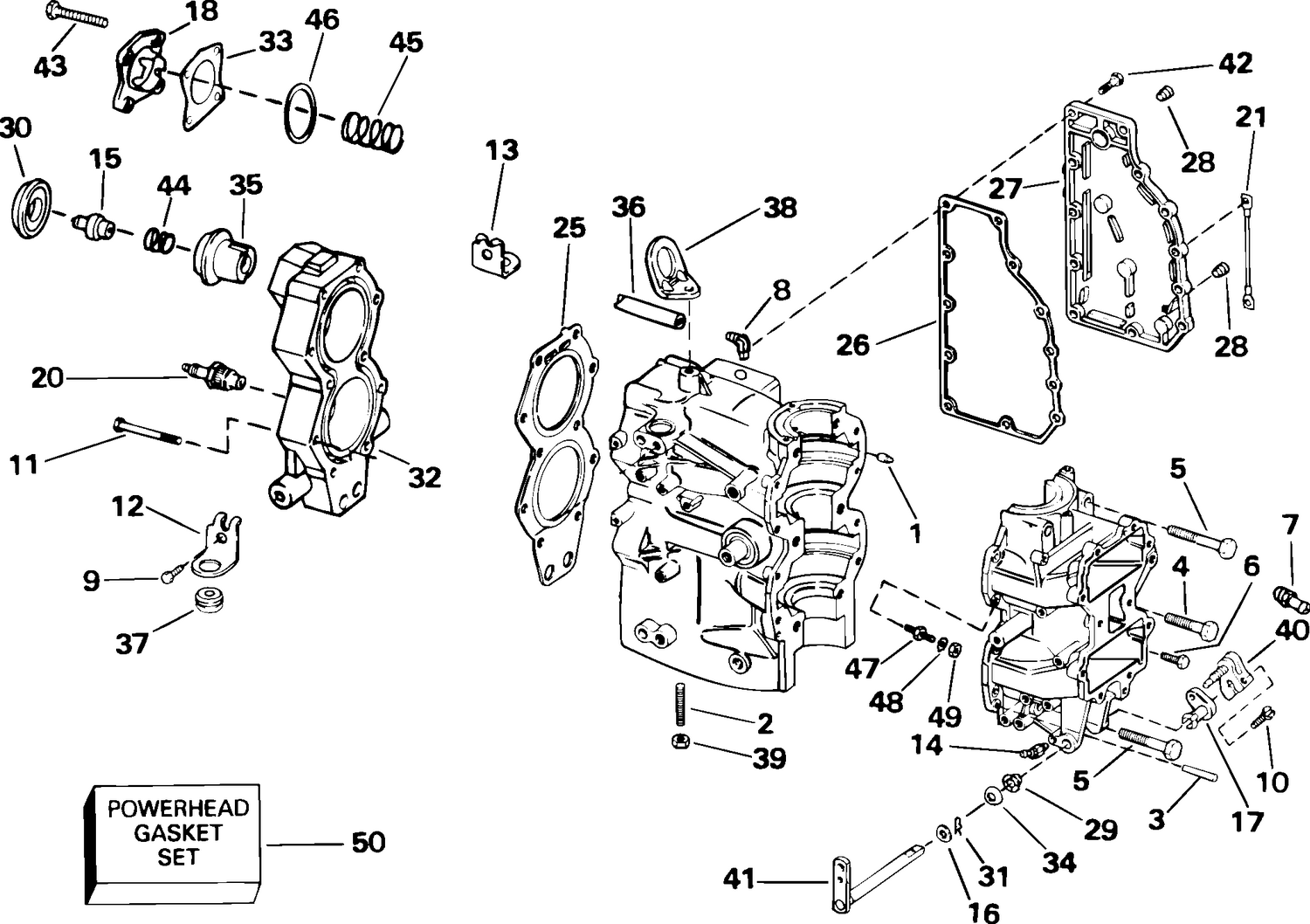

| Ref | Part Number | Description |
|---|
| 9 |
0306539 |
BOLT, Distributor |
| 10 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 11 |
0322323 |
SCREW |
| 12 |
0337504 |
BRACKET, Cyl. head to lower cover, starboard |
| 13 |
0337503 |
BRACKET, Cyl. head to lower cover, port |
| 15 |
0436195 |
ENSEMBLE THERMOSTAT |
| 16 |
0202026 |
LOCK WASHER, Stud |
| 17 |
0331765 |
BUSHING & ROD KEEPER |
| 18 |
0343141 |
COVER, Thermostat |
| 20 |
0432424 |
SPARK PLUG , QL16V |
| 21 |
0584472 |
ENSEMBLE FILS, masse |
| 25 |
0335359 |
GASKET, Cylinder head |
| 26 |
0325211 |
GASKET |
| 27 |
0437506 |
COVER & PLUG Assy, Water passage |
| 29 |
0312708 |
BUSHING |
| 30 |
0435957 |
DIAPHRAGM |
| 32 |
0340101 |
CYLINDER HEAD |
| 33 |
0329830 |
GASKET, Cover |
| 34 |
0306012 |
BOW WASHER |
| 37 |
0337505 |
GROMMET, Bracket |
| 38 |
0326023 |
LIFT BRACKET |
| 39 |
0316355 |
BUT, Carburetor mounting |
| 40 |
0396831 |
LEVER SHIFT ROD |
| 41 |
0396832 |
SHIFT LEVER |
| 42 |
0318178 |
SCREW, Clamp |
| 43 |
0306049 |
SCREW |
| 45 |
0343977 |
SPRING |
