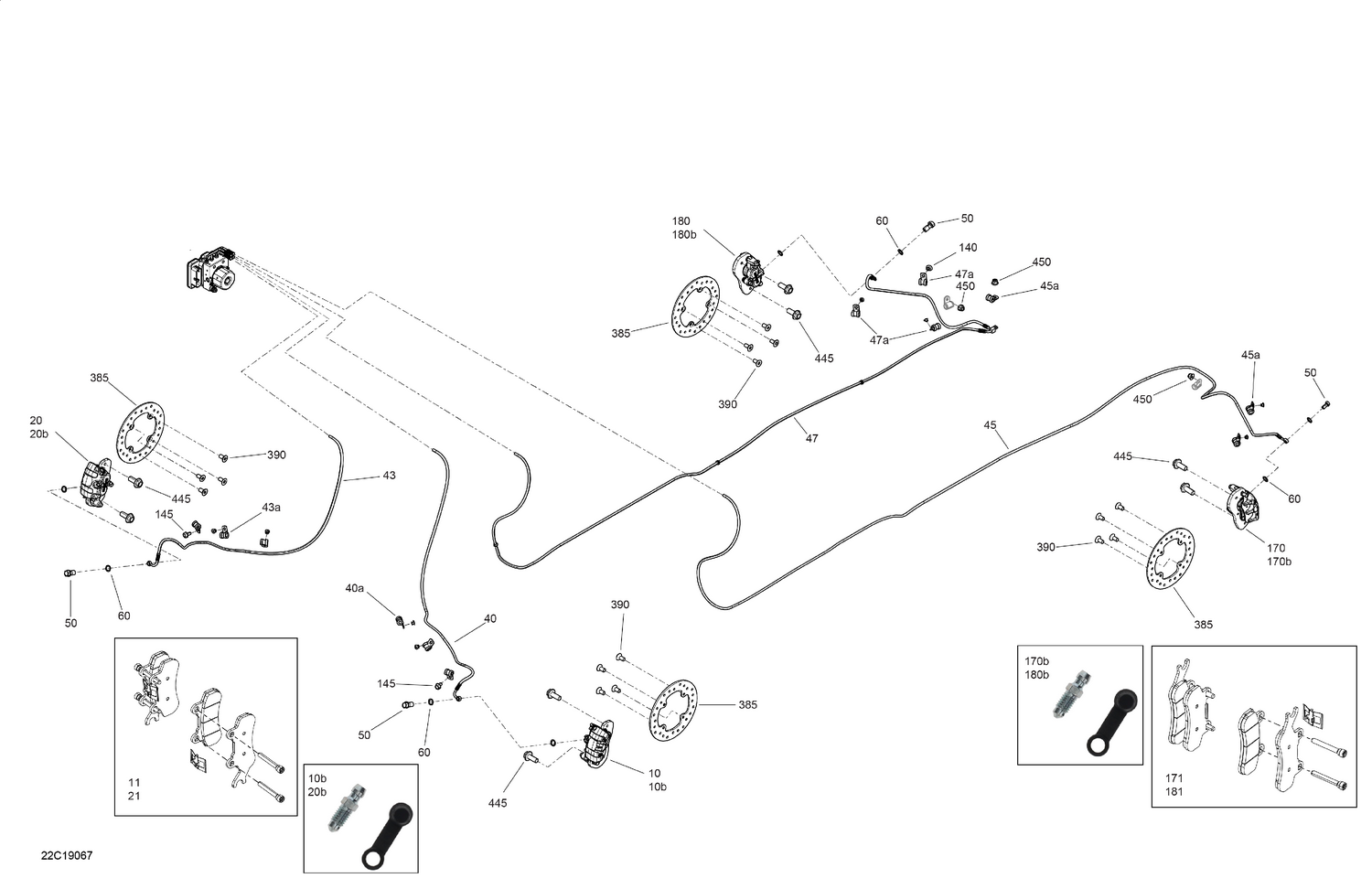

06- Brakes - Brakes Line
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20b | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 40 | 705601856 | LH Front Caliper Hose This part replaces 705601659. |
| 40a | 293650256 | Clamp |
| 43 | 705601857 | RH Front Caliper Hose This part replaces 705601660. |
| 43a | 293650256 | Clamp |
| 45 | 705601661 | LH Rear Hose Caliper |
| 45a | 293650256 | Clamp |
| 47a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 140 | 390402200 | Pop Rivet 3/16" |
| 145 | 210261040 | Hex. Flange Screw M6 X 10 |
| 170b | 705601017 | Bleeding Screw |
| 171 | 703501199 | LH/RH Rear Brake Pad Set |
| 180b | 705601017 | Bleeding Screw |
| 181 | 703501199 | LH/RH Rear Brake Pad Set |
| 385 | 705601511 | Brake Disc |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 445 | 207502546 | Hex. Flange Screw M10 X 25 |
