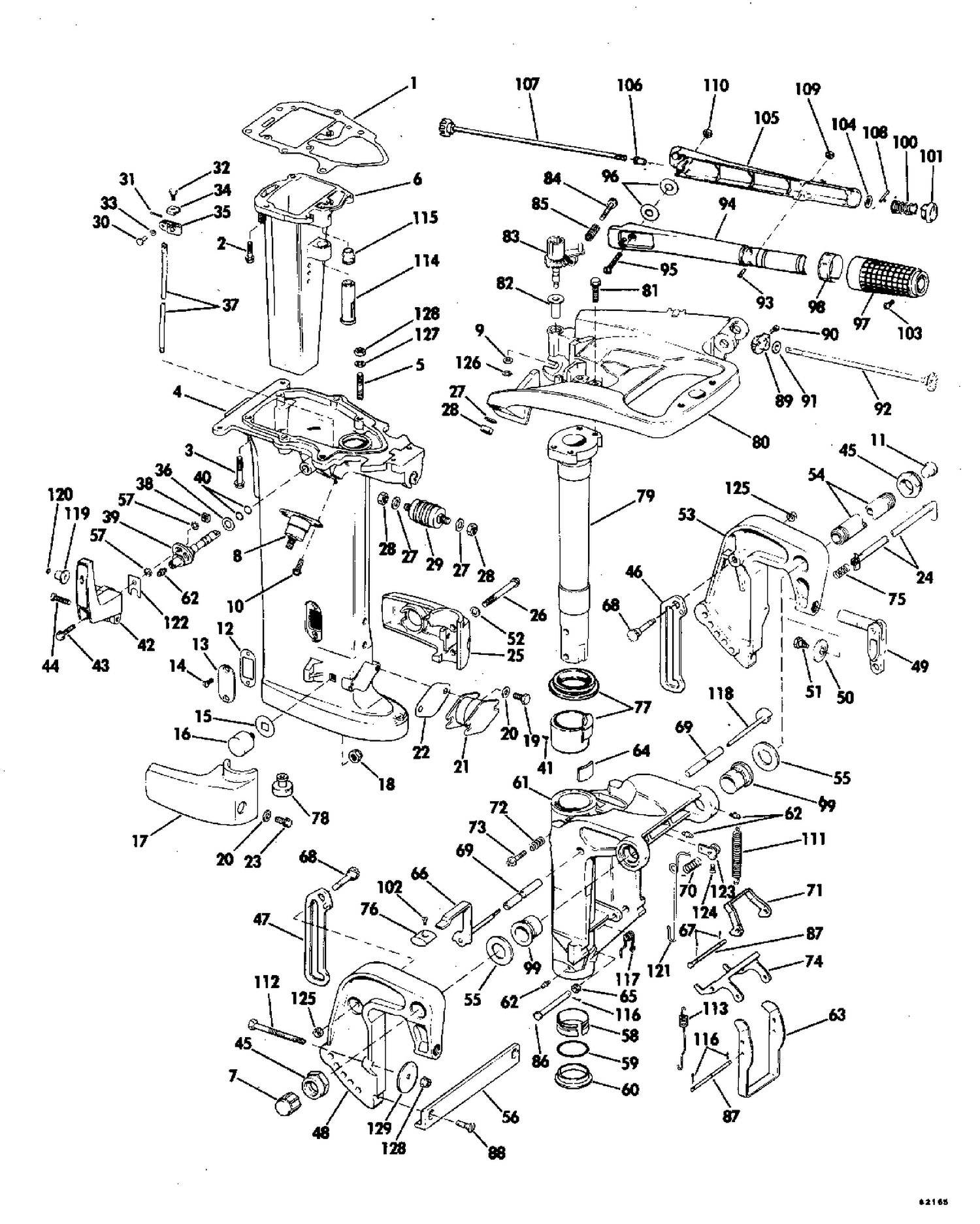

EXHAUST HOUSING - 35

EXHAUST HOUSING - 35

Parts (101)

RefPart NumberDescription
1 0319710 GASKET, Baffle
3 0324871 SCREW, Housing to cylinder
4 0386902 EXHAUST HOUSING ASSY-STD
4 0386930 EXHAUST HOUSING ASSY-LONG
6 0322682 EXHAUST TUBE, Inner
7 0317894 CACHE, tube de relevage
8 0303879 MOUNT Rubber, upper side, std. only
9 0303887 WASHEER, Pin to swivel bracket
12 0304023 GASKET, Cover plate
13 0303862 COVER PLATE, Extension LONG SHAFT MODELS
14 0303587 SCRES,Cover plate
15 0304168 GASKET, Mount, lower side
16 0321470 MOUNT, Rubber, lower side
17 0323109 HOUISING,Lower mount,stbd.
18 0303890 ACORN NUT, Lower side mount
20 0303886 LOCKWASHER
21 0321469 MOUNT, Rubber, lower front
22 0304169 GASKET, Lower front mount
23 0309942 SCREW, Anchor bracket
24 0436212 THRUST ROD ASSEMBLY This part replaces 0385787.
25 0323108 HOUSING, Lower mount port
26 0342540 SCREW, Exhaust housing to ext. This part replaces 0316440.
27 0303884 RONDELLE
29 0304800 MOUNT, Rubber, upper front
30 0319541 PIN, Bellcrank to shift rod
32 0321532 SCREW
33 0304380 RONDELLE ÉLASTIQUE
34 0319537 CLIP
35 0322092 LEVER, Shift rod
36 0303775 WAHSER, Lever to hsg
37 0319680 SHIFT ROD, Upper
39 0388655 ADJ LEVER AND SHAFT ASSY
41 0303696 PIN
42 0384477 SHIFT LEVER & PIN
43 0306404 SCREW
44 0323099 SCREW, Bumper This part replaces 0301989.
45 0323599 LOCKNUT This part replaces 0316828.
48 0391943 STERN BRKT. ASSY., Stbd This part replaces 0388837.
49 0433675 CLAMP SCR. & HAND. ASSY. This part replaces 0388347.
52 0304144 LOCK WASHER
53 0391942 STERN BRKT. AT., Port (includes items 49, 51) This part replaces 0388838.
54 0351896 TILT TUBE This part replaces 0321511.
55 0319699 THRUST WASHER, Stern bracket
56 0357240 TIE BAR, Stern bracket This part replaces 0319709.
58 0309967 BUSHING, Pilot shaft, lower
59 0305270 O RING
60 0309966 THRUST WASHER, Lower swivel bracket
61 0323158 BRACKET, Rubber, lower side
63 0338657 LINK, Shallow water drive This part replaces 0320426.
64 0397736 BLOCK ASSY., Friction This part replaces 0319086.
65 0303887 WASHEER, Pin to swivel bracket
66 0388662 LEVEER & SHAFT, Lock
68 0319692 PIN TILT LOCK
69 0319693 BUSHING, Tilt lock
70 0319694 SPRING, Tilt lock
71 0322950 LEVER, Reverse lock
74 0322949 LINK, Reverse lock
75 0322948 BRUSH SET
76 0328048 KNOB, Tilt & reverse lock lever This part replaces 0319051.
77 0397736 BLOCK ASSY., Friction This part replaces 0388748.
78 0326071 BUMPER, Mount housing This part replaces 0323107.
80 0322883 BRACKET, Steering
80 0322884 BRACKET, Steering
82 0303854 BUSHI:NG, Throttle control
83 0393943 GEAR, Throttle control This part replaces 0387634.
84 0304573 SCR., Idle adj.
85 0309247 RESSORT
86 0322947 HEAD ASSY.
87 0322945 PIN, Link shallow water drive
88 0324579 SCREW This part replaces 0312709.
89 0303142 PINION, Control throttle
90 0303951 SCREW, PIN TO SHAFT
91 0305347 BUSHING, Throttle shaft
92 0387057 GEAR & SHAFT, Short
93 0133452 SCREW
94 0322933 HANDLE ,Sterring,inner half
95 0330976 SCREW, Handle halves This part replaces 0303078.
96 0303079 WASHER
97 0393556 GRIP & SLEEVE ASSY. This part replaces 0386239.
98 0320842 PLATE
99 0319787 BUSHING
100 0301656 SPRING
101 0303282 BLOCK
102 0319227 SCREW, Knob
104 0303252 WAHSER, Grip spring
105 0322932 HANDLE, Outer half
106 0325074 BUSHING This part replaces 0305100.
107 0388657 GEAR & SHAFT, Long
110 0328742 NUT This part replaces 0306338.
111 0315078 SPRING, Reverse lock
112 0432294 SCREW & NUT ASSEMBLY This part replaces 0313966.
113 0319697 SPRING REVERSE LOCK
114 0321513 GUIDE, Water tube
117 0322946 SPRING, Shallow water drive
118 0388661 CAM & SHIFT ASSY., Tilt lock
119 0323493 BUSHING
120 0308776 O-RING
121 0319696 ROD, Reverse lock
122 0322878 SPACER, Shift lever
123 0319695 BELL CRANK
124 0319108 SCREW BELCRANK
