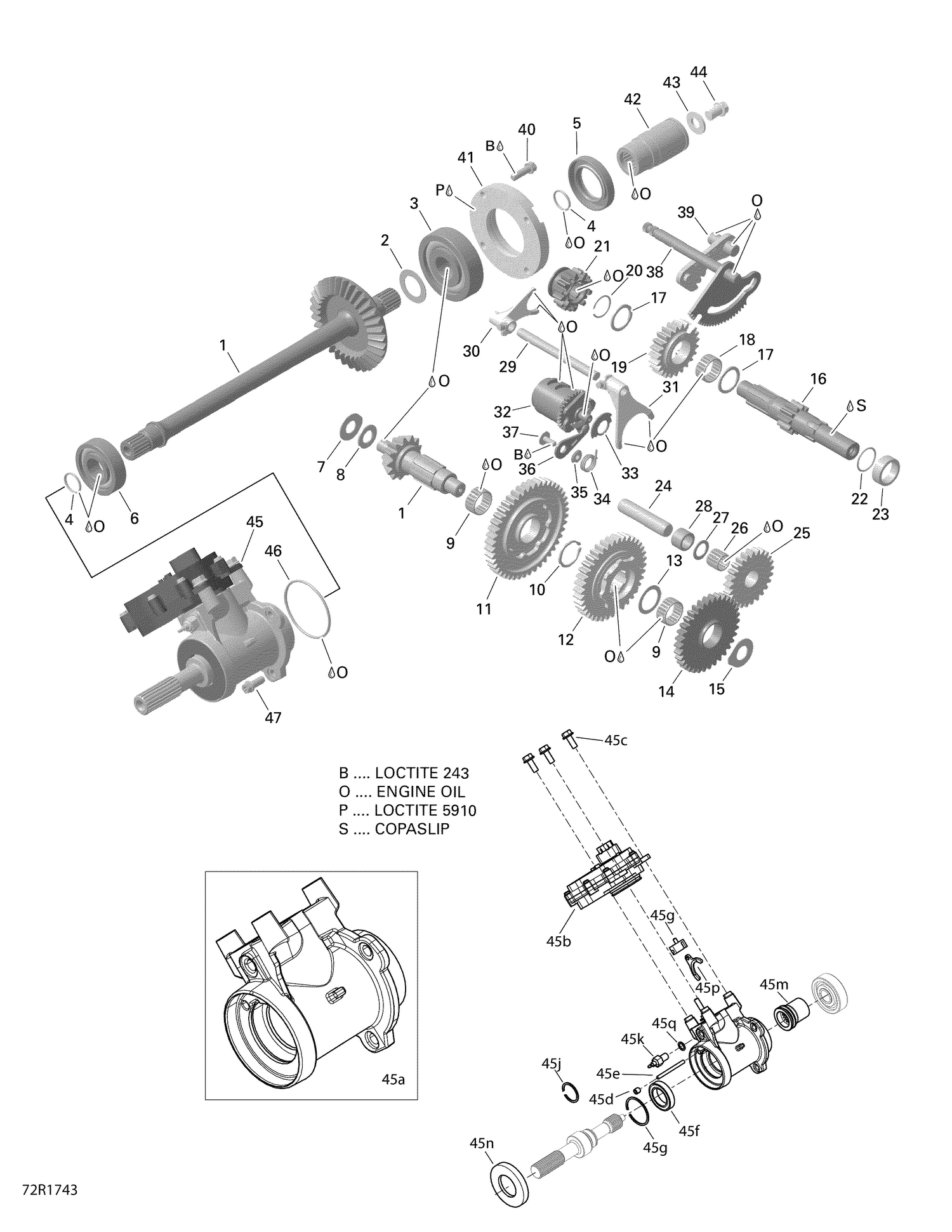

01- Gear Box And Components
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420635558 | Bevel Gear Ass’y |
| 2 | 420281300 | Washer Thrust Set |
| 3 | 420632280 | Ball Bearing 6405 |
| 4 | 420430373 | O-Ring This part replaces 420430370. |
| 5 | 420650683 | Oil Seal |
| 6 | 420932822 | Ball Bearing |
| 7 | 420281306 | Thrust Washer Set, MAG Side |
| 8 | 420632300 | Axial Needle Bearing |
| 9 | 420632070 | Needle Bearing |
| 10 | 420245850 | Retaining Ring |
| 11 | 420635584 | Sliding Gear 44T |
| 12 | 420635573 | Gear Pinion 38T |
| 13 | 420427010 | Thrust Washer |
| 14 | 420635184 | Gear Pinion 34T |
| 15 | 420281302 | Thrust Washer Set, CVT Side |
| 16 | 420220972 | Countershaft 11T |
| 17 | 420227862 | Thrust Washer |
| 18 | 420632070 | Needle Bearing |
| 19 | 420635603 | Gear Pinion 23T |
| 20 | 420445302 | Circlip This part replaces 420445300. |
| 21 | 420635215 | Gear Pinion 16T |
| 22 | 420630040 | O-Ring |
| 23 | 420247125 | Distance Ring This part replaces 420247113. |
| 24 | 420229600 | Needle Pin |
| 25 | 420635674 | Intermediate Gear 25T |
| 26 | 420432034 | Needle Cage |
| 27 | 420944192 | Thrust Washer |
| 28 | 420247122 | Distance Ring |
| 29 | 420229540 | Pin |
| 30 | 420257332 | Shift Fork This part replaces 420257330. |
| 31 | 420257342 | Shift Fork This part replaces 420257340. |
| 32 | 420257329 | Shift Drum |
| 33 | 420627782 | Isolating Washer |
| 34 | 420238290 | Index Spring |
| 35 | 420227717 | Step Ring |
| 36 | 703500254 | Index Lever Kit |
| 37 | 420241522 | Torx Screw M6 X 16 This part replaces 420241529. |
| 38 | 420620136 | Shift Shaft Ass'y This part replaces 420620135. |
| 39 | 420257319 | Parking Lock Lever Ass'Y This part replaces 420257317. |
| 40 | 420440372 | Torx Flange Screw M8 X 25 |
| 41 | 420610243 | Bearing Cover |
| 42 | 420947772 | Output Sleeve |
| 43 | 420627761 | Washer |
| 44 | 420840856 | Collar Screw M12X20 |
| 45a | 705402360 | Machined Housing |
| 45b1 | 705400274 | Fork |
| 45b2 | 293370042 | Circlip |
| 45b3 | 293300117 | O-Ring |
| 45c | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 45d | 206580890 | Pressure Screw M8 X 8 |
| 45e | 250400025 | Dowell Pin |
| 45f | 705400249 | Ball Bearing |
| 45g | 705402139 | Slider |
| 45h | 293370029 | Circlip |
| 45j | 293370030 | Circlip |
| 45k | Not | Available As Spare Part - Non Applicable |
| 45m | 705400389 | Coupling Sleeve |
| 45n | 293250348 | Oil Seal |
| 45p | 705401553 | Shifter Lever Plate |
| 45q | Not | Available As Spare Part - Non Applicable |
| 45r | Not | Available As Spare Part - Non Applicable |
| 46 | 420430390 | O-Ring |
