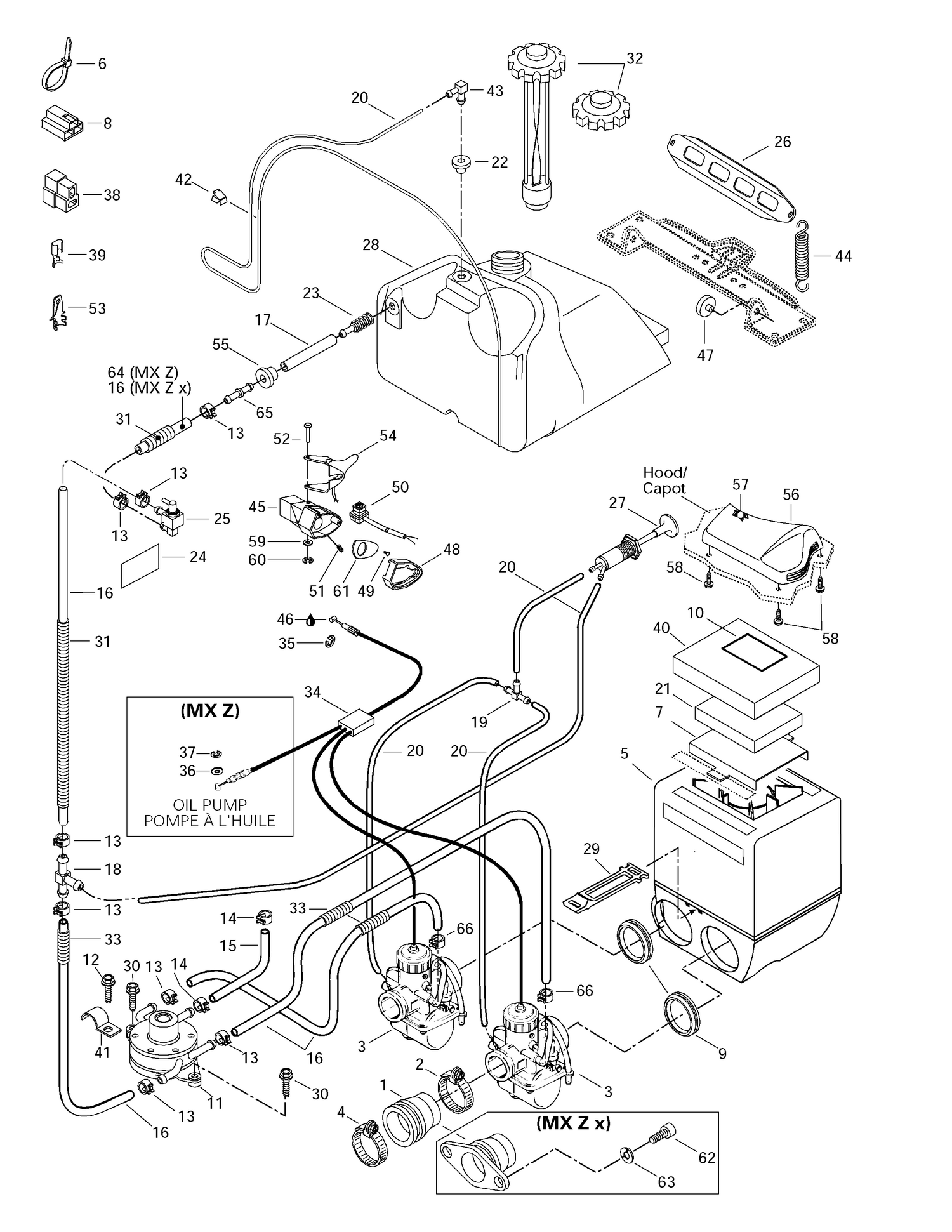

02- Fuel System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415038400 | Clamp (50 mm) |
| 7 | 517283900 | Grill Intake |
| 8 | 409008500 | Female Terminal Housing (3 circuits) |
| 10 | 414161500 | Warning Decal |
| 11 | 403900900 | Fuel Pump |
| 12 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 732600002. |
| 13 | 414554800 | Spring Clamp |
| 14 | 414415200 | Spring Clamp |
| 15 | 219704549 | Hose This part replaces 219704439. |
| 16 | 219704410 | Polyurethane Hose 10000Mm Long |
| 17 | Not | Available As Spare Part - Fuel Line 4.76 mm |
| 18 | 414222500 | T-fitting |
| 19 | 414222400 | T-Fitting |
| 20 | 414296900 | Fuel Line 3.18 mm |
| 21 | 415014800 | Air Filter |
| 22 | 709200285 | Grommet This part replaces 570135100. |
| 23 | 414865700 | Fuel Filter |
| 24 | 414931500 | Security Label |
| 25 | 414935900 | SHUT OFF VALVE - Call your local BRP dealership |
| 26 | 517249200 | Fuel Tank Bracket |
| 27 | 415060500 | Primer |
| 29 | 570069700 | LATCH - Call your local BRP dealership This part replaces 570048800. |
| 30 | 210262050 | Hexagonal Head Screw This part replaces 732600005. |
| 31 | 219704407 | Tubing 10 MM 1000MM Long |
| 33 | 219704400 | Was 409901800 Tubing (13 mm) |
| 35 | 414274500 | Circlip |
| 38 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 39 | 561503200 | Female Terminal PACKARD |
| 41 | 414176000 | Open Clamp |
| 42 | 414227300 | Clip |
| 43 | 414814100 | Male Connector |
| 44 | 517182100 | SPRING - Call your local BRP dealership |
| 45 | 512060603 | Throttle Housing This part replaces 572086700. |
| 46 | 293550004 | Dielectric Grease, 150 g This part replaces 413701700. |
| 47 | 707800347 | Grommet This part replaces 570273900. |
| 49 | 414473200 | Screw |
| 50 | 515177362 | Emergency Stop Switch This part replaces 414612700. |
| 51 | 414440800 | Socket Set Screw M8 X 10 |
| 52 | 414438700 | Lever Pin |
| 53 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 54 | 512060214 | Handle Ass'y This part replaces 572085900. |
| 55 | 570045500 | Grommet |
| 56 | 572077900 | INTAKE COVER - Call your local BRP dealership |
| 57 | 414972600 | Air Filter |
| 58 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 59 | 234051600 | Flat Washer M5, Stainless This part replaces 414438900. |
| 60 | 414439000 | Circlip |
| 61 | 512060390 | Plate This part replaces 572086800. |
