| Ref | Part Number | Description |
|---|
| 1 |
0984518 |
GEAR HOUSING & INSERTS This part replaces 0983861. |
| 2 |
0910901 |
INSERT |
| 3 |
0910901 |
INSERT |
| 4 |
0910901 |
INSERT |
| 5 |
0910935 |
INSERT, 3/8-16 |
| 6 |
3852541 |
INSERT, 7/16 -14 This part replaces 0911779. |
| 7 |
3852567 |
INSERT This part replaces 0911858. |
| 8 |
0912137 |
GUIDE, Shift rod |
| 9 |
0911844 |
LINER, Water pump |
| 10 |
0911845 |
COVER, Gear housing |
| 11 |
0912238 |
SCREW, Anchor block |
| 12 |
0983895 |
IMPELLER ASSY., Water pump |
| 13 |
0984745 |
IMPELLER HOUSING This part replaces 0983896. |
| 15 |
0313175 |
O RING, Cover |
| 16 |
0983917 |
GEAR SET ASSY., 21:16 5.8 L |
| 16 |
0983918 |
GEAR SET ASSY., 21:18 |
| 16 |
0983919 |
GEAR SET ASSY., 21:17 |
| 17 |
0911668 |
SHIM, Bearing carrier .010" |
| 17 |
0911669 |
SHIM, Bearing carrier .011" |
| 17 |
0911670 |
SHIM, Bearing carrier .012" |
| 17 |
0911671 |
SHIM, Bearing carrier .013" |
| 17 |
0911672 |
SHIM, Bearing carrier .014" |
| 17 |
0911673 |
SHIM, Bearing carrier .015" |
| 17 |
0911674 |
SHIM, Bearing carrier .016" |
| 17 |
0911675 |
SHIM, Bearing carrier .017" |
| 17 |
0911676 |
SHIM, Bearing carrier .018" |
| 17 |
0911677 |
SHIM, Bearing carrier .019" |
| 18 |
0983825 |
GEAR SET, 21:16, 5.7 L |
| 18 |
0983826 |
GEAR SET, 21:18 |
| 18 |
0983835 |
GEAR SET, 21:17 |
| 19 |
0983877 |
BEARING, Bearing carrier |
| 20 |
0983891 |
BEARING, Pinion, upper |
| 21 |
0983892 |
BEARING, Pinion lower |
| 22 |
0983878 |
BEARING, U-joint shaft |
| 23 |
0911752 |
RETAINER, Nut |
| 24 |
0911753 |
NUT, Pinion |
| 25 |
0911750 |
BEARING CARRIER, Pinion |
| 26 |
0911937 |
NUT, Gear to U-joint |
| 27 |
0912029 |
CENTERING CONE |
| 28 |
0911683 |
BEARING CARRIER, Gear |
| 29 |
0911685 |
SEAL, Bearing carrier |
| 30 |
0911678 |
SHIM, Bearing carrier .003" |
| 30 |
0911679 |
SHIM, Bearing carrier .004" |
| 30 |
0911680 |
SHIM, Bearing carrier .005" |
| 30 |
0911681 |
SHIM, Bearing carrier .010" |
| 31 |
0911697 |
WASHER, Pinion |
| 32 |
0911686 |
O-RING, Adaptor to gear housing |
| 33 |
0911662 |
SHIM Gear position, 0.003" |
| 33 |
0911663 |
SHIM, Gear position .005" |
| 33 |
0911664 |
SHIM, Gear position .007" |
| 33 |
0911665 |
SHIM, Gear position .010" |
| 33 |
0911666 |
SHIM, Gear position .012" |
| 33 |
0911667 |
SHIM, Gear position .015" |
| 34 |
0983880 |
U-JOINT & WATER PUMP SHAFT |
| 36 |
0912213 |
DOUBLE CENTER |
| 37 |
0984264 |
STUB & WATER PUMP SHAFT |
| 39 |
0912212 |
SHAFT, Yoke |
| 40 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 41 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 42 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 43 |
0909316 |
O-RING , Adaptor, small |
| 44 |
0911698 |
GASKET, Adapter to gear hsg |
| 45 |
0911699 |
ADAPTER, Water pump to gear hsg |
| 47 |
3853655 |
SEAL, Water pump adaptor This part replaces 0911701. |
| 48 |
0911702 |
GASKET, Plate to adapter |
| 49 |
0911703 |
GASKET, Water pump |
| 50 |
0911704 |
SEAL, Water pump housing |
| 51 |
0911733 |
GASKET, Plate |
| 52 |
0911734 |
COVER, Water passage |
| 53 |
0911751 |
RETAINER RING, Pinion hsg |
| 54 |
0912362 |
VALVE, Water drain |
| 55 |
3852561 |
PLATE, Thrust, port This part replaces 0911837. |
| 56 |
3852562 |
PLATE, Thrust, starboard This part replaces 0911838. |
| 57 |
3852563 |
SHIM, Thrust plate, 0.015 in. This part replaces 0911839. |
| 58 |
0911848 |
MEDALLION |
| 59 |
3852565 |
O-RING, U-joint This part replaces 0911851. |
| 60 |
0913343 |
INDICATOR PLUG, Oil level This part replaces 0983958. |
| 61 |
0910953 |
RETAINER RING, Thrust plate |
| 62 |
3852568 |
SCREW, Cover This part replaces 0911859. |
| 63 |
0983967 |
COVER, Anchor block |
| 64 |
0911833 |
WASHER, Stud |
| 65 |
3853329 |
LOCKNUT, Transom plate This part replaces 0911835. |
| 66 |
0915840 |
GASKET, Gear housing to pivot This part replaces 0911836. |
| 67 |
0315189 |
GASKET, Oil indicator |
| 68 |
0984461 |
WATER PUMP REPAIR KIT |

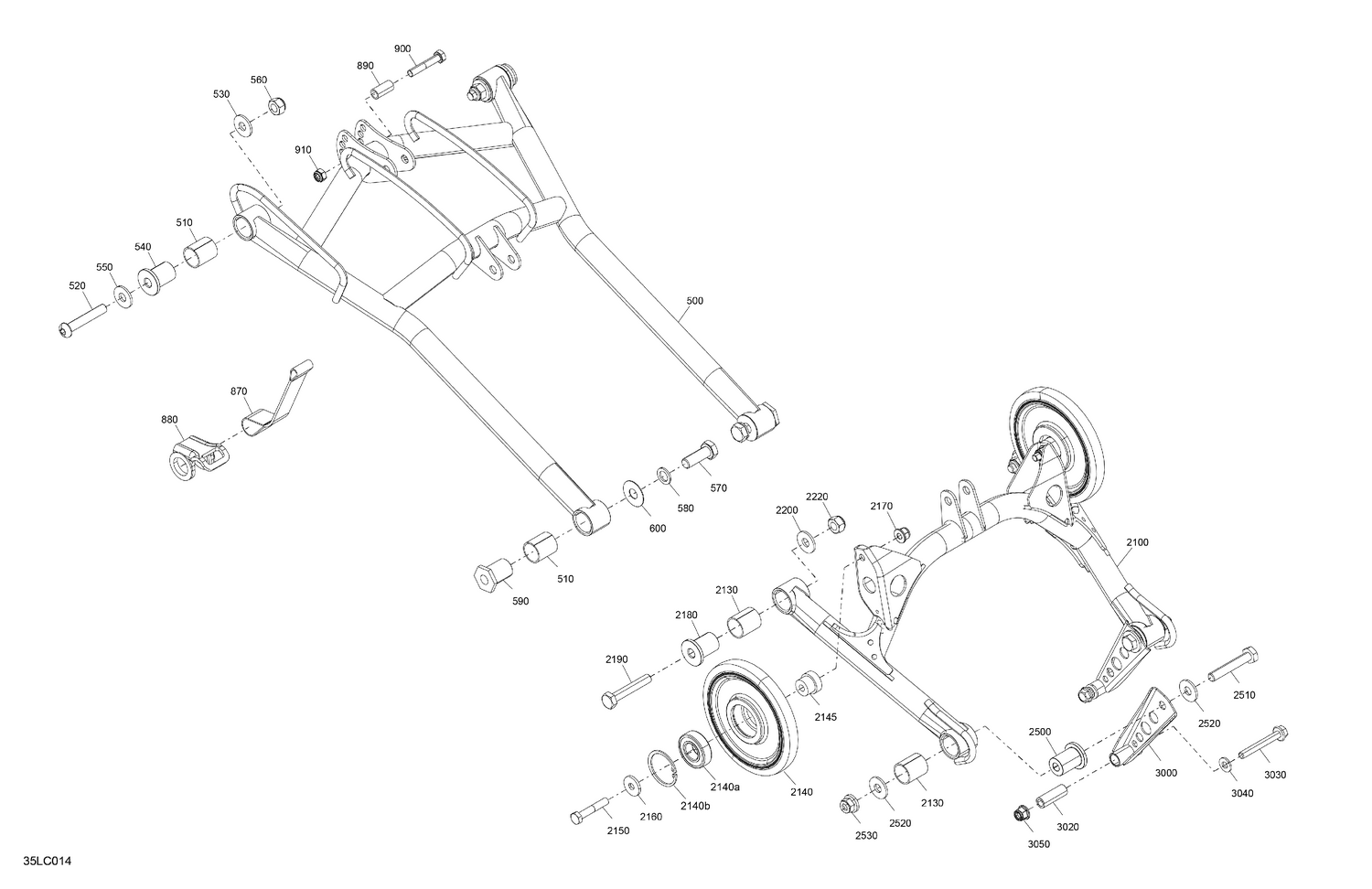

| 500 |
503196100 |
Front Arm |
| 510 |
503191554 |
Bushing |
| 520 |
503194947 |
Screw-socket Bn.hd. M10 X 60 |
| 530 |
503191926 |
Washer |
| 540 |
503190698 |
Axle |
| 550 |
503191926 |
Washer |
| 560 |
233601466 |
Elastic Locking Nut M10 |
| 570 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 580 |
503192491 |
Washer |
| 590 |
503191966 |
Lower Axle |
| 600 |
503190656 |
Washer |
| 870 |
503195777 |
Strap Stopper |
| 880 |
503194867 |
Holder, Limiter Strap |
| 890 |
605455335 |
Sleeve |
| 900 |
207084544 |
Hex. Screw M8 X 45 |
| 910 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 2100 |
503194848 |
Rear Arm |
| 2130 |
503191554 |
Bushing |
| 2140a |
503190396 |
Ball Bearing |
| 2140b |
415129371 |
Retaining Ring |
| 2145 |
605454461 |
Sleeve |
| 2150 |
207084544 |
Hex. Screw M8 X 45 |
| 2160 |
20077 |
M8 Washer |
| 2170 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 2180 |
503190698 |
Axle |
| 2190 |
250000696 |
Hexagonal Screw |
| 2200 |
503191926 |
Washer |
| 2220 |
233601466 |
Elastic Locking Nut M10 |
| 2500 |
503190698 |
Axle |
| 2510 |
250000696 |
Hexagonal Screw |
| 2520 |
503191926 |
Washer |
| 2530 |
233201466 |
Flanged Elastic Nut M10 |
| 3000 |
503194869 |
Rear Swing |
| 3020 |
503194890 |
Pivot Arm Axle |
| 3030 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 3040 |
503192494 |
Washer |
| 0983885 |
0986382 |
GEAR HSG. ASSY., 21:18 This part replaces 0983885. |
| 0983887 |
0986844 |
GEAR HSG. ASSY., 21:17 This part replaces 0983887. |
| 0983888 |
0986381 |
GEAR HSG. ASSY., 21:16, 5.7 L This part replaces 0983888. |
