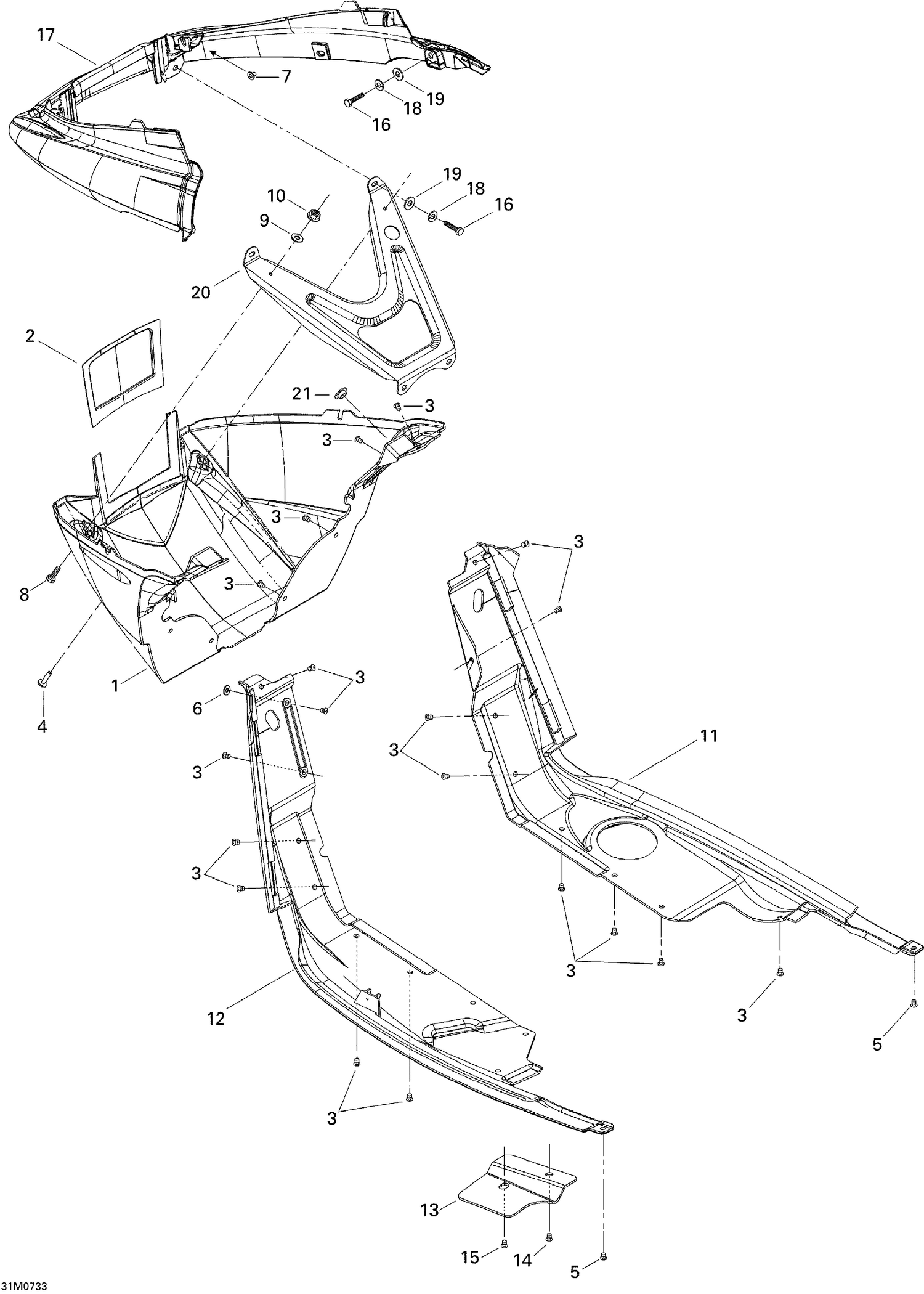

09- Bottom Pan
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006733 | FRONT BOTTOM PAN - Call your local BRP dealership |
| 2 | 502006706 | BOTTOM PAN PLATE - Call your local BRP dealership |
| 3 | 293150104 | Pop Rivet 3/16" |
| 4 | 293150100 | Pop Rivet 3/16" |
| 5 | 293150103 | Pop Rivet 3/16" |
| 6 | 517124300 | Washer |
| 7 | 293100003 | Nut Welded, M6 |
| 8 | 207152544 | HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 9 | 391301600 | Washer |
| 10 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 11 | 502006729 | RH BOTTOM PAN - Call your local BRP dealership |
| 12 | 502006730 | LH BOTTOM PAN - Call your local BRP dealership |
| 13 | 502006799 | Bracket |
| 14 | 390909200 | Avex Rivet |
| 15 | 390410100 | Pop Rivet 3/16” |
| 16 | 207161444 | Hex. Screw M6 X 14 |
| 17 | 502006680 | Bumper, Yellow |
| 18 | 234161471 | Lock Washer M6, Black |
| 19 | 224061121 | Flat Washer |
