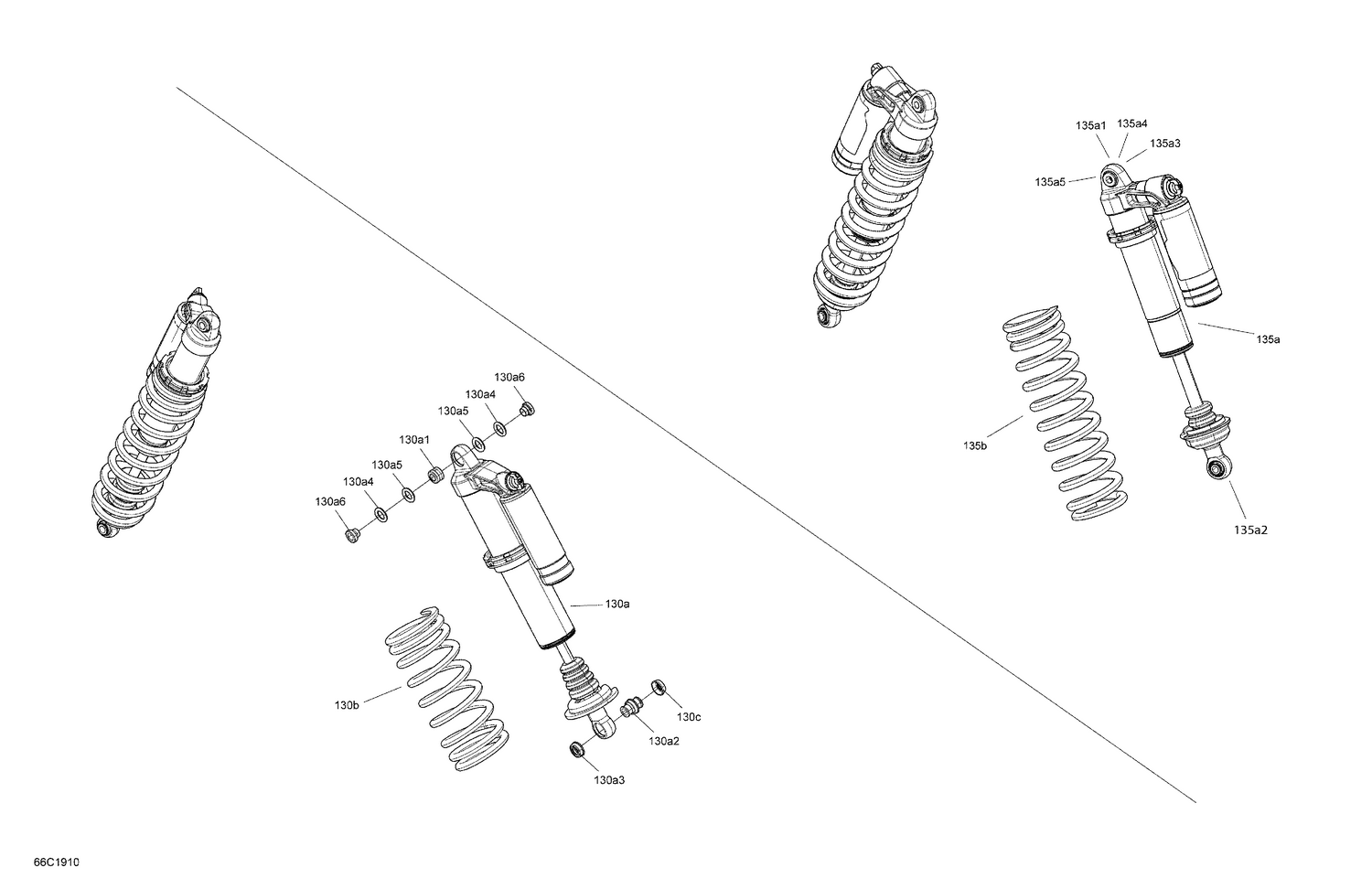

07- Shocks - Packages XMR & XRC
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900329 | Spherical Bearing |
| 130a2 | 715900330 | Spherical Bearing |
| 130a3 | 715900331 | Protector |
| 130a4 | 715900268 | O-Ring Bushing |
| 130a5 | 715900252 | Retaining Ring |
| 130a6 | 715900267 | Internal Bushing |
| 135a1 | 715900337 | Spherical Bearing |
| 135a2 | 706004078 | Ball Joint This part replaces 715900482. |
| 135a3 | 715900338 | O-Ring Bushing |
| 135a4 | 715900480 | Circlip |
| 135a5 | 715900481 | Reducer |
