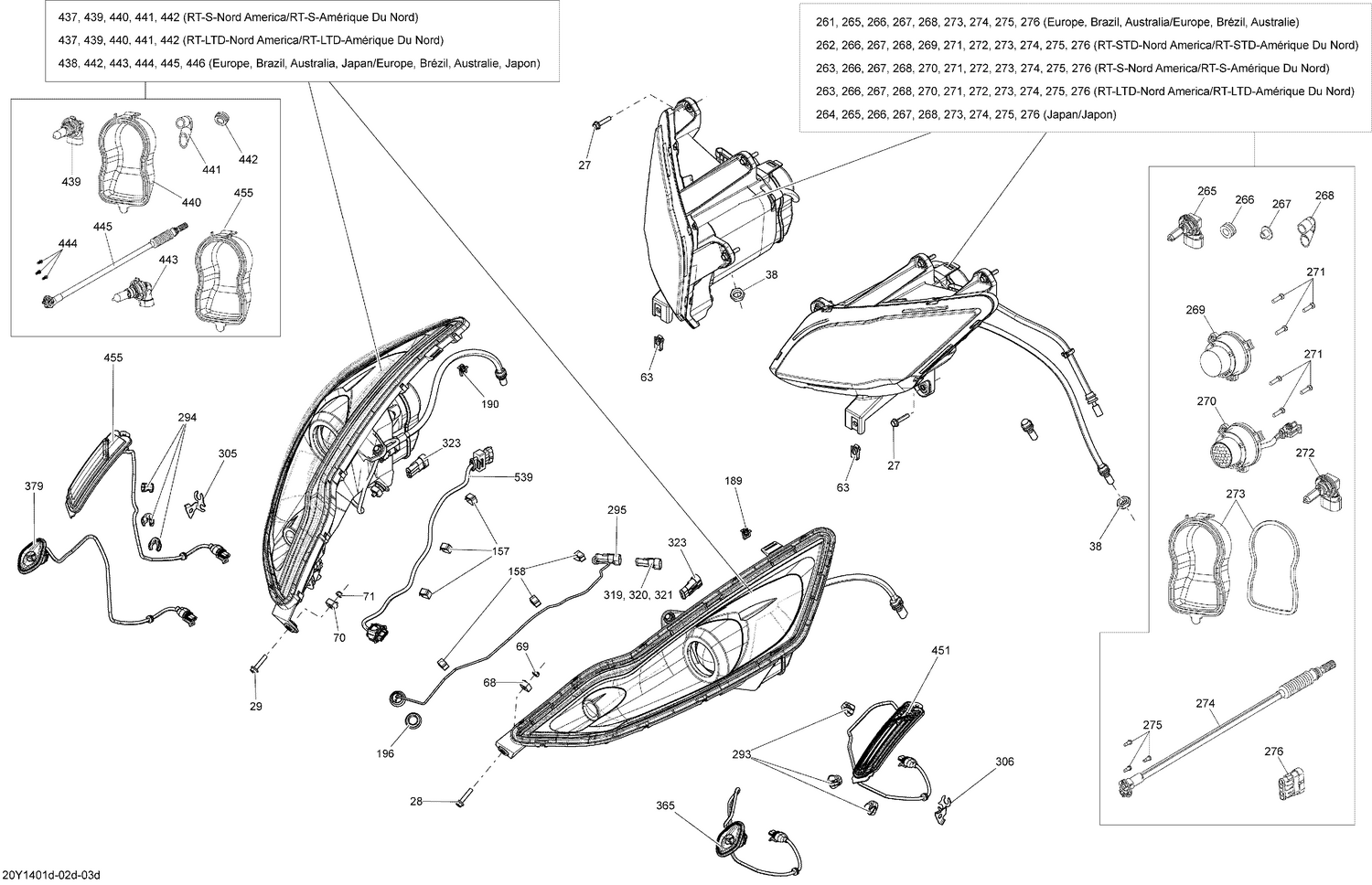

| Ref | Part Number | Description |
|---|
| 27 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 38 |
232170411 |
Hex. Jam Nut M14 |
| 63 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 157 |
414227300 |
Clip |
| 158 |
414227300 |
Clip |
| 196 |
XXX |
Not Available As Spare Parts |
| 262 |
XXX |
Not Available As Spare Parts |
| 265 |
219800140 |
Halogen Bulb H9 65W |
| 266 |
219800100 |
Anti-Vibration Bushing |
| 267 |
219800099 |
Spacer |
| 268 |
219800101 |
Rubber Vent This part replaces 219800133. |
| 269 |
710002031 |
Light Housing |
| 270 |
710003096 |
Auxilary Light, LED |
| 271 |
219800134 |
CHROMED SCREW 4X19 - Call your local BRP dealership |
| 272 |
219800136 |
Halogen Bulb HB3 65W |
| 273 |
219800174 |
Cover With Seal |
| 274 |
219800111 |
Adjustement Cable |
| 275 |
219800110 |
CHROMED SCREW 4X13 - Call your local BRP dealership |
| 276 |
710000779 |
Housing |
| 293 |
710001452 |
WIRE BRACKET - Call your local BRP dealership |
| 294 |
710001452 |
WIRE BRACKET - Call your local BRP dealership |
| 295 |
710001533 |
Trunk Light |
| 305 |
710002018 |
RH WIRE SUPPORT - Call your local BRP dealership |
| 306 |
710002019 |
LH WIRE SUPPORT - Call your local BRP dealership |
| 319 |
XXX |
Not Available As Spare Parts |
| 320 |
XXX |
Not Available As Spare Parts |
| 321 |
XXX |
Not Available As Spare Parts |
| 323 |
XXX |
Not Available As Spare Parts |
| 365 |
XXX |
Not Available As Spare Parts |
| 379 |
XXX |
Not Available As Spare Parts |
| 439 |
219800149 |
Halogen Bulb H8 12V 35W |
| 440 |
219800174 |
Cover With Seal |
| 441 |
219800100 |
Anti-Vibration Bushing |
| 442 |
219800101 |
Rubber Vent |
| 443 |
219800136 |
Halogen Bulb HB3 65W |
| 444 |
219800110 |
CHROMED SCREW 4X13 - Call your local BRP dealership |
| 445 |
219800105 |
Adjustement Cable |
| 446 |
219800174 |
Cover With Seal |
| 451 |
710004032 |
LH Position Light |
| 455 |
710004033 |
RH Position Light |
