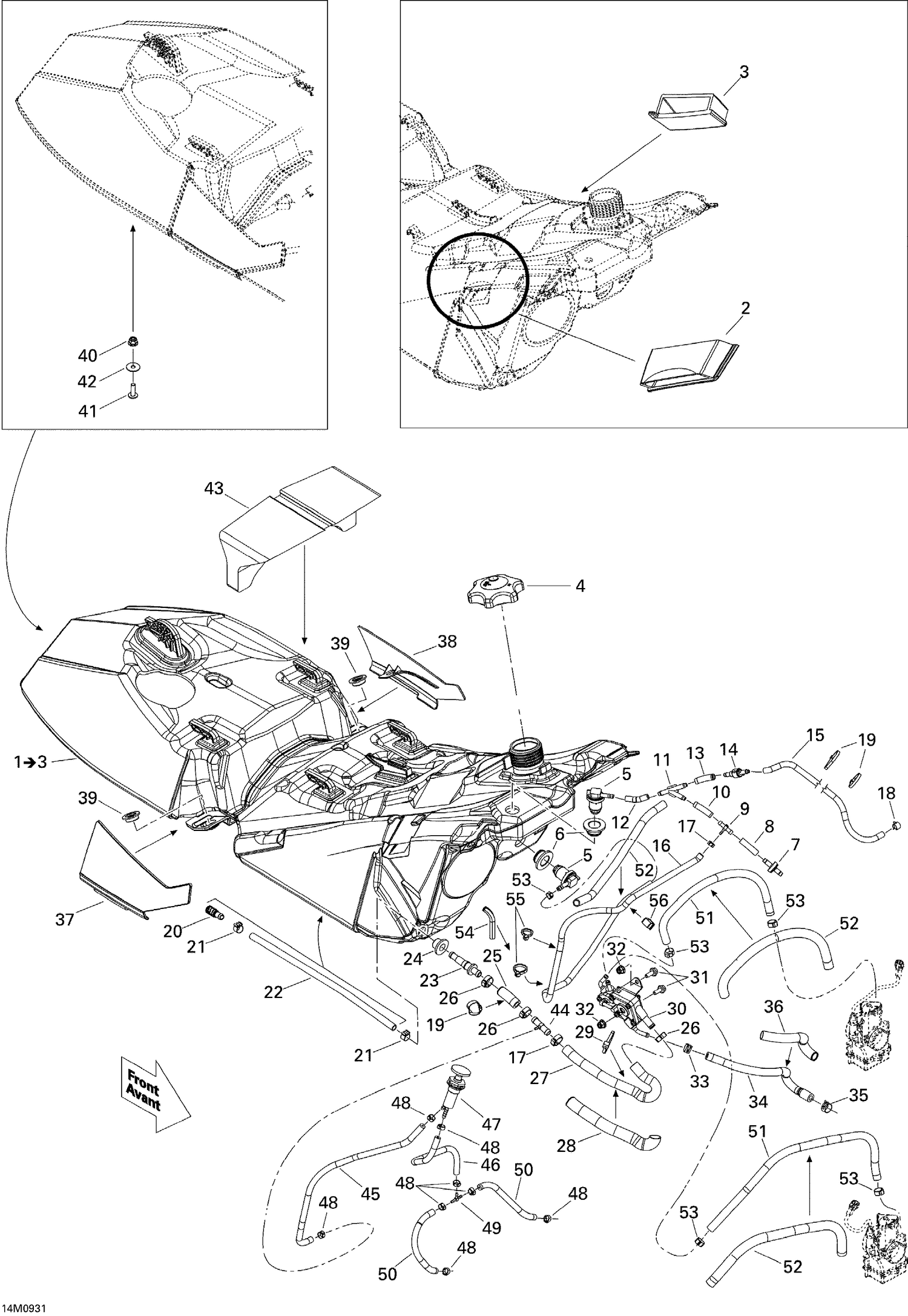

02- Fuel System

02- Fuel System

Parts (54)

RefPart NumberDescription
2 513033471 RH Panel Clip This part replaces 513033307.
3 513033472 LH Panel Clip This part replaces 513033308.
4 513033752 Fuel Tank Cap This part replaces 513033103.
5 513033859 Remote Vent This part replaces 513033517.
6 513033596 Grommet This part replaces 513033189.
7 275500398 Check Valve
8 219704410 Polyurethane Hose 10000Mm Long
9 414729300 T-FITTING - Call your local BRP dealership
10 219704410 Polyurethane Hose 10000Mm Long
11 293710059 Y-Fitting
12 219704410 Polyurethane Hose 10000Mm Long
13 219704410 Polyurethane Hose 10000Mm Long
14 513033469 Check Valve
15 219704410 Polyurethane Hose 10000Mm Long
16 513033565 Hose
17 293650025 Oetiker Gear Clamp
18 414554800 Spring Clamp
19 414115200 Tie-Rap 180 mm
20 414872100 Fuel Filter Strainer
21 513033010 Norma Spring Clamp
22 219704391 Polyurethane Hose 1000mm Long This part replaces 513033332.
23 414872700 Male Connector
24 513033435 Grommet
25 513033444 HOSE 9.53MM ID - 40MM - Call your local BRP dealership
26 293650053 Crimp Clamp
27 513033439 FORMED HOSE - Call your local BRP dealership
28 219704408 Tubing 16 Mm 1000Mm Long
29 414115200 Tie-Rap 180 mm
30 513033420 FUEL PUMP - Call your local BRP dealership
31 207661644 Hex. Flange Screw M6 X 16
32 233261414 Hex. Flange Elastic Nut M6 x 1.0
33 414415200 Spring Clamp
34 513033111 FORMED HOSE - Call your local BRP dealership
35 513033029 Universal Spring Clamp
36 219704400 Was 409901800 Tubing (13 mm)
37 513033418 RH Cap
38 513033419 LH Cap
39 513033326 Shoulder Bushing
40 233261414 Hex. Flange Elastic Nut M6 x 1.0
41 250000722 Torx Screw M6 X 20 This part replaces 250000128.
42 224060201 Flat Washer
43 513033528 FOAM - Call your local BRP dealership
44 415119300 T-Fitting
45 709000665 HOSE - Call your local BRP dealership This part replaces 513033423.
46 709000665 HOSE - Call your local BRP dealership This part replaces 513033423.
47 513033441 Primer
48 293650043 Oetiker Gear Clamp
49 414222400 T-Fitting
50 709000665 HOSE - Call your local BRP dealership This part replaces 513033423.
51 513033448 Hose
52 219704400 Was 409901800 Tubing (13 mm)
53 293650025 Oetiker Gear Clamp
54 219704405 TRIM 30000MM LONG - Call your local BRP dealership
55 293750002 Tie Wrap 142 mm
