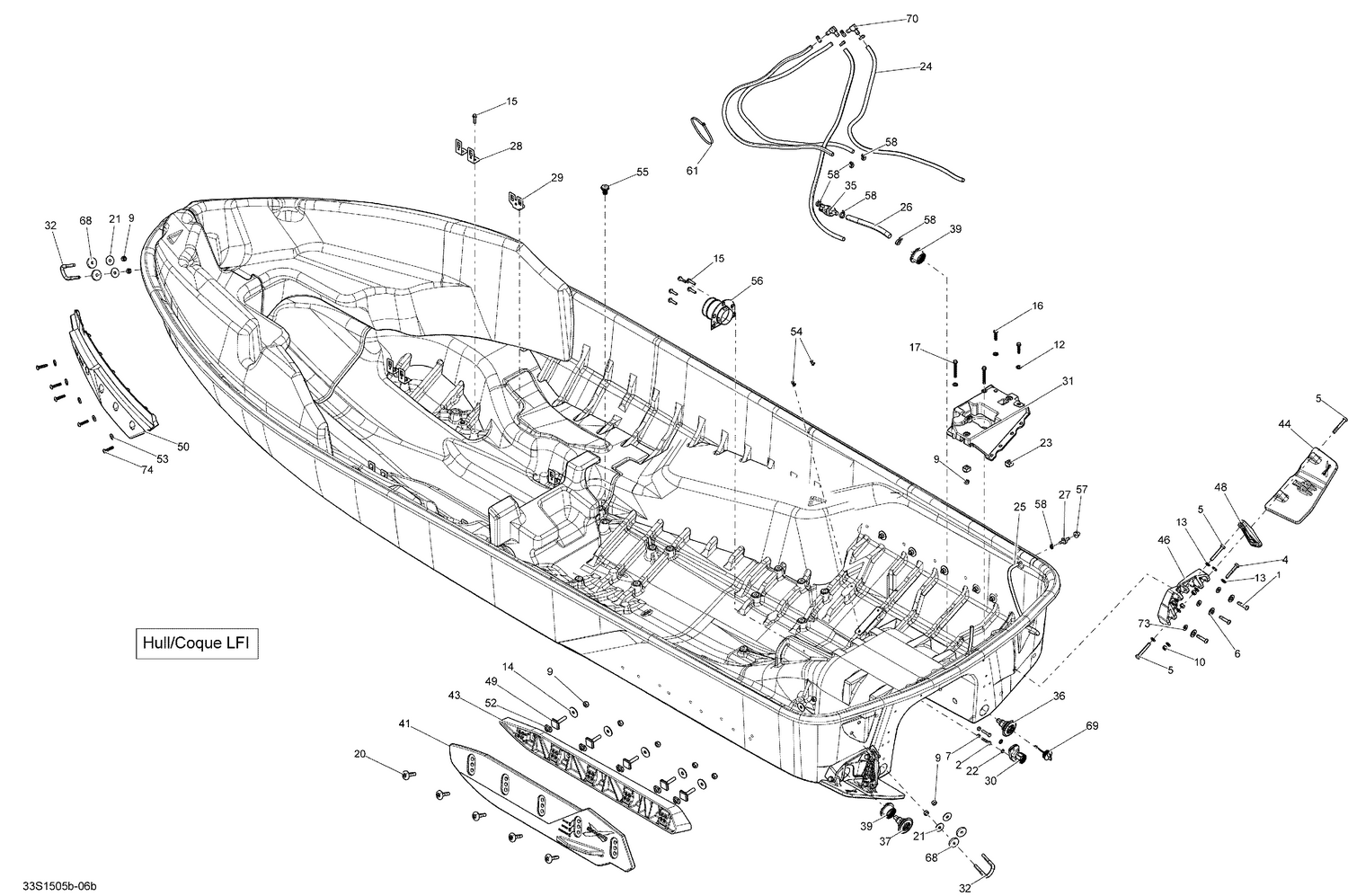

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
207063060 |
Hex. Screw M6 X 30 |
| 4 |
XXX |
Not Available As Spare Parts |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
232561200 |
Brass Elastic Stop Nut M6 |
| 9 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 10 |
XXX |
Not Available As Spare Parts |
| 12 |
234080600 |
Flat Washer M8, Stainless |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
234082600 |
Flat Washer 8 mm, Stainless |
| 15 |
243162560 |
Hex. Flange Screw M6.81 X 25, Plastite |
| 16 |
243163060 |
Hex. Flange Screw M6.81 X 30 |
| 17 |
243165560 |
Hex. Flange Screw M6.81 X 55 |
| 20 |
250000994 |
Torx-Head Screw M8 X 35 This part replaces 250000572. |
| 21 |
250200175 |
Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 22 |
250200114 |
Sealing Washer |
| 23 |
269501943 |
Elastic Nut Housing M8 |
| 24 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 25 |
275500446 |
HOSE 6 MM - Call your local BRP dealership |
| 26 |
219704356 |
Was 275500008 Hose 12 mm |
| 27 |
275500499 |
CHECK VALVE - Call your local BRP dealership |
| 28 |
275500743 |
STRAP CLIP 90 - Call your local BRP dealership |
| 29 |
275500798 |
Double Strap Clip 90° |
| 30 |
277001881 |
Cable Adaptor Ass'y |
| 31 |
278002343 |
Battery Base Ass'y |
| 32 |
292000933 |
U-Clamp |
| 35 |
292001310 |
Bailer Ass'y |
| 36 |
292001315 |
Drain Neck Ass'y |
| 39 |
292001371 |
Bushing |
| 41 |
292001871 |
RH Sponson |
| 41 |
292001872 |
Sponson LH |
| 43 |
292001873 |
RH Spacer Sponson |
| 43 |
292001874 |
Spacer Sponson LH |
| 44 |
XXX |
Not Available As Spare Parts |
| 46 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
292001471 |
Square Head Stud |
| 50 |
XXX |
Not Available As Spare Parts |
| 52 |
292001503 |
Push Nut |
| 53 |
XXX |
Not Available As Spare Parts |
| 54 |
293150037 |
Avdel Rivet 3/16" |
| 55 |
293450290 |
INSERT CAPUCHON M8 - Call your local BRP dealership |
| 56 |
293450306 |
HULL INSERT - Call your local BRP dealership |
| 57 |
293720029 |
Grommet |
| 58 |
293750001 |
Tie Wrap 94 mm |
| 61 |
293750008 |
Tie Wrap 368 mm |
| 68 |
293830037 |
Rubber Washer |
| 69 |
292002024 |
Plug Drain Ass'y This part replaces 292001352. |
| 70 |
293710117 |
ELBOW FITTING 90 - Call your local BRP dealership |
| 73 |
XXX |
Not Available As Spare Parts |
