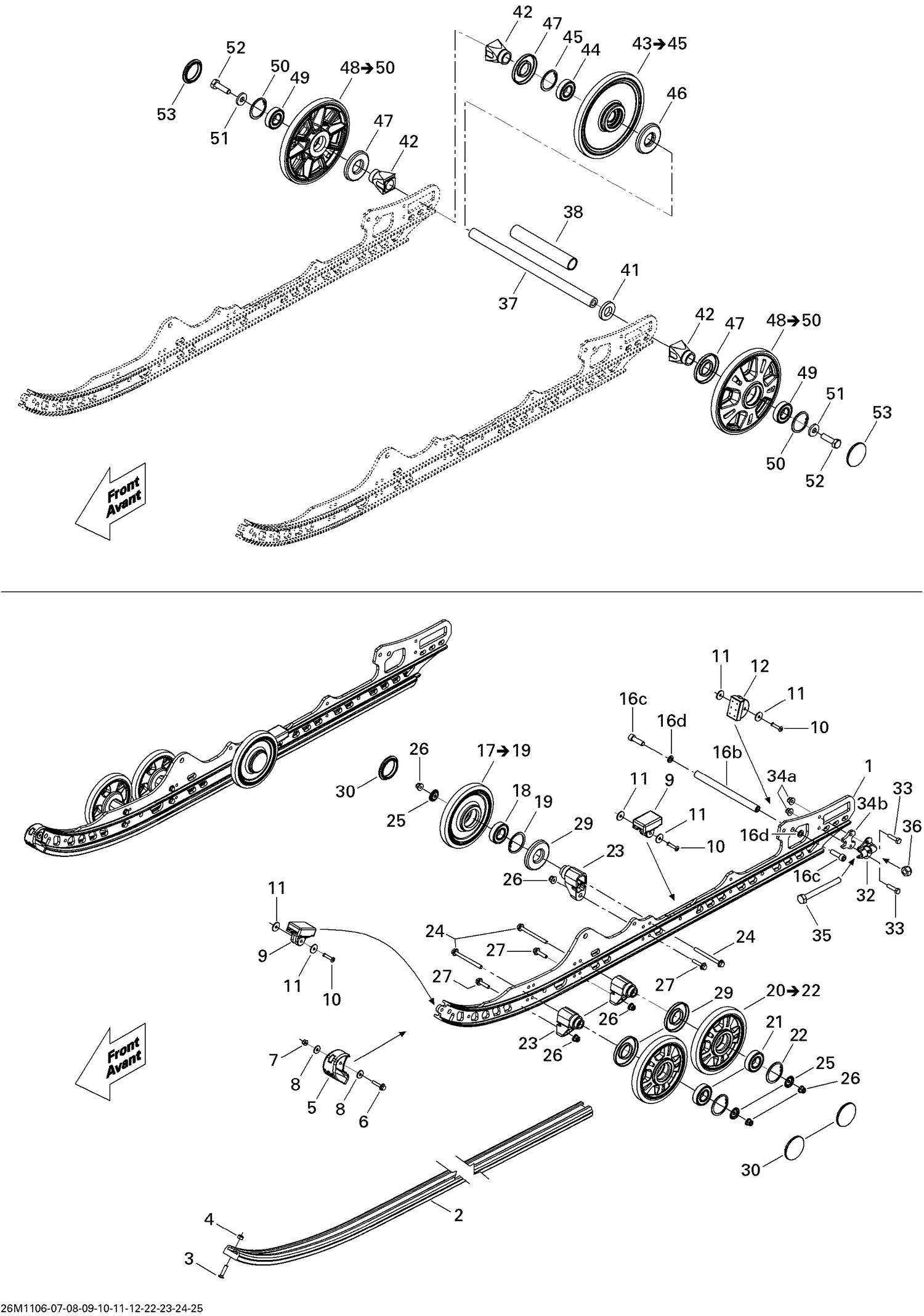

08- Rear Suspension
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192318 | RAIL_SUSPENSION 137 - Call your local BRP dealership |
| 2 | 503191306 | Black, Slider Shoe 137'' |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503191137 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 391301600 | Washer |
| 9 | 503190576 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 12 | 503191291 | Rubber Stopper |
| 16b | 503191260 | Axle Strap |
| 16c | 250000478 | SOCKET SCREW M10 X 35 - Call your local BRP dealership |
| 16d | 503192496 | Washer |
| 18 | 503190396 | Ball Bearing |
| 19 | 415129371 | Retaining Ring |
| 21 | 503190396 | Ball Bearing |
| 22 | 415129371 | Retaining Ring |
| 23 | 503193894 | Casted Support This part replaces 503192793. |
| 24 | 250001027 | Hex. Flange Screw M6 X 70 This part replaces 250000475. |
| 25 | 503191820 | Wheel Cup M6 |
| 26 | 250100130 | ELASTIC FLANGE NUT M6 - Call your local BRP dealership |
| 27 | 207662556 | Hex. Flange Screw M6 X 25 This part replaces 250000476. |
| 29 | 503190434 | Labyrinth Seal |
| 30 | 570063600 | Wheel Cap |
| 32 | 503192583 | Tensioner This part replaces 503192814. |
| 33 | 250000480 | Hex Cap Screw DIN.931 |
| 34a | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 34b | 503193250 | Spacer This part replaces 503190379. |
| 35 | 250000481 | HEX. SCREW CAP FULL THREAD M10 X 100 - Call your local BRP dealership |
| 36 | 250100132 | ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 37 | 503190429 | Rear Axle |
| 38 | 503196317 | Spacer This part replaces 503190430. |
| 41 | 503190432 | Washer |
| 42 | 503190428 | Rear Wheel Spacer |
| 44 | 503190396 | Ball Bearing |
| 45 | 415129371 | Retaining Ring |
| 46 | 503190682 | Labyrinth Seal |
| 47 | 503190434 | Labyrinth Seal |
| 49 | 503190396 | Ball Bearing |
| 50 | 415129371 | Retaining Ring |
| 51 | 503190439 | Washer |
| 52 | 250000019 | Hex. Screw With Nylon |
