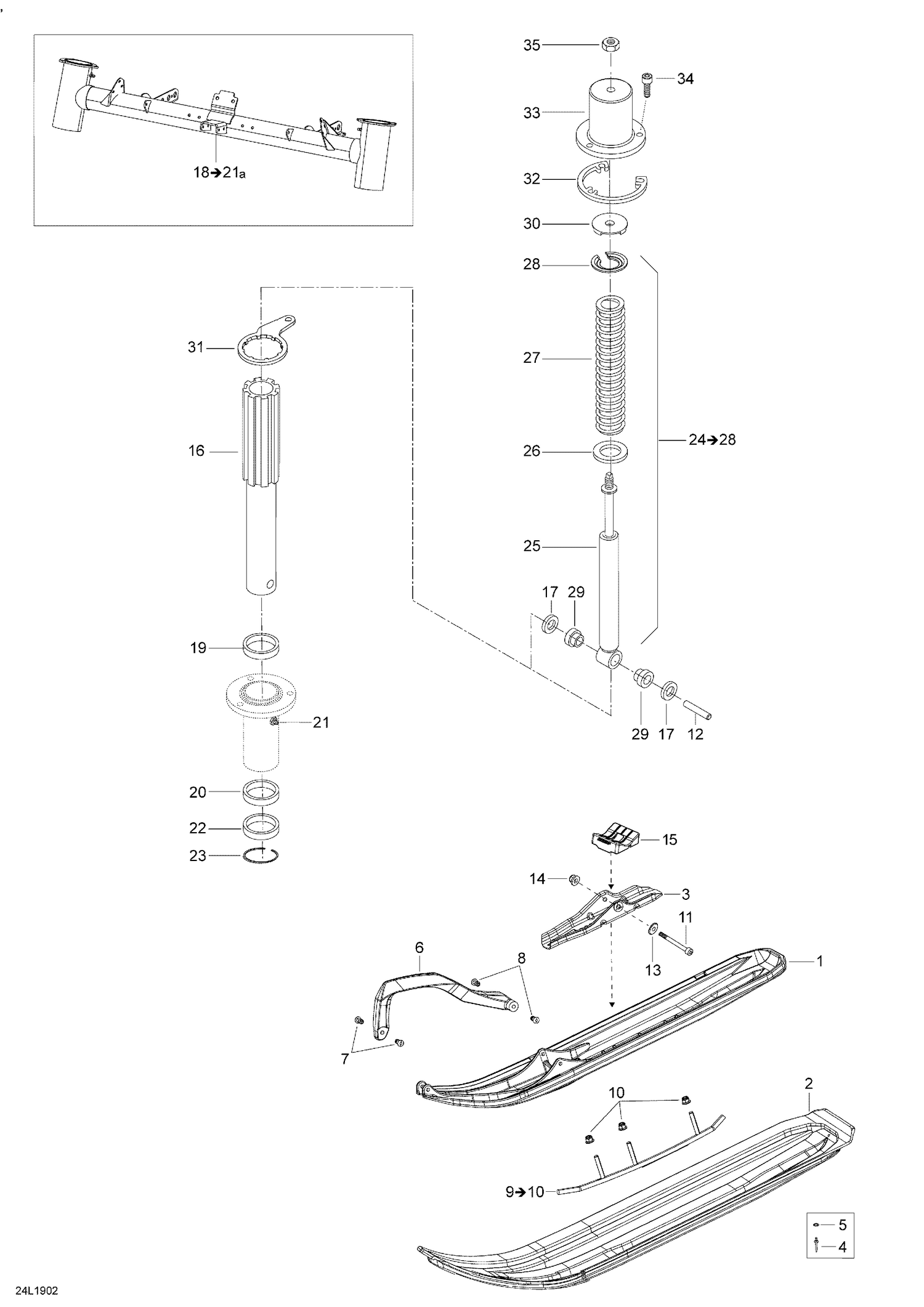

07- Front Suspension And Ski - 69 YETI - 600 E-TEC

Ref	Part Number	Description
1	505074262	Black, Ski Blade Xc
2	506152574	Ski Liner Deep Blade Lh 6 Mm
2	506152575	Ski Liner Deep Blade Rh 6 Mm
4	293150206	Pop Rivet
5	234061410	Flat Washer 6 mm
6	505073108	Plastic handle, White BLADE
7	505071812	Retainer 17mm long
8	505072133	Retainer 23mm Long
9	860202821	Round Carbide Runner Kit This part replaces 860200959.
10	233201414	Hex. Flanged Elastic Nut M10
11	250000703	Hex. Screw M10 X 130
12	505073209	Ski Axle
13	503192496	Washer
14	233201464	Hex. Elast. Flanged Nut M10 x 1.5
15	505072594	Ski Stopper
16	505073200	Ski Leg
17	505072579	Spacer
19	414803100	Ylälaakeri 414 8031 00
20	414803200	Alalaakeri 414 8032 00
21	408200700	Grease Fitting
21a	293450275	Insert
22	505072696	Seal Oil
23	505072698	Circlip
24	505073302	Front Shock Ass'y
25	505073046	Front Shock
26	505072578	Washer
27	505073204	Black, Spring
28	505072619	Spring Stopper
29	572034500	Muoviholkki
30	605354835	Rubber Bumber
31	505073823	Steering Arm
32	505073983	Spacer
33	505072874	Suspension Cover LH
33	505072875	Suspension Cover RH
34	205082044	Socket Head Screw M8 X 20
