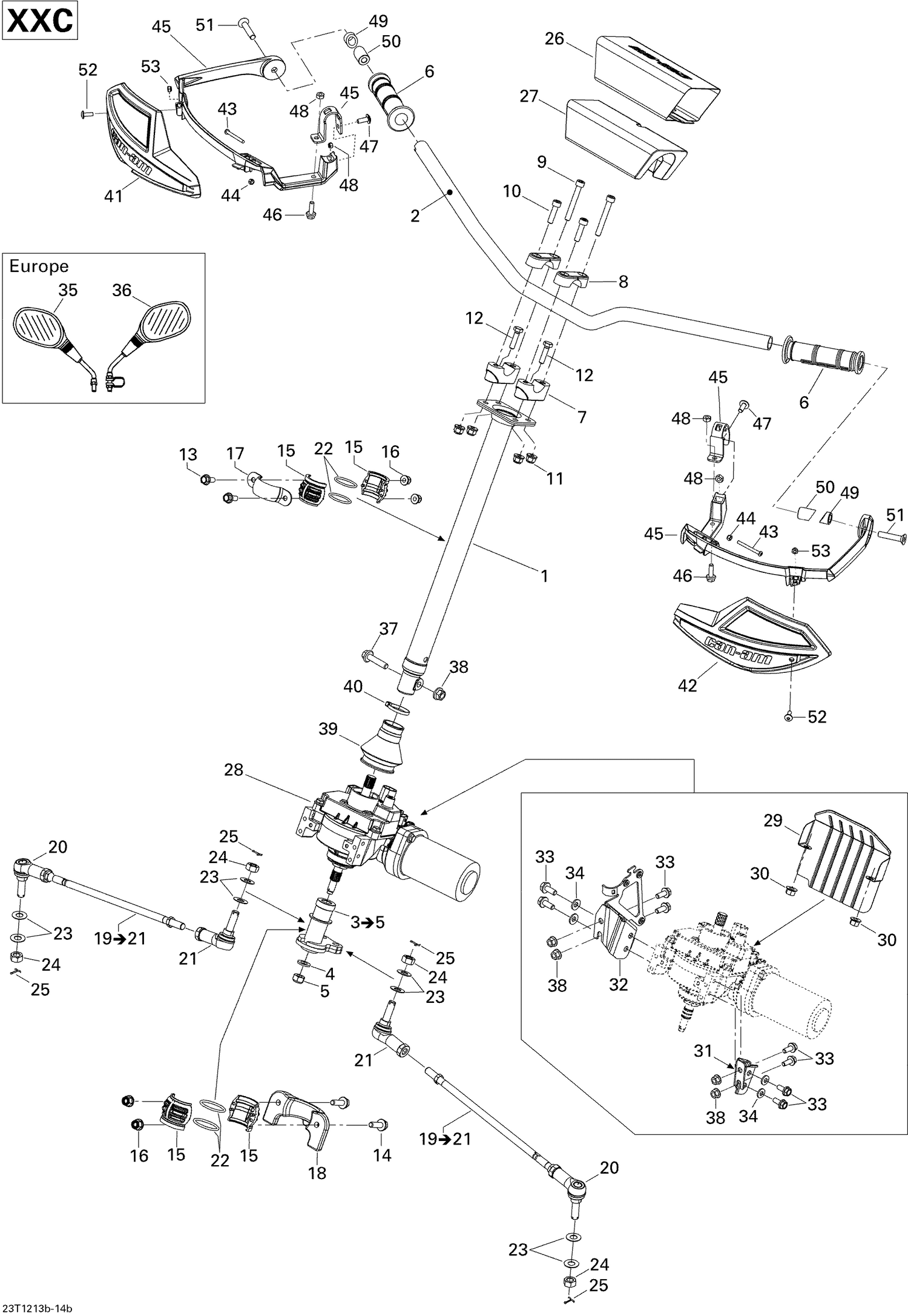

07- Steering XXC
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 703501137 | Kit Tube-Main. This part replaces 709400703. |
| 2 | 709400513 | Aluminum Handle Bar |
| 4 | 706200281 | Hardened Washer This part replaces 250200086. |
| 5 | 250000047 | Hex. Flange Elastic Nut M12 |
| 6 | 709400493 | Handle Grip |
| 7 | 709402750 | Lower Mounting Clamp This part replaces 709400497. |
| 8 | 709400496 | Support |
| 9 | 205086060 | Socket Head Screw M8 X 60 |
| 10 | 205083060 | Socket Screw M8 X 30 |
| 11 | 233281416 | Hex. Elastic Flange Nut M8 |
| 12 | 207183060 | Hex. Screw M8 X 30 |
| 13 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 14 | 207682544 | Hex. Flange Screw M8 X 25 |
| 15 | 709400783 | Spherical Half Bushing |
| 16 | 233281414 | Hex. Flange Elastic Nut M8 |
| 17 | 709400827 | Upper Column Attachment |
| 18 | 709401428 | Column Attachment This part replaces 709400912. |
| 20 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 21 | 709402302 | RH Ball Joint This part replaces 709400490. |
| 22 | 293300068 | O-Ring |
| 23 | 706200281 | Hardened Washer |
| 24 | 250100099 | Nut M12 |
| 25 | 211400013 | Cotter Pin |
| 26 | 709402414 | Couvercle B-190 This part replaces 709400519. |
| 27 | 709400422 | Foam |
| 28 | 709401608 | Power Steering This part replaces 709401071. |
| 29 | 709401005 | HEAT DEFLECTOR - Call your local BRP dealership |
| 30 | 233081416 | Hex. Flange Nut M8 |
| 31 | 709400848 | Power Steering Module Bracket |
| 32 | 709400994 | RH STEERING BRACKET - Call your local BRP dealership |
| 33 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 34 | 234281474 | Conical Spring Washer M8 |
| 37 | 207683544 | Hex. Flange Screw M8 X 35 |
| 38 | 233081416 | Hex. Flange Nut M8 |
| 39 | 709400674 | Bellows |
| 40 | 414115200 | Tie-Rap 180 mm |
| 41 | 709400530 | RH AIR DEFLECTOR - Call your local BRP dealership |
| 42 | 709400531 | LH AIR DEFLECTOR - Call your local BRP dealership |
| 43 | 205444086 | Socket Head Screw M4 X 40 |
| 44 | 232541414 | Elastic Stop Nut M4 |
| 45 | 715001378 | Air Deflector Support Kit This part replaces 715000545. |
| 46 | 207662044 | Hex. Flange Screw M6 X 20 |
| 47 | 250000223 | Torx Screw M6 X 16 |
| 48 | 232561600 | Hex. Elastic Stop Nut M6 |
| 49 | 709400161 | Small Bracket |
| 50 | 709400162 | Large Bracket |
| 51 | 205384034 | Socket Head Screw |
| 52 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
