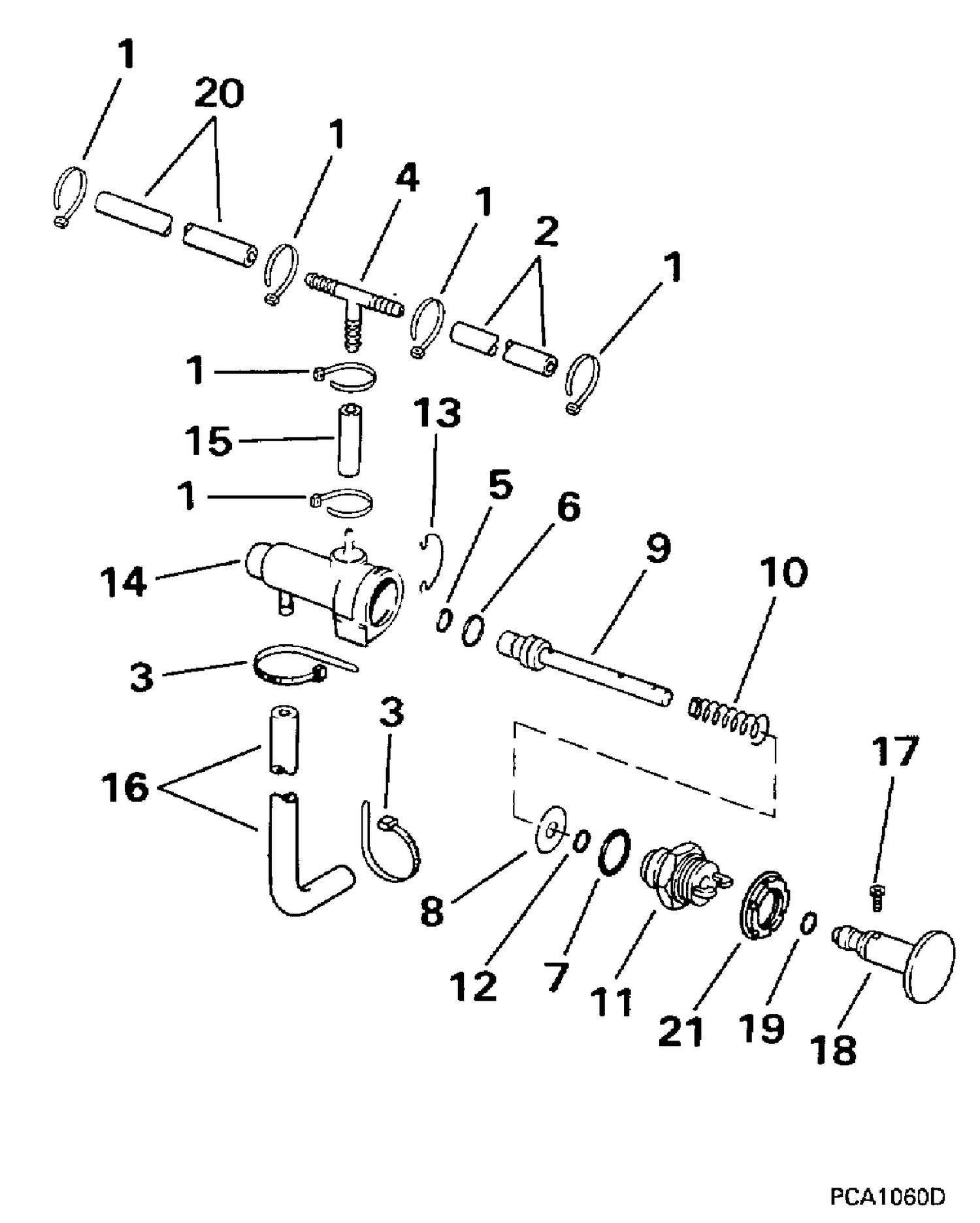

PRIMER PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | HOSE, | Manifold to tee, 2 1/4 in. (60mm) |
| 3 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 4 | 0325569 | T, amorçage |
| 15 | HOSE, | Primer to tee, 4 in. (102mm) |
| 16 | HOSE, | Carburetor to primer, 7 1/2 in. (192mm) |
| 17 | 0329054 | SCREW |
| 18 | 0334365 | KNOB |
| 19 | 0330992 | JOINT TORIQUE, bouton |
| 20 | HOSE, | Tee to carb., 8 in. (200mm) |
| 0432142 | 5007336 | Kit Ay This part replaces 0432142. |
