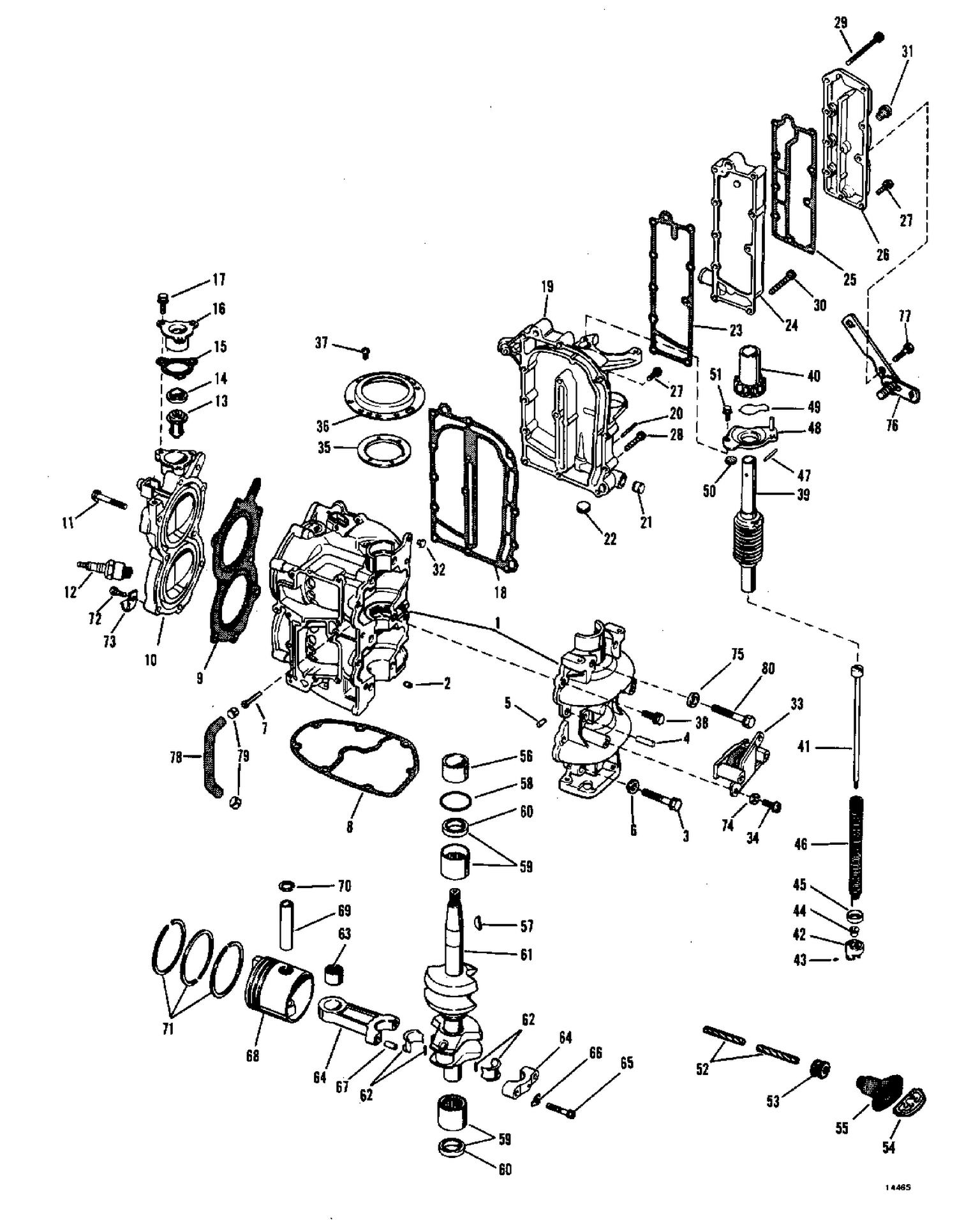

| Ref | Part Number | Description |
|---|
| 1 |
0382805 |
CYLINDER & C'CASE ASSY |
| 2 |
0302037 |
DOWEL, Bearing |
| 3 |
0304055 |
SCREW |
| 6 |
0306453 |
LOCKWASHER, Fuel pump |
| 7 |
0314197 |
NIPPLE |
| 8 |
0309771 |
GASKET, Exh. hsg. to cyl. |
| 9 |
0309612 |
GASKET, Clylinder head |
| 10 |
0309609 |
CYLINDER HEAD |
| 11 |
0308728 |
SCREW |
| 12 |
0378101 |
SPARK PLUB, Champion j4j |
| 12 |
0378320 |
SPARK PLUG, AC - M42K |
| 12 |
0378368 |
SPARK PLUG, Auto - Lite A21X |
| 13 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 14 |
0310058 |
GASKET, Thermostat |
| 15 |
0309580 |
GASKET, Thermostat hsg |
| 16 |
0309581 |
CAP, Thermostat |
| 17 |
0300646 |
VIS, ancrage |
| 18 |
0309709 |
CASKET, Exh. cover to cyl. |
| 19 |
0379190 |
EXHAUST COVER ASSY |
| 20 |
0309686 |
ROLL PIN |
| 21 |
0309778 |
PLUG, Exhaust cover |
| 22 |
0309797 |
SCREW PLUG, Cover |
| 23 |
0309710 |
GASKET, Intermediate cover |
| 24 |
0309795 |
COVER, Exhaust, intermediate |
| 25 |
0309981 |
GASKET, Outer cover |
| 26 |
0381829 |
COVER, Exhaust outer |
| 27 |
0311750 |
SCREW, Cover 11/16" long |
| 28 |
0311751 |
SCREW, Block to bracket |
| 29 |
0311753 |
SCREW, Cover 2-3/8" long |
| 30 |
0311752 |
SCREW, Cover 1-5/8" long |
| 31 |
0309767 |
BUMPER, Cover |
| 32 |
0306248 |
BUMBER, High speed stop |
| 33 |
0380963 |
MOUNT, Rubber, upper front |
| 34 |
0300646 |
VIS, ancrage |
| 35 |
0303277 |
RETAINING RING |
| 36 |
0303278 |
SUPORT, Armature plate |
| 37 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 39 |
0379164 |
SPOOL & SLEEVE,Rope |
| 39 |
0383118 |
SPOOL & SLEEVE ASSY |
| 40 |
0384597 |
PINION & SCREW ASSY This part replaces 0309702. |
| 41 |
0314586 |
RETAINER, Spring |
| 42 |
0309694 |
SPRING RETAINER,Lower |
| 42 |
0314588 |
RETAINER, Spring |
| 43 |
0303245 |
ALLEN SCREW This part replaces 0309687. |
| 44 |
0314585 |
BUSHING, Retainer |
| 45 |
0309689 |
BEARING, Outer |
| 46 |
0314587 |
MAIN SPRING STARTER |
| 47 |
0309686 |
ROLL PIN |
| 48 |
0309708 |
BEARING HEAD |
| 49 |
0309736 |
SPRING |
| 50 |
0309696 |
GASKET, Bearing head |
| 51 |
0316530 |
ROPE This part replaces 0309745. |
| 52 |
0203819 |
ROPE, Cut to 65-1/4 |
| 53 |
3111462 |
EYELET,Rope to cover |
| 54 |
0389713 |
ANCHOR, Rope to handle This part replaces 0312989. |
| 55 |
0313154 |
HANDLE |
| 56 |
0510584 |
CAM, Magneto |
| 57 |
0120395 |
KEY |
| 59 |
0379210 |
NEEDLE BEARING ASSY |
| 60 |
0309733 |
SEAL |
| 61 |
0314227 |
CRANKSHAFT |
| 62 |
0382835 |
LINERS & NEEDLES, Rod & brg |
| 63 |
0379135 |
BEARING, Wrist pin |
| 64 |
0380017 |
CONNECTING ROD ASSY |
| 65 |
0309576 |
SCREW, Connecting rod |
| 66 |
0309577 |
LOCK PLATE |
| 67 |
0551748 |
DOWEL, Cap screw |
| 68 |
0379369 |
PISTON & DOWEL, .040 o.s. |
| 68 |
0379372 |
PISTON & DOWEL, .020 o.s. |
| 68 |
0385865 |
PISTON ASSY., Std This part replaces 0379134. |
| 69 |
0309573 |
WRIST PIN |
| 70 |
0302577 |
RETAINING RING |
| 71 |
0379360 |
PISTON RING SET, Standard |
| 71 |
0379371 |
PISTON RING SET, .040 O.S. |
| 71 |
0379373 |
PISTON RING SET, .020 O.S. |
| 72 |
0306831 |
BATTERY CABLE ASSY. |
| 73 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 74 |
0308134 |
LOCKWASHER |
| 75 |
0306453 |
LOCKWASHER, Fuel pump |
| 76 |
0381825 |
VIBRATION DAMPENER ASSEMBLY, Port |
| 77 |
0312903 |
SCREW, Dampener to cover |
| 78 |
0308506 |
HOSE, Oil line This part replaces 0314173. |
| 79 |
0303473 |
CLAMP, Hose |
| 0380019 |
0380019 |
STARTER ASSEMBLY |
| 0382122 |
0382122 |
STARTER ASSEMBLY |
| 0382809 |
0382809 |
GASKET SET, Powerhead, less cyl. hd. gasket |
