Home / BRP / ELECTRIC / 2024 / 004 - RXP Series / 001 - RXP X 325 - North America, 2024 / North America - RXP X 325 - 21RC - X package - Fiery Red Metallic,2024 00021RC00 / 07- Body - Seat

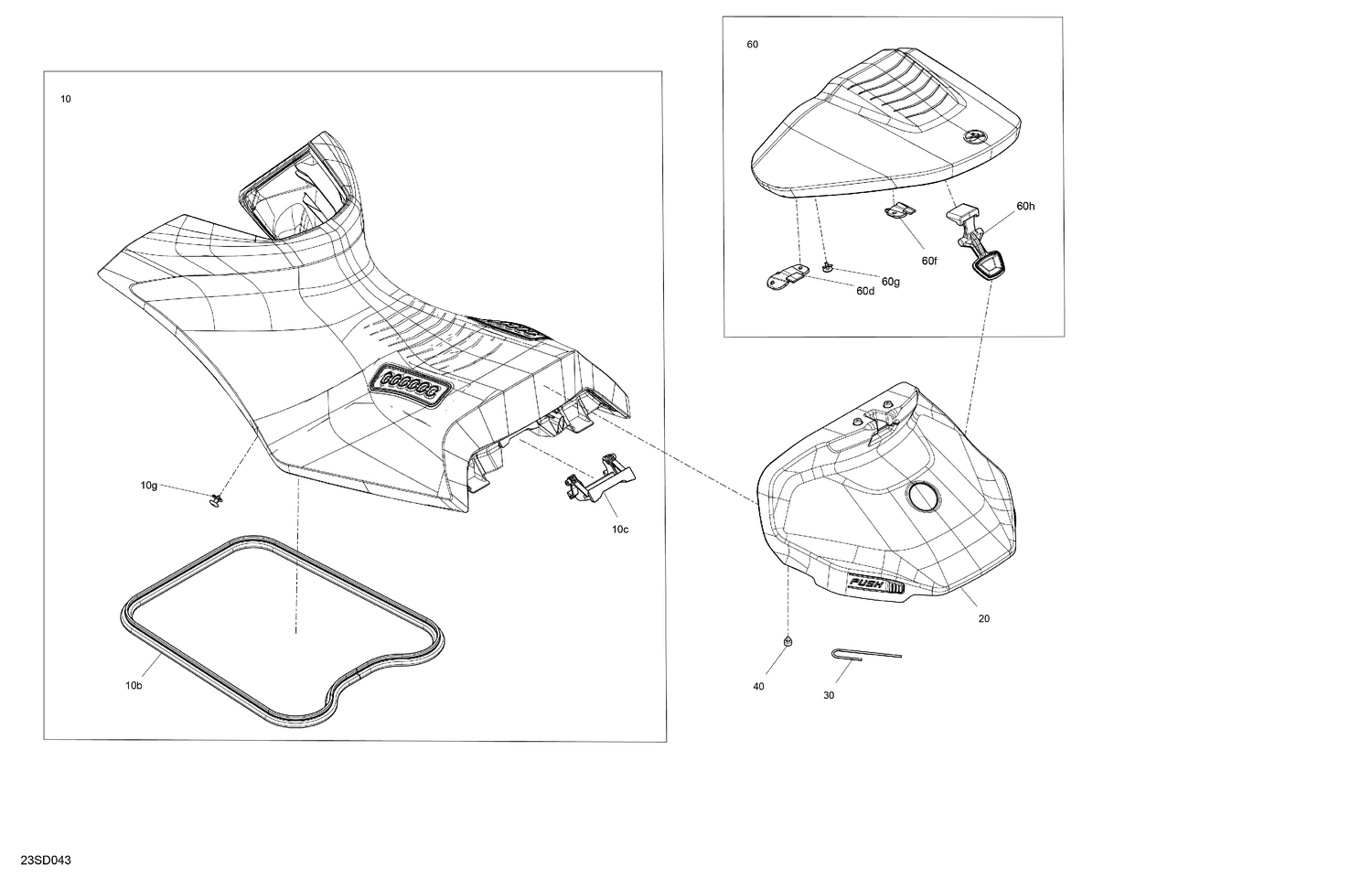

07- Body - Seat

07- Body - Seat

Parts (9)

RefPart NumberDescription
10b 219704366 Was 293200062 Seal
10c 269003103 Seat Latch
10g 293150067 Rivet
20 269003475 Molded Base Support
30 269003083 Spring Latch
40 293830005 Rubber Bumper
60d 269003503 LH Retaining Hook
60f 269003505 RH Retaining Hook
60g 293150222 Pop Rivet 3/16"
