Home / BRP / STERN DRIVE / 1988 / 5 / 502AMLGDP 1988 / EXHAUST & COOLING

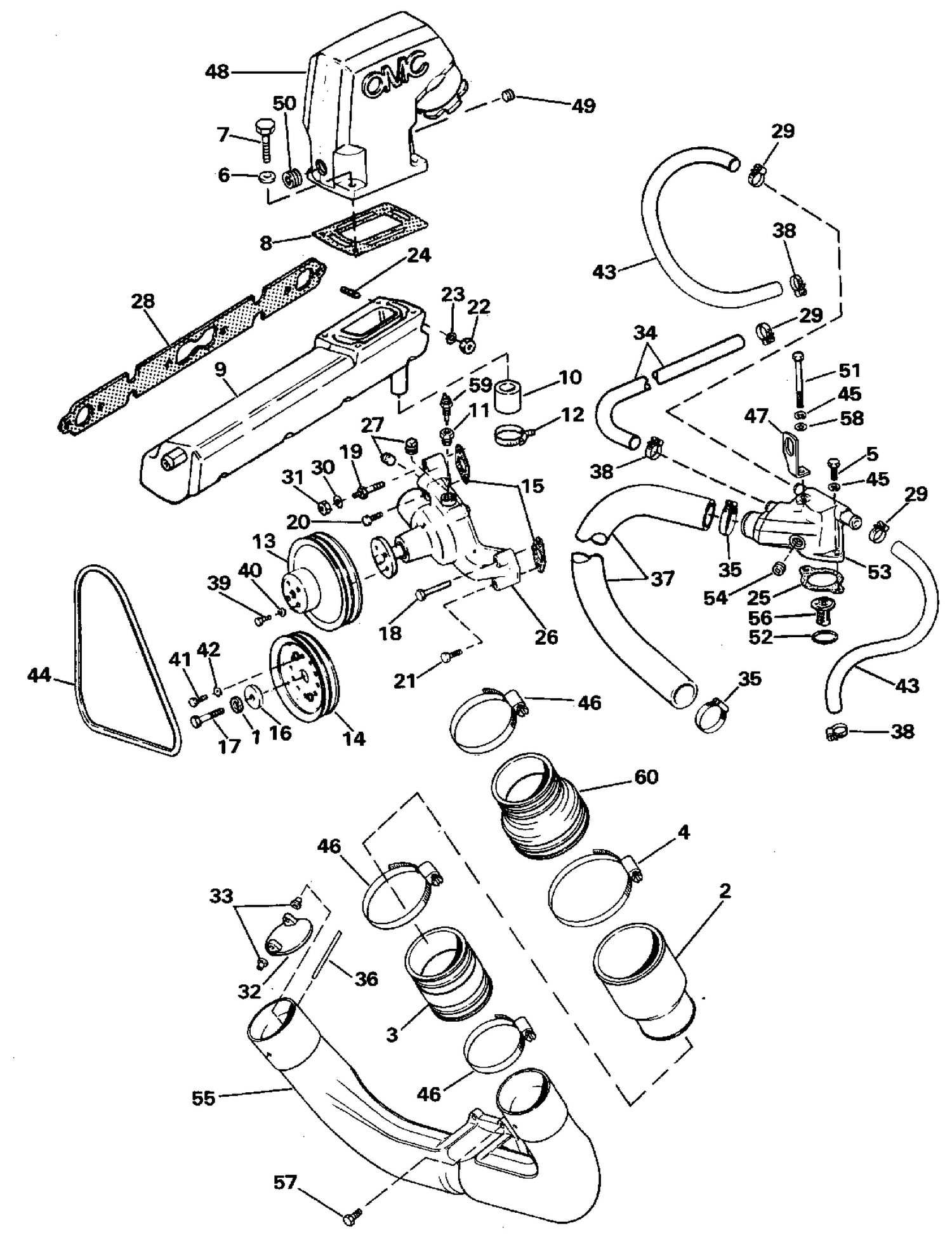

EXHAUST & COOLING

EXHAUST & COOLING

Parts (54)

RefPart NumberDescription
1 0303269 L'WASHER, Upper
2 0912375 EXHAUST PIPE, Upper
3 3852742 HOSE, Exhaust pipe This part replaces 0912376.
4 0984387 CLAMP
5 0306414 SCREW
7 0306435 SCREW, Brace to alternator
8 0909786 GASKET
9 0912441 EXHAUST MANIFOLD, Starboard
9 0912442 EXHAUST MANIFOLD, Port
10 0909830 CAP, Manifold
11 0913401 BUSHING, Temperature switch
12 3853786 CLAMP INSTRUMENT CABLE This part replaces 0980577.
13 0384104 PULLEY ASSEMBLY
14 0312783 PULLEY, Crankshaft
14 3852137 PULLEY, Crankshaft This part replaces 0315781.
15 3852477 GASKET, Pump to block This part replaces 0909835.
16 3852110 WASHER, Harmonic balancer This part replaces 0312787.
17 0314953 BOLT
19 3852507 STUD, Bracket to water pump This part replaces 0910440.
21 0551094 BOLT, Manifold to head
22 0908700 NUT
23 0309336 L'WASHER, Alternator to bracket
24 3852467 STUD, Manifold to engine This part replaces 0909313.
25 0312797 GASKET, Therm. hsg. to adapter
26 3853850 WATER PUMP ASSY. This part replaces 0985429.
27 0314834 PLUG
28 3852468 GASKET, Manifold to engine This part replaces 0909314.
29 0979803 CLAMP
32 0984467 EXHAUST SEAL
33 0911872 BUSHING, Pin
34 0911740 HOSE, Gimbal housing to thermo
34 0911946 HOSE, Cooler to thermostat
36 0911873 PIN EXHAUST FLAP
37 0312781 HOSE, Housing to water pump
38 0912627 CLAMP
39 0306861 SCREW
41 0306865 SCREW, Crankshaft pulley
42 0120177 L'WASHER, Alternator to brkt
43 3852746 HOSE, Thermostat hsg. to manifold This part replaces 0910167.
43 HOSE, Thermostat housing to manifold, starboard
44 3852464 BELT, Alternator This part replaces 0908929.
44 3852504 BELT, Alternator This part replaces 0910371.
45 0120177 L'WASHER, Alternator to brkt
46 3852604 CLAMP, Exhaust This part replaces 0912667.
47 3852649 BRACKET, Center lift This part replaces 0912921.
48 0909863 ELBOW, Exhaust This part replaces 0982680.
48 0913397 ELBOW, Exhaust
50 0315713 PIPE PLUG, High rise
51 0311390 BUSHING
53 3850360 HOUSING, Thermostat This part replaces 0985880.
54 3850999 PLUG This part replaces 0913564.
55 0912377 EXHAUST PIPE
56 0383307 TERMOSTAT ASSEMBLY
59 0985618 SWITCH, Water temperature
