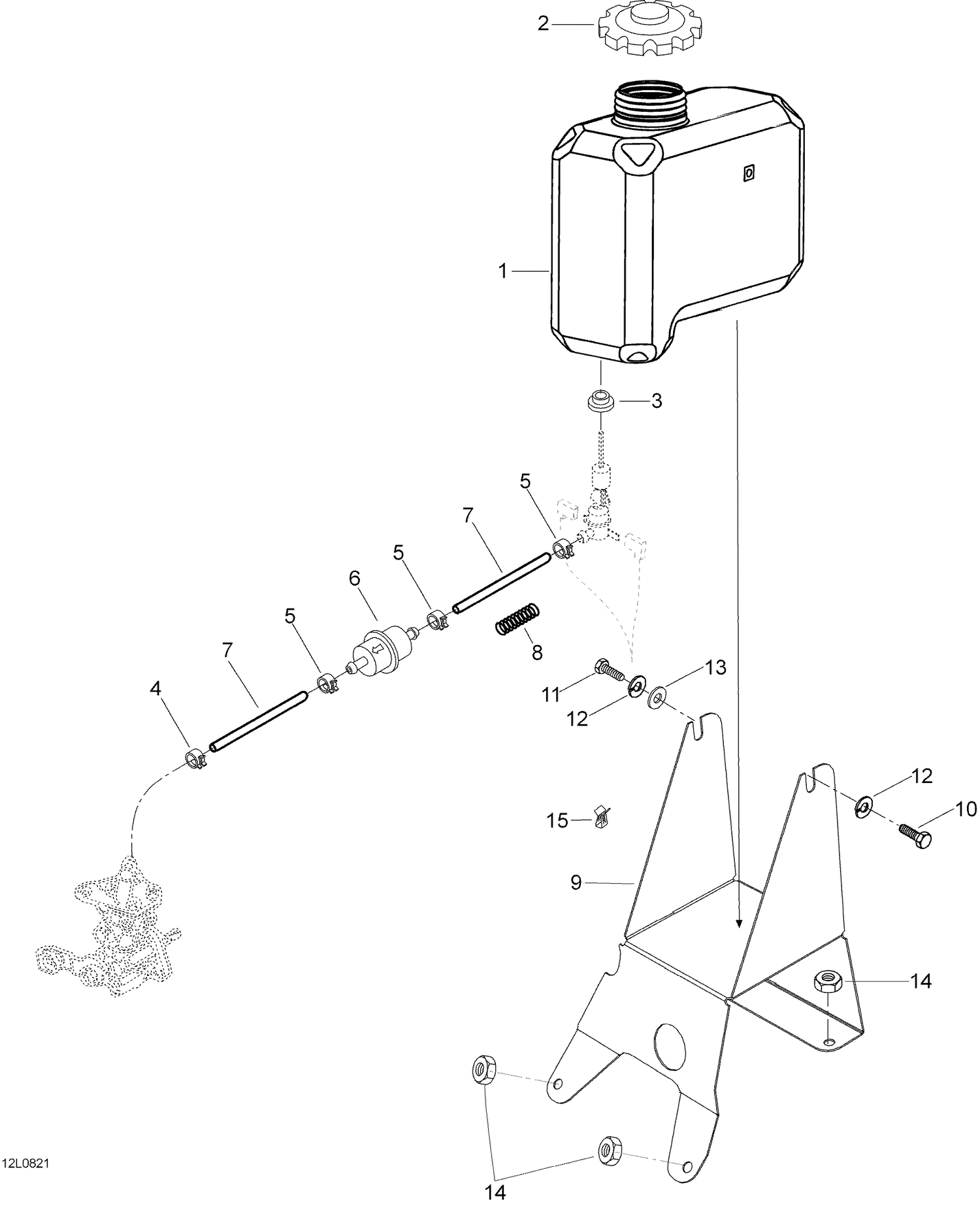

02- Oil Tank And Support
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572106700 | Oil tank |
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 570023000 | Grommet |
| 4 | 414420700 | Universal Spring Clamp |
| 5 | 414415200 | Clamp |
| 6 | 414536500 | Oil filter |
| 7 | 39046 | Hose |
| 8 | 25005 | Spring |
| 9 | 5246036 | OIL TANK SUPPORT - Call your local BRP dealership |
| 10 | 40115 | Hex. screw M6 x 12 |
| 12 | 20052 | Spring washer |
| 13 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
