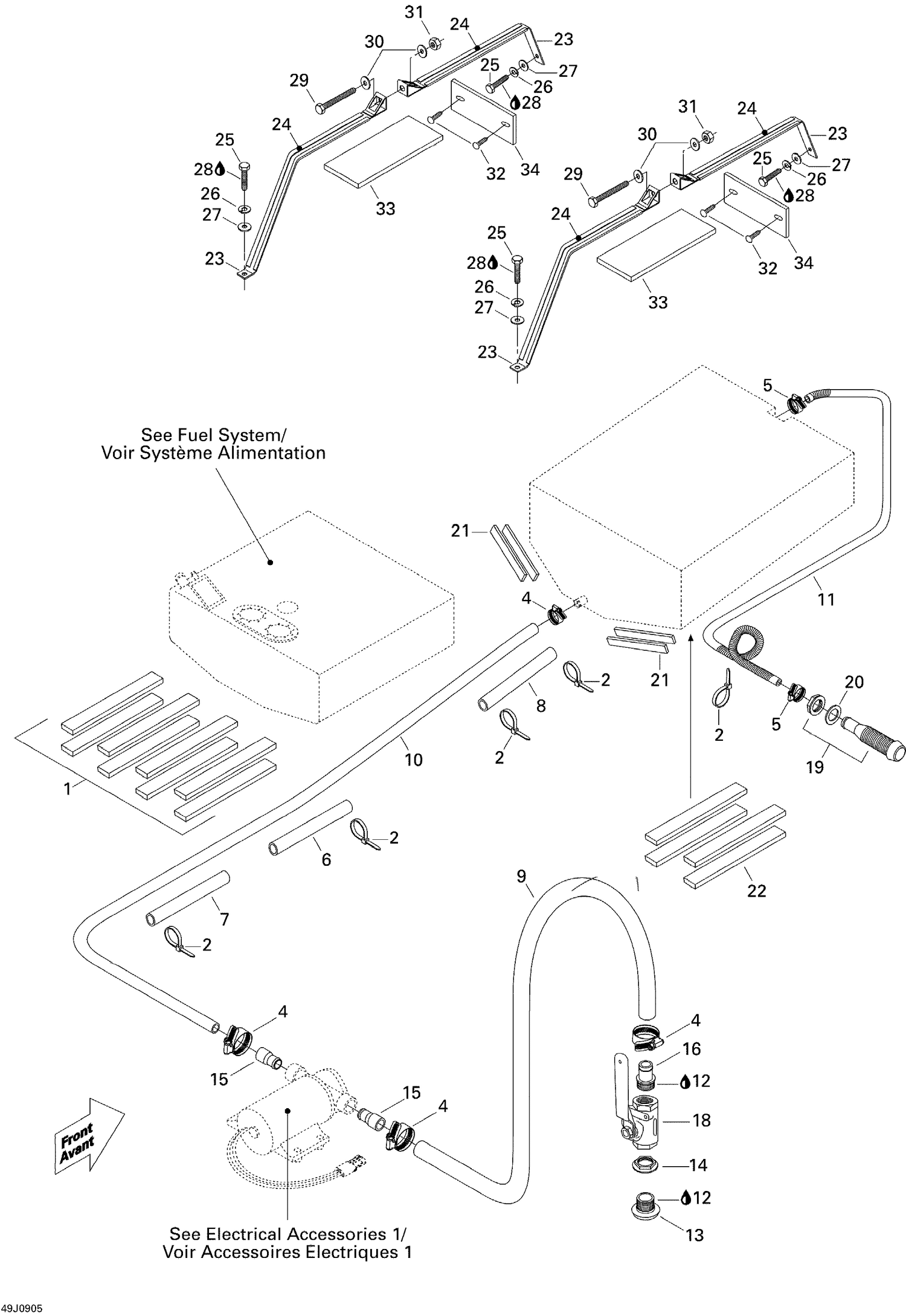

| Ref | Part Number | Description |
|---|
| 1 |
204560115 |
PROTECTOR PAD - Call your local BRP dealership |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 4 |
293650019 |
Tridon Gear Clamp |
| 5 |
293650016 |
Tridon Clamp |
| 6 |
204550045 |
Slit Conduit, Meter |
| 7 |
204550045 |
Slit Conduit, Meter |
| 8 |
204550045 |
Slit Conduit, Meter |
| 9 |
204061123 |
HOSE, 19 MM - Call your local BRP dealership |
| 10 |
204061123 |
HOSE, 19 MM - Call your local BRP dealership |
| 11 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 12 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 13 |
204061017 |
THRU HULL FITTING, 3/4 - Call your local BRP dealership |
| 14 |
204100165 |
Flange Nut 3/4", Bronze |
| 15 |
204061015 |
Pump Fitting |
| 16 |
204061016 |
Adapter |
| 18 |
204061013 |
Shut-Off Valve |
| 19 |
293710162 |
Fitting This part replaces 293710015. |
| 20 |
293250006 |
GASKET - Call your local BRP dealership |
| 21 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 22 |
202000024 |
NEOPRENE, METER - Call your local BRP dealership |
| 23 |
204560235 |
FUEL TANK STRAP - Call your local BRP dealership |
| 24 |
293830044 |
PROTECTOR PAD - Call your local BRP dealership |
| 25 |
207183060 |
Hex. Screw M8 X 30 |
| 26 |
234181601 |
Lock Washer 8 mm, Stainless |
| 27 |
234082600 |
Flat Washer 8 mm, Stainless |
| 28 |
293800005 |
Loctite 271, 10 ml |
| 29 |
207188060 |
HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 30 |
234082600 |
Flat Washer 8 mm, Stainless |
| 31 |
232581600 |
Hex. Elastic Nut M8 |
| 32 |
293730006 |
Black, Dart |
| 33 |
204560191 |
NEOPRENE PAD - Call your local BRP dealership |
