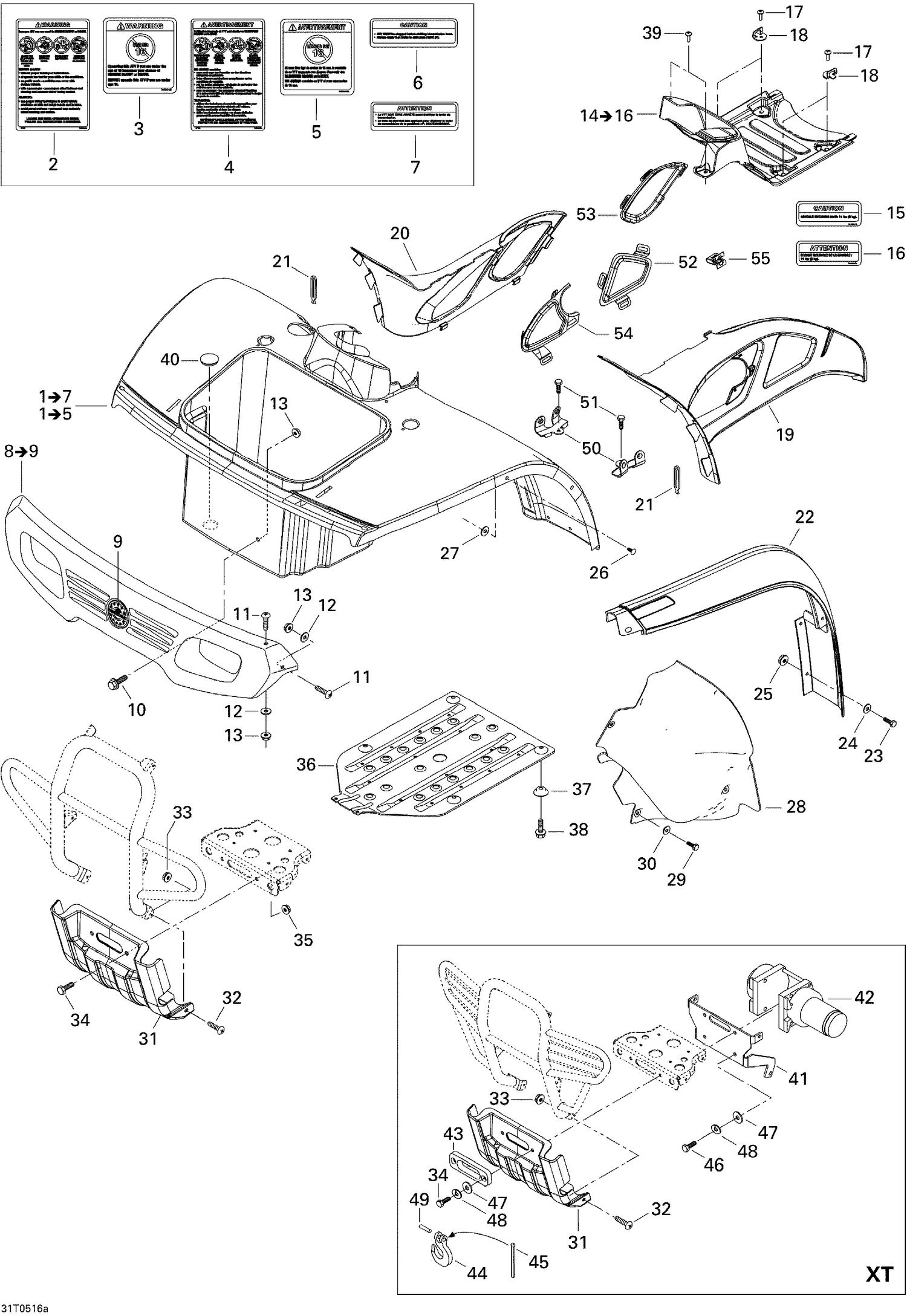

| Ref | Part Number | Description |
|---|
| 9 |
516008739 |
BRP Logo 68mm This part replaces 704900130. |
| 10 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 11 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 12 |
224060201 |
Flat Washer |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 18 |
705000369 |
HOOK, BLACK - Call your local BRP dealership |
| 21 |
570023800 |
Windshield Latch |
| 22 |
705001576 |
LH FRONT MUDGUARD - Call your local BRP dealership |
| 22 |
705001577 |
RH FRONT MUDGUARD - Call your local BRP dealership |
| 23 |
207162044 |
Hex. Screw M6 X 20 |
| 24 |
224060201 |
Flat Washer |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 27 |
234082410 |
Flat Washer 8 mm |
| 28 |
705000133 |
LH TANK PROTECTOR - Call your local BRP dealership |
| 28 |
705000134 |
RH TANK PROTECTOR - Call your local BRP dealership |
| 29 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 30 |
224061201 |
Flat Washer |
| 31 |
705000135 |
Front Protection Plate, black |
| 32 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 36 |
705200536 |
SKID PLATE - Call your local BRP dealership |
| 37 |
705200533 |
CUP - Call your local BRP dealership |
| 38 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 39 |
414745900 |
Tuflock Phillips Plastic Screw |
| 40 |
570041600 |
Rubber Cover |
| 50 |
705000311 |
Bracket, Black |
| 51 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 52 |
705000367 |
LH Rear Grill, Black |
| 53 |
705000366 |
RH Rear Grill, Black |
| 54 |
705000368 |
LH Front Grill |
