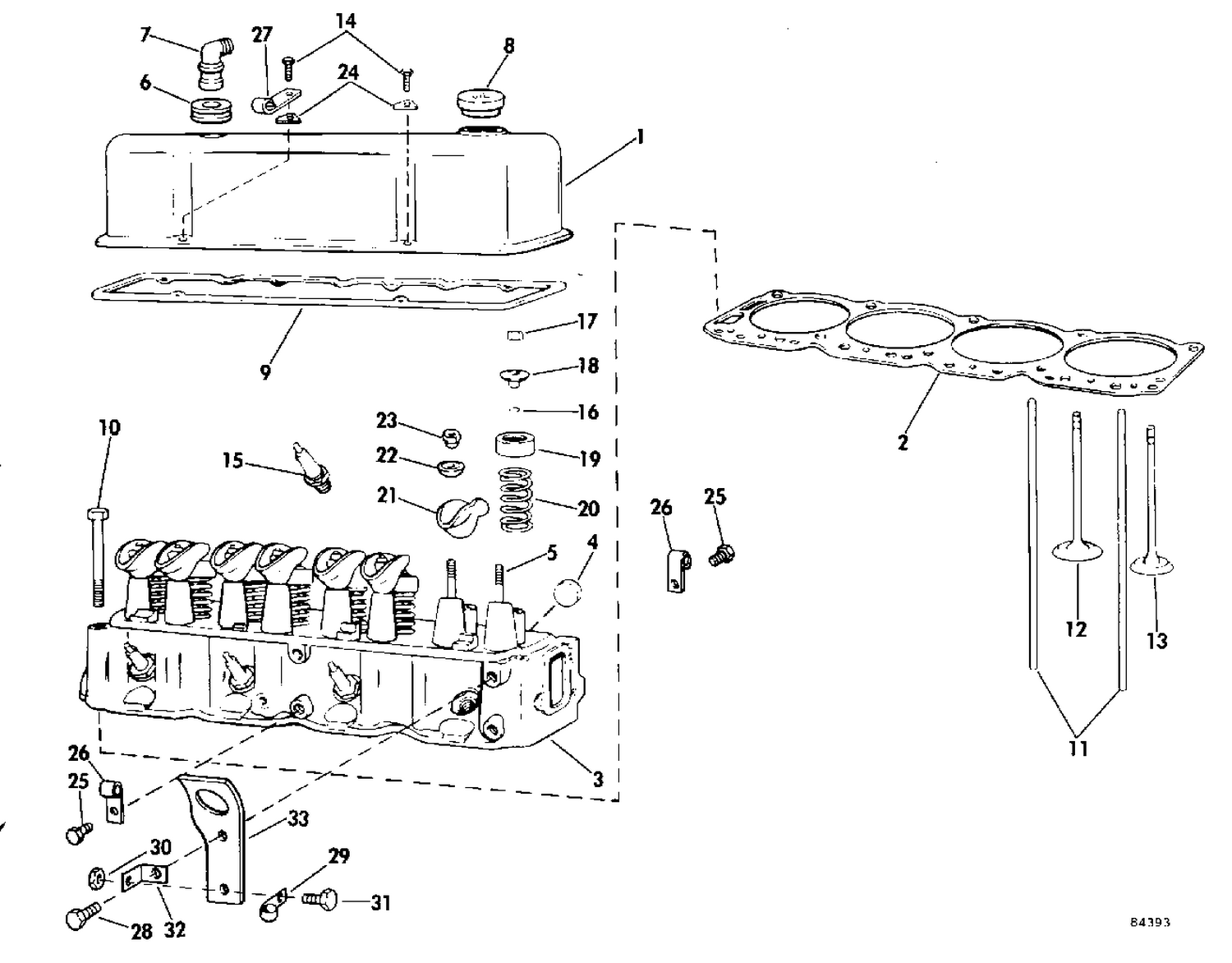

| Ref | Part Number | Description |
|---|
| 1 |
3853784 |
VALVE COVER This part replaces 0980502. |
| 2 |
3853336 |
GASKET, Cylinder head This part replaces 0908611. |
| 3 |
0982242 |
CLYINDER HEAD |
| 4 |
0311378 |
CORE PLUG |
| 5 |
3814692 |
SHANK,Light blue paint |
| 5 |
3815892 |
BLUE PAINT |
| 6 |
0311543 |
GROMMET |
| 7 |
0311545 |
ELBOW |
| 8 |
3980273 |
OIL CAP |
| 9 |
3923468 |
GASKET, Valve cover |
| 10 |
3788417 |
BOLT, Head to crankcase |
| 11 |
3845266 |
PUSH ROD |
| 12 |
3937750 |
VALVE, Exhause, std. |
| 12 |
3940912 |
VALVE, Exhaust, .003" O.S. |
| 12 |
3940913 |
VALVE, Exhaust 0015 |
| 12 |
3940914 |
VALVE, Exhause, .030" O.S. |
| 13 |
3984180 |
VALVE, Intake, std |
| 13 |
3995945 |
VALVE, Intake 0003 os |
| 13 |
3995946 |
VALVE, Intak, 0.015 inch o.s. |
| 13 |
3995947 |
VALVE, Intak, 0.030 inch o.s. |
| 14 |
0180016 |
SCREW |
| 15 |
0979826 |
GASKET, Cylinder head |
| 15 |
3854400 |
SPARK PLUG, Champion RV15YC4 This part replaces 0979827. |
| 16 |
3835333 |
SEAL |
| 17 |
3947770 |
KEY |
| 18 |
3729363 |
CAP |
| 19 |
3836755 |
SHEILD |
| 20 |
3735381 |
VALVE SPRING & DAMPER |
| 21 |
5723551 |
ARM, Valve rocker |
| 22 |
3992294 |
BALL UNIT |
| 23 |
3744341 |
NUT, Coned, 3/8-24 |
| 24 |
3877670 |
REINFORCEMENT |
| 25 |
0311415 |
SCREW, Cable clamp |
| 28 |
0306834 |
BOLT, Throttle lever retainer |
| 29 |
3852427 |
CLAMP, Fuel line to bracket This part replaces 0907852. |
| 30 |
0311375 |
NUT This part replaces 0316659. |
| 32 |
0908605 |
BRACKET, Clamp |
