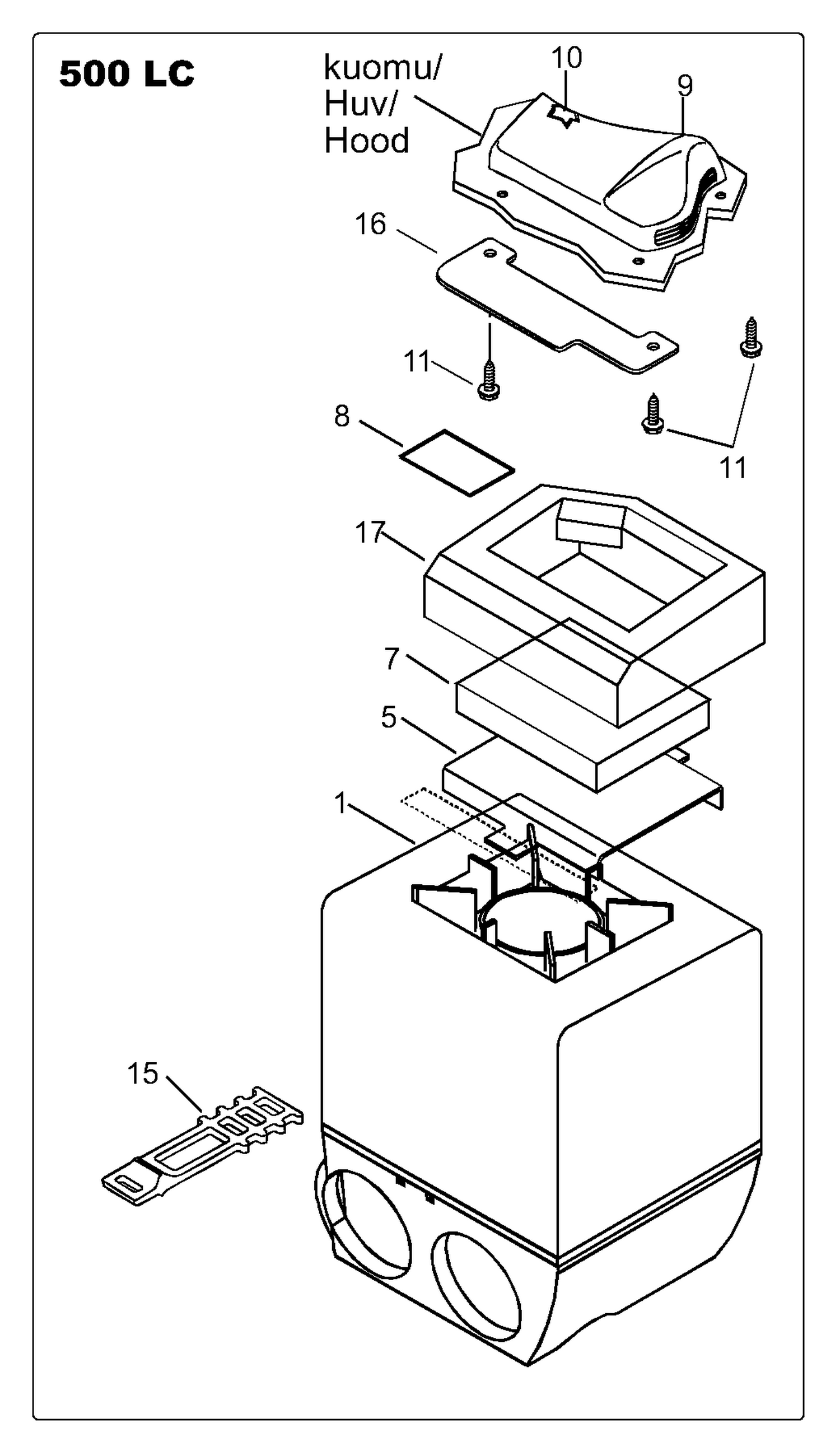

01- Air Silencer
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 570048900 | Adaptor |
| 5 | 517283900 | Intake grill |
| 7 | 415014800 | Air filter |
| 8 | 516001191 | Caution Label, Air Intake This part replaces 516000130. |
| 9 | 572077900 | INTAKE COVER - Call your local BRP dealership |
| 10 | 414972600 | Air filter |
| 11 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 12 | 570048100 | Fastening rubber |
| 13 | 415038400 | Gear clamp tridon |
| 14 | 414532800 | Collar |
| 15 | 570069700 | LATCH - Call your local BRP dealership |
| 16 | 517292800 | Deflector |
