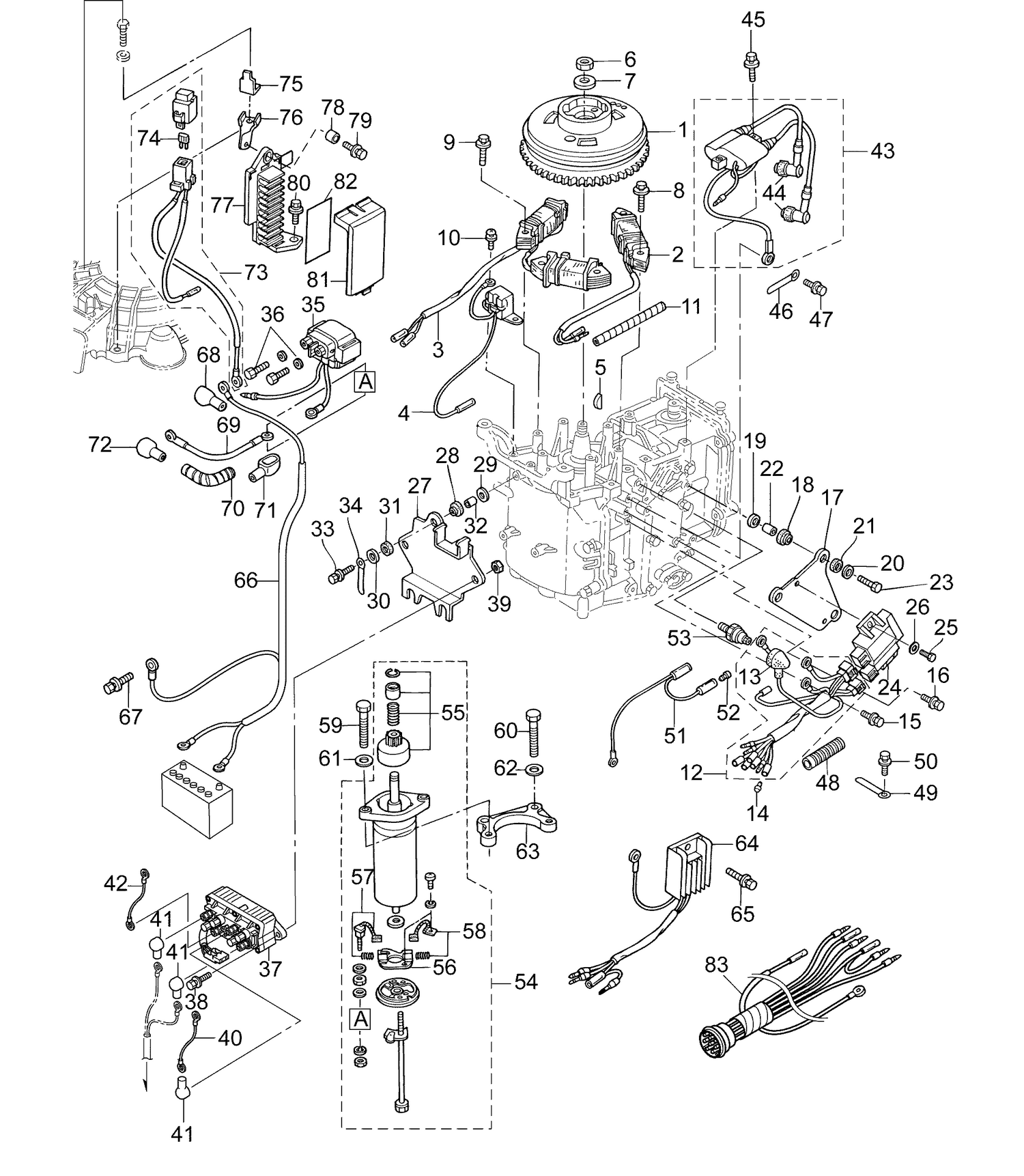

12-0_ELECTRICAL SYSTEM
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5040309 | FLYWHEEL W/GEAR |
| 2 | 5040306 | EXCITER COIL |
| 4 | 5041299 | PULSAR COIL |
| 5 | 5041254 | KEY DRIVE PULLEY |
| 6 | 5040136 | Nut 12-P1.25 |
| 7 | 5041666 | Washer |
| 10 | 5041609 | SCREW |
| 12 | 5040310 | CD UNIT CORD ASSEMBLY |
| 17 | 5041298 | CD UNIT BRACKET |
| 18 | 5041252 | RUBBER MOUNT |
| 21 | 5040545 | Mount Rubber 9-16-4.3 |
| 22 | 5040248 | COLLAR 6.2-9-7.4 |
| 24 | 5040308 | CD UNIT |
| 25 | 5041323 | PRE-COATED BOLT |
| 28 | 5041252 | RUBBER MOUNT |
| 31 | 5040545 | Mount Rubber 9-16-4.3 |
| 32 | 5040248 | COLLAR 6.2-9-7.4 |
| 43 | 5041297 | IGNITION COIL W/RESISTANCE CAP |
| 50 | 5041557 | BOULON |
| 51 | 5041459 | SEPARATE CORD (BLACK) |
| 53 | 5041008 | Oil Pressure Switch |
| 79 | 5041557 | BOULON |
