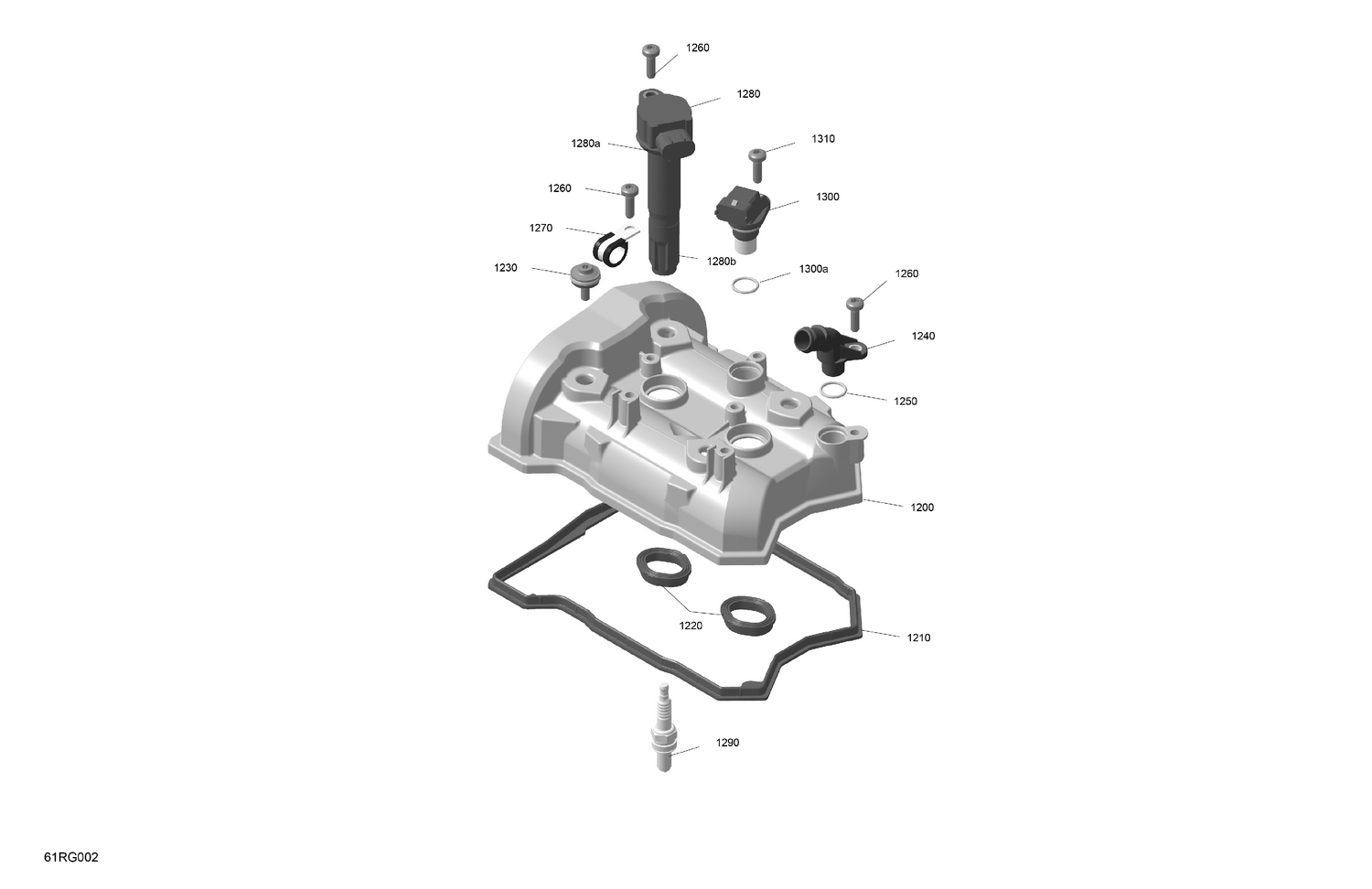

01- ROTAX - Valve Cover
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1200 | 420911041 | Valve Cover |
| 1210 | 420431621 | Gasket |
| 1220 | 420431751 | Gasket |
| 1230 | 420440497 | Distance Screw M6 |
| 1240 | 420611242 | Connector |
| 1250 | 420631240 | O-Ring |
| 1260 | 420441386 | Flanged Torx Screw M6 X 20 |
| 1270 | 420851492 | Cable Clamp 15/M6 |
| 1280a | 420201430 | Protection Cap |
| 1280b | 420201437 | Plug Boot |
| 1290 | 415129670 | Spark Plug NGK MR7BI-8 |
| 1300a | 420631890 | O-Ring |
