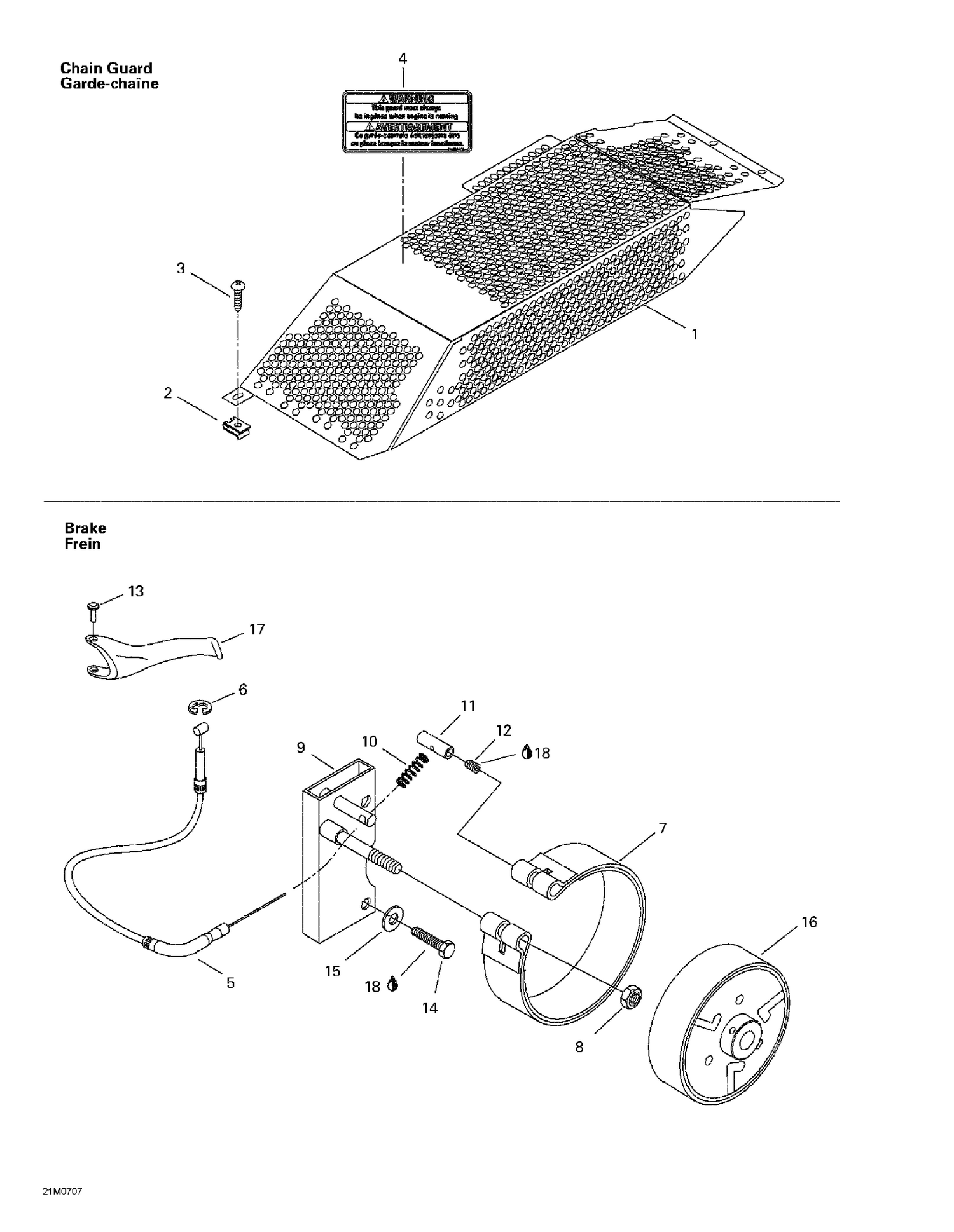

| Ref | Part Number | Description |
|---|
| 1 |
417300224 |
CHAIN GUARD - Call your local BRP dealership |
| 2 |
417300005 |
SPRING NUT U #10-24 - Call your local BRP dealership |
| 3 |
417300006 |
Tapping Screw M4.8 X 16 |
| 4 |
516001131 |
Security Label (Pulley Guard) |
| 5 |
507032289 |
BRAKE CABLE - Call your local BRP dealership |
| 6 |
414274500 |
Circlip |
| 7 |
507031600 |
SHOE ASS'Y - Call your local BRP dealership |
| 8 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 9 |
507032297 |
BRAKE SUPPORT - Call your local BRP dealership |
| 10 |
507032229 |
RELEASE SPRING - Call your local BRP dealership |
| 12 |
303115900 |
Socket Set Screw |
| 13 |
390502000 |
Tubular Rivet |
| 14 |
Not |
Available As Spare Part - Hex. Screw 5/16 x 1 1/4 |
| 15 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 16 |
415129554 |
DRIVE PULLEY ASSY - Call your local BRP dealership This part replaces 417217200. |
| 17 |
506151225 |
BRAKE HANDLE - Call your local BRP dealership |
