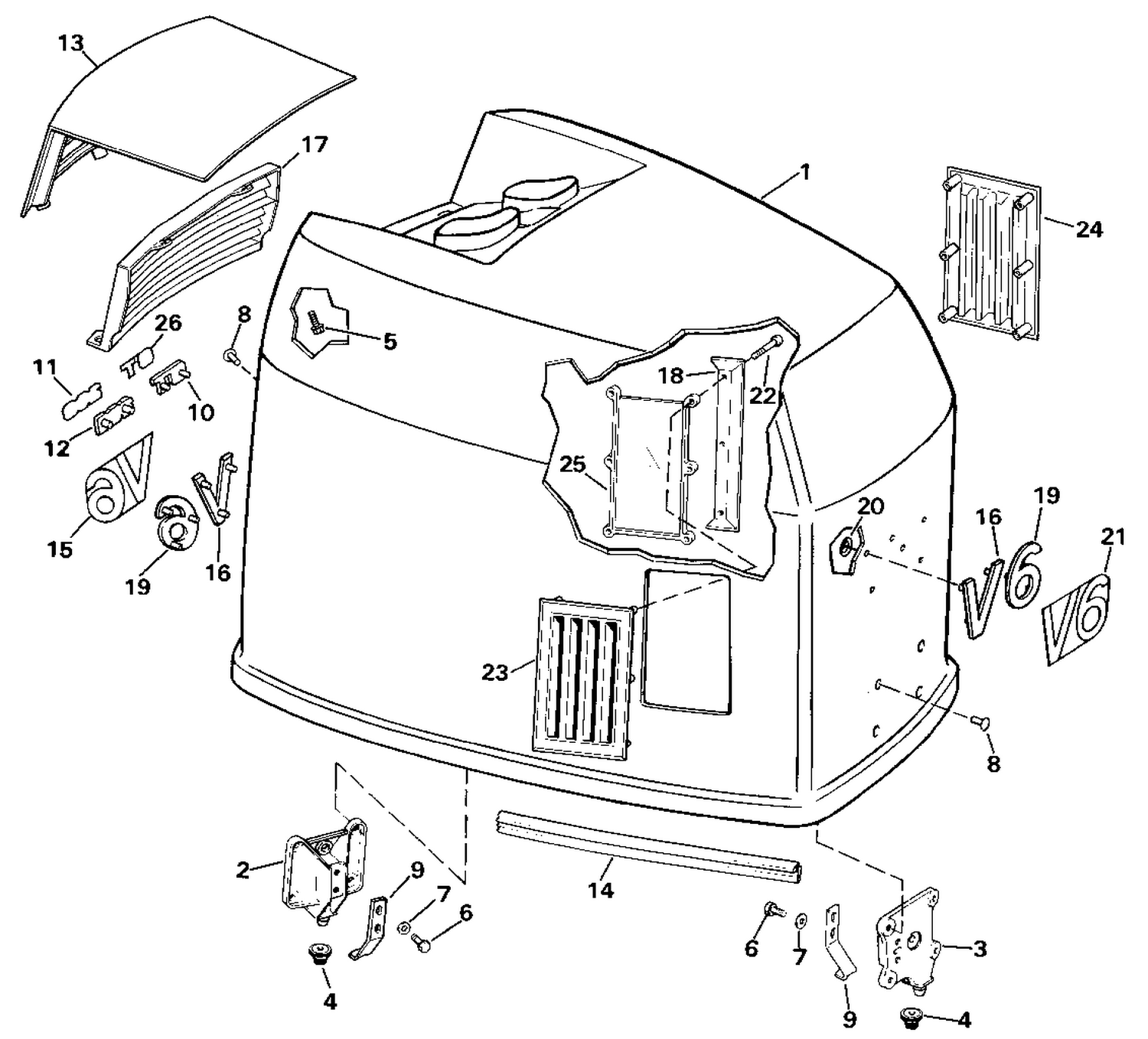

ENGINE COVER - JOHNSON - 200STL
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0432526 | ENGINE COVER ASSY., 200 |
| 2 | 0394976 | LOCATING BRACKET, Rear |
| 3 | 0329762 | LOCATING BRACKET, Front |
| 10 | 0330456 | APPLIQUE GT, rear |
| 11 | 0334609 | PLATE, Rear, 200 |
| 12 | 0333049 | APPLIQUE, Rear |
| 13 | 0331944 | TILT HANDLE |
| 15 | 0334582 | PLATE, Applique front |
| 16 | 0330413 | APPLIQUE, Front & rear |
| 17 | 0331945 | BAFFLE |
| 18 | 0329866 | BRACKET, Louver mtg |
| 19 | 0330410 | APPLIQUE, Front & rear |
| 21 | 0334582 | PLATE, Applique front |
| 23 | 0334585 | LOUVER, Engine cover, stbd |
| 24 | 0334584 | LOUVER, Engine cover, port |
| 25 | 0329737 | BAFFLE, 175STL |
| 26 | 0334611 | PLATE, GT, rear |
| 0433168 | 0433168 | DECAL SET, 200 |
