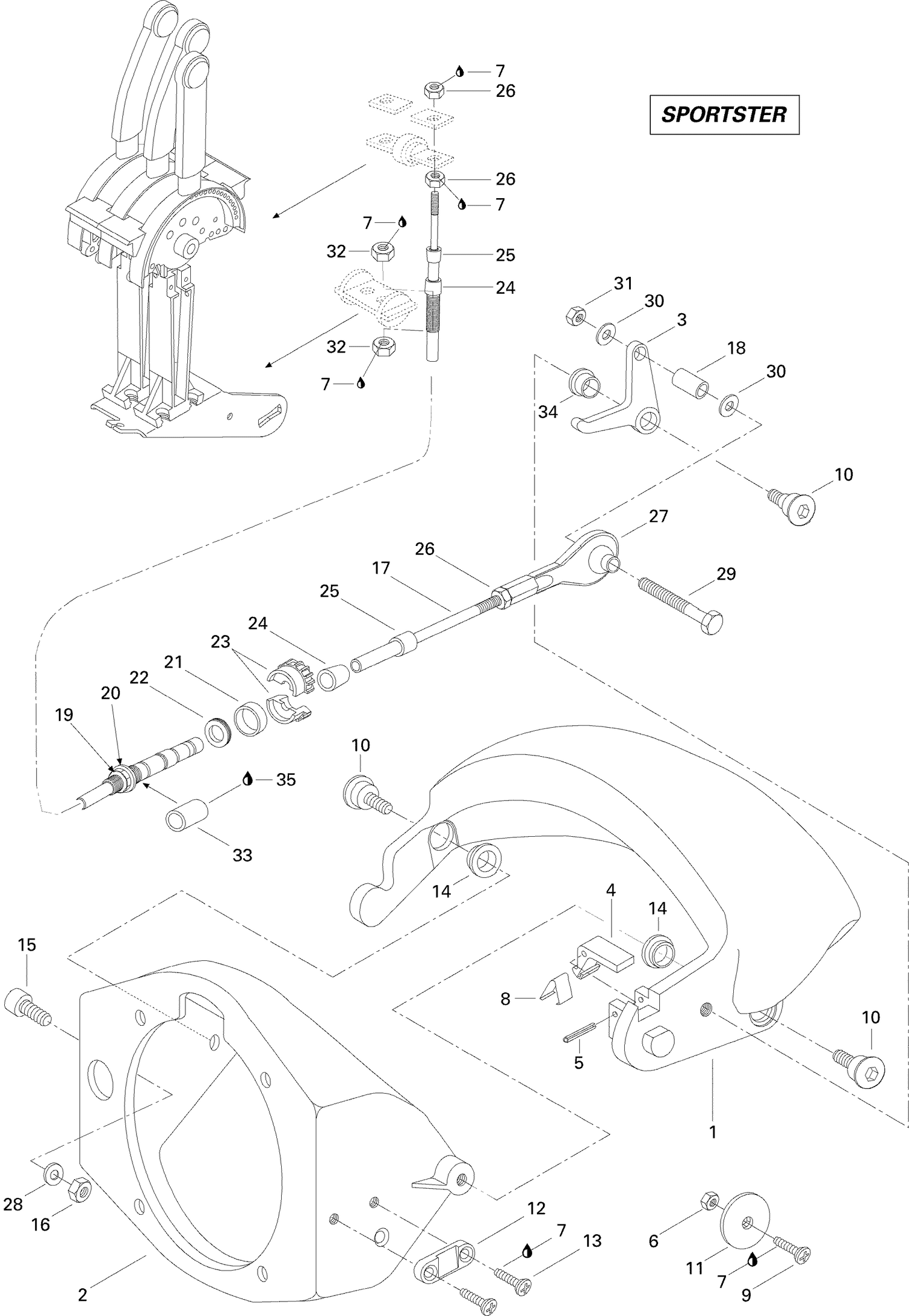

05- Reverse Sportster
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 271000440 | Gate - Reverse |
| 2 | 271000473 | Gate Support |
| 3 | 271000382 | Cable Lever |
| 4 | 271000430 | HOOK LEVER - Call your local BRP dealership |
| 5 | 211400009 | Pin |
| 6 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 7 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 8 | 271000431 | Spring |
| 9 | 211000066 | Screw 1/4 - 20 x 3/4 |
| 9 | 211000084 | Screw 1/4-20 x 5/8 |
| 10 | 211000007 | Screw |
| 11 | 271000477 | Anode-Zinc |
| 12 | 271000385 | Pawl-stop |
| 13 | 216151260 | Screw M5 x 12 |
| 14 | 271000321 | Venturi Bushing |
| 15 | 215981660 | SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership |
| 16 | 232581600 | Hex. Elastic Nut M8 This part replaces 212000002. |
| 17 | 271000467 | Reverse cable - Right |
| 18 | 291000177 | SPACER - Call your local BRP dealership |
| 19 | 211100011 | Hex. Jam Nut 1/2-20 |
| 20 | 211200006 | FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 21 | 211100010 | Retaining Ring |
| 22 | 211100009 | RUBBER WASHER - Call your local BRP dealership |
| 23 | 277000168 | Half-Ring |
| 24 | 277000473 | Boot, Large |
| 25 | 277000466 | Boot, Small |
| 26 | 212100005 | Hex. Nut |
| 27 | 277000153 | BALL JOINT - Call your local BRP dealership |
| 28 | 234081600 | Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 29 | 207065060 | Hex. Screw M6 X 50 This part replaces 215665060. |
| 30 | 234061600 | Stainless Flat Washer M6 This part replaces 213200001. |
| 31 | 232561600 | Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 32 | 212100006 | Hex. Jam Nut |
| 33 | 271000465 | Spacer |
| 34 | 271000212 | Plastic Bushing |
