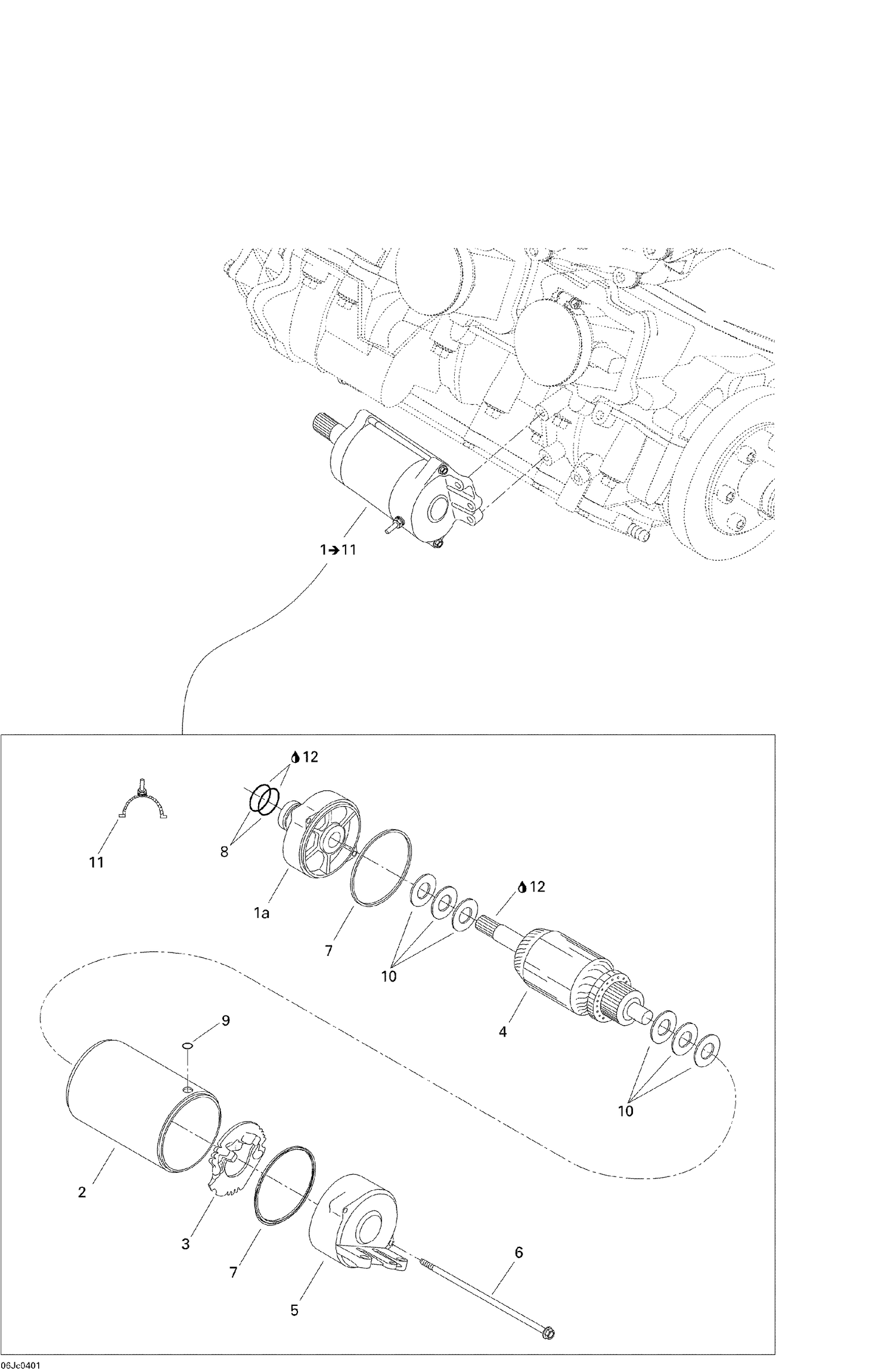

| Ref | Part Number | Description |
|---|
| 1a |
278001152 |
Front Housing |
| 2 |
278001153 |
Starter Housing |
| 3 |
278001154 |
BRUSH HOLDER - Call your local BRP dealership |
| 4 |
278001155 |
Armature |
| 5 |
278001156 |
REAR HOUSING - Call your local BRP dealership |
| 6 |
278001157 |
SCREW - Call your local BRP dealership |
| 7 |
278001158 |
SQUARE RING - Call your local BRP dealership |
| 8 |
278001159 |
O-RING - Call your local BRP dealership |
| 9 |
278001160 |
O-RING - Call your local BRP dealership |
| 10 |
278001161 |
Set Washer |
| 11 |
278001385 |
SET BRUSH - Call your local BRP dealership |
