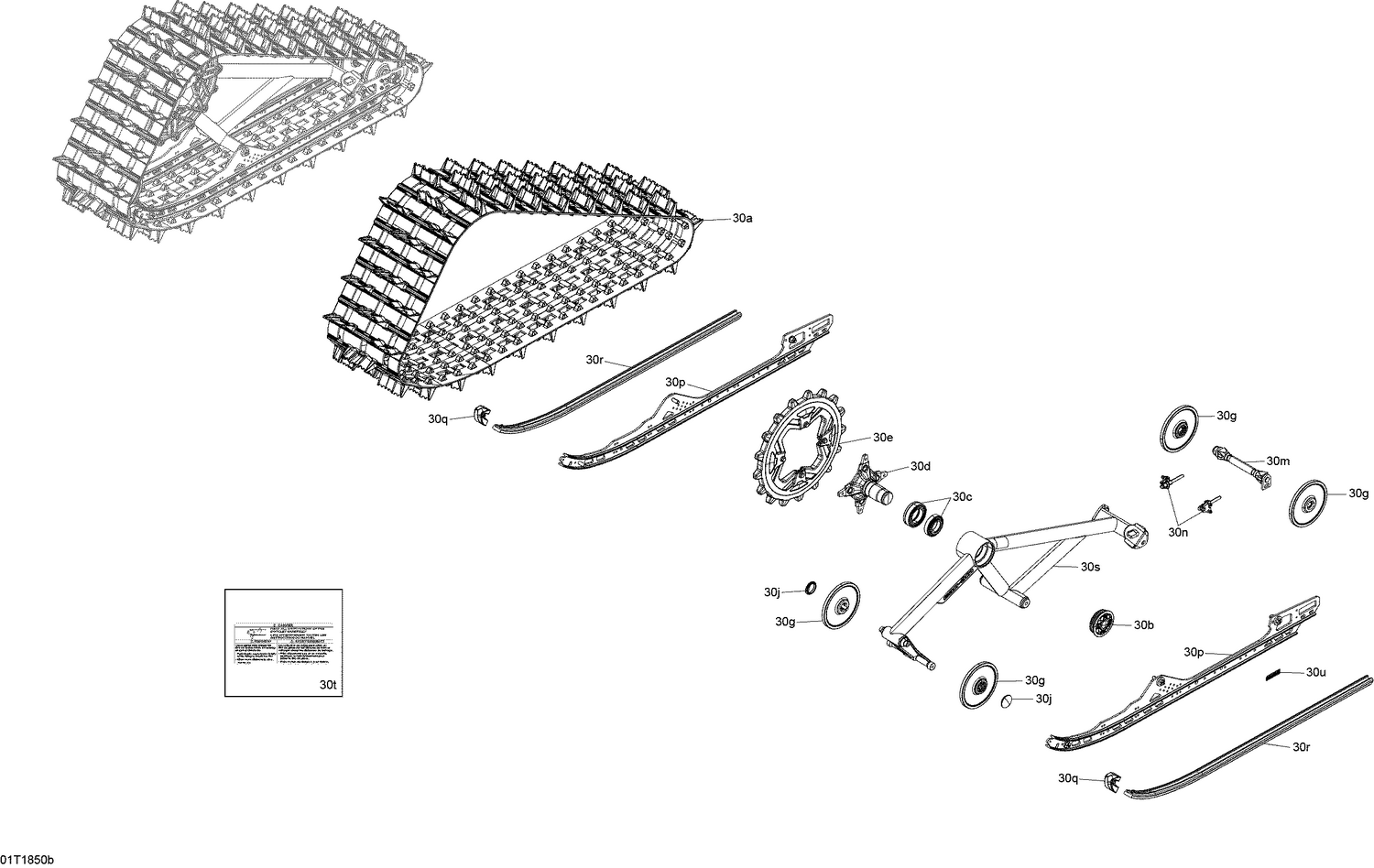

07- Track Kit Rear
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502615 | Track Rear |
| 30b | 715004313 | Cover Kit |
| 30c | 715001602 | Bearing Kit |
| 30d | 705502641 | Main Axle |
| 30e | 715004316 | Sprocket Kit |
| 30g | 715005248 | Wheel Ass'Y This part replaces 715004318. |
| 30j | 570063600 | Wheel Cap |
| 30m | 715004322 | Tensionner Axle Kit |
| 30n | 715004360 | TENSION ADJUSTER KIT - Call your local BRP dealership |
| 30p | 715004328 | Rear Rail Kit |
| 30q | 715006445 | Protector_Rail Kit -E- This part replaces 715004324. |
| 30r | 503191306 | Black, Slider Shoe 137'' |
| 30s | 715004331 | LH Rear Frame |
| 30s | 715004334 | RH Rear Frame |
| 30t | 704901283 | Warning Label |
