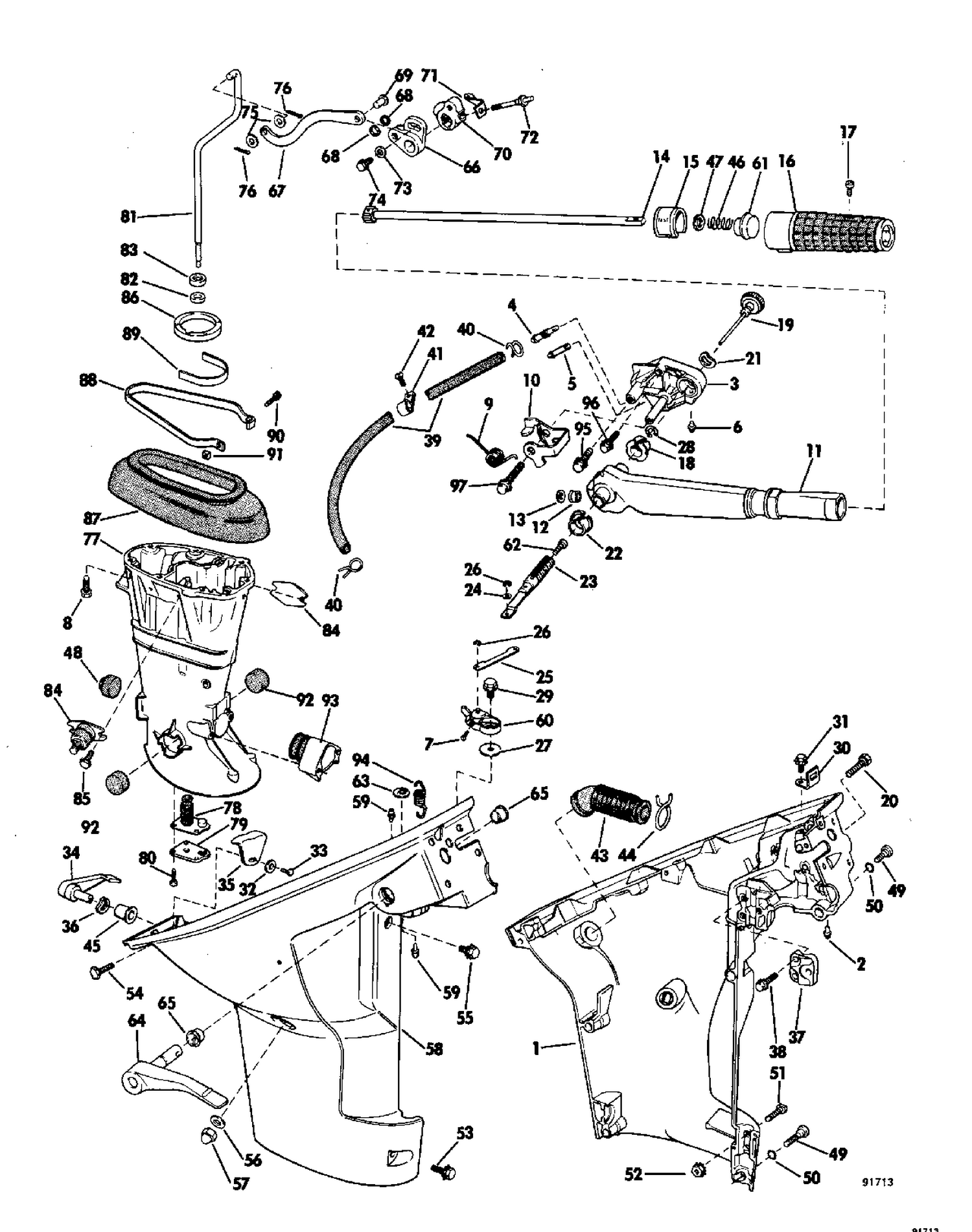

| Ref | Part Number | Description |
|---|
| 1 |
0383512 |
LOWER COVER ASSEMBLY, Port |
| 3 |
0380966 |
BRACKET AND FUEL CONNECTOR ASSEMBLY |
| 4 |
0303597 |
NIPPLE, Fuel connector |
| 5 |
0303603 |
GUIDE PIN, Connector |
| 7 |
0312943 |
SCREW, Adjust., interlock arm |
| 8 |
0329894 |
SCREW This part replaces 0302510. |
| 9 |
0309670 |
SPRING, Handle stop |
| 10 |
0312074 |
STOP, Steering handle |
| 11 |
0381615 |
STEERING HANDLE ASSY |
| 12 |
0325074 |
BUSHING This part replaces 0305100. |
| 13 |
0312687 |
WAHSER,Bushing |
| 14 |
0381613 |
GEAR AND SHAFT, Handle |
| 15 |
0203260 |
PLATE THROTTLE CONTROL |
| 16 |
0386266 |
GRIP & PLATE This part replaces 0381489. |
| 18 |
0312069 |
BUSHING, Handle to bracket |
| 19 |
0380892 |
KNOB, Idle adjustent |
| 20 |
0302288 |
BOLT |
| 21 |
0310054 |
BOW WASHER, Knob to bracket |
| 22 |
0309671 |
BUSHING, Handle to cover |
| 23 |
0380880 |
RACK AND LINK, Throttle |
| 24 |
0307235 |
BOW WASHER, Arm to link |
| 25 |
0312942 |
LINK, Pivot to interlock arm |
| 26 |
0203949 |
E RING LINK |
| 28 |
0312078 |
RETAINING RING, Knob |
| 29 |
0310053 |
SCREW, Interlock arm |
| 30 |
0310073 |
HOOK, Lower motor cover |
| 33 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 34 |
0312184 |
HANDLE, Latch |
| 37 |
0310091 |
CAP, Upper pivot shaft |
| 38 |
0309618 |
SCREW, Cap to cover |
| 39 |
0303617 |
HOSE This part replaces 0552646. |
| 41 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 42 |
0309088 |
SCREW, Clamp to cover |
| 43 |
0309830 |
HOSE, Exhasut |
| 44 |
0324825 |
CLAMP, Cylinder head hose This part replaces 0305646. |
| 45 |
0553769 |
BUSHING |
| 46 |
0301656 |
SPRING |
| 47 |
0303252 |
WAHSER, Grip spring |
| 48 |
0309707 |
RUBBER MOUNT, Lower rear |
| 49 |
0309817 |
SCREW, Lower motor cover |
| 50 |
0309819 |
LOCKWASHER |
| 51 |
0310075 |
SCREW, Lower pivot shaft |
| 52 |
0310094 |
NUT, Pivot shaft screw |
| 53 |
0311440 |
SCREW, Impeller plate to ext. |
| 54 |
0311440 |
SCREW, Impeller plate to ext. |
| 55 |
0315087 |
SCREW, Motor cover |
| 56 |
0309643 |
WASHER, Nut, side mount |
| 57 |
0303890 |
ACORN NUT, Lower side mount |
| 58 |
0383506 |
LOWER COVER ASSY., Stbd |
| 60 |
0381862 |
INTER LOCK ARM AND PIN |
| 61 |
0303282 |
BLOCK |
| 62 |
0312068 |
SCREW, Idle adjsutment |
| 63 |
0310220 |
RETAINER, Short. switch leads |
| 64 |
0379334 |
SHIFT LEVER & SHAFT |
| 65 |
0309770 |
BEARING, Shift lever |
| 66 |
0309747 |
CLEVIS, Shift rod adjustment |
| 67 |
0309779 |
LINK, Clevis to shift rod |
| 68 |
0309750 |
RONDELLE, ressort - Tige soupape d'échappement |
| 69 |
0309768 |
PIN, Clevis to link |
| 70 |
0309871 |
BRACKET, Shift shaft |
| 71 |
0310062 |
LEVER, Reverse lock |
| 72 |
0310052 |
SCREW, Detent |
| 73 |
0329241 |
RONDELLE This part replaces 0306482. |
| 74 |
0300646 |
VIS, ancrage |
| 75 |
0303886 |
LOCKWASHER |
| 77 |
0381280 |
EXH. HSG., Boot & plt. assy |
| 78 |
0309631 |
BOOT, Shift rod |
| 79 |
0309636 |
PLATE |
| 80 |
0309637 |
SCREW, Plate |
| 81 |
0309661 |
SHIFT ROD, Upper |
| 82 |
0309818 |
GUIDE, Shift rod |
| 83 |
0309386 |
SEAL, Shift rod |
| 84 |
0380964 |
RUBBER MOUNT, Upper side |
| 85 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 86 |
0309980 |
RING, Pilot |
| 87 |
0312211 |
SEAL, Exhaust housing |
| 88 |
0310037 |
CLAMP, Seal |
| 89 |
0310766 |
RETAINER, Seal |
| 90 |
0311084 |
SCREW, Anchor block |
| 92 |
0309698 |
RUBBER MOUNT |
| 93 |
0380965 |
RUBBER MOUNT, Lower front |
| 94 |
0312164 |
SPRIG,Cable to cover |
| 95 |
0312140 |
SCREW, Bracket |
| 96 |
0309405 |
SCREW |
