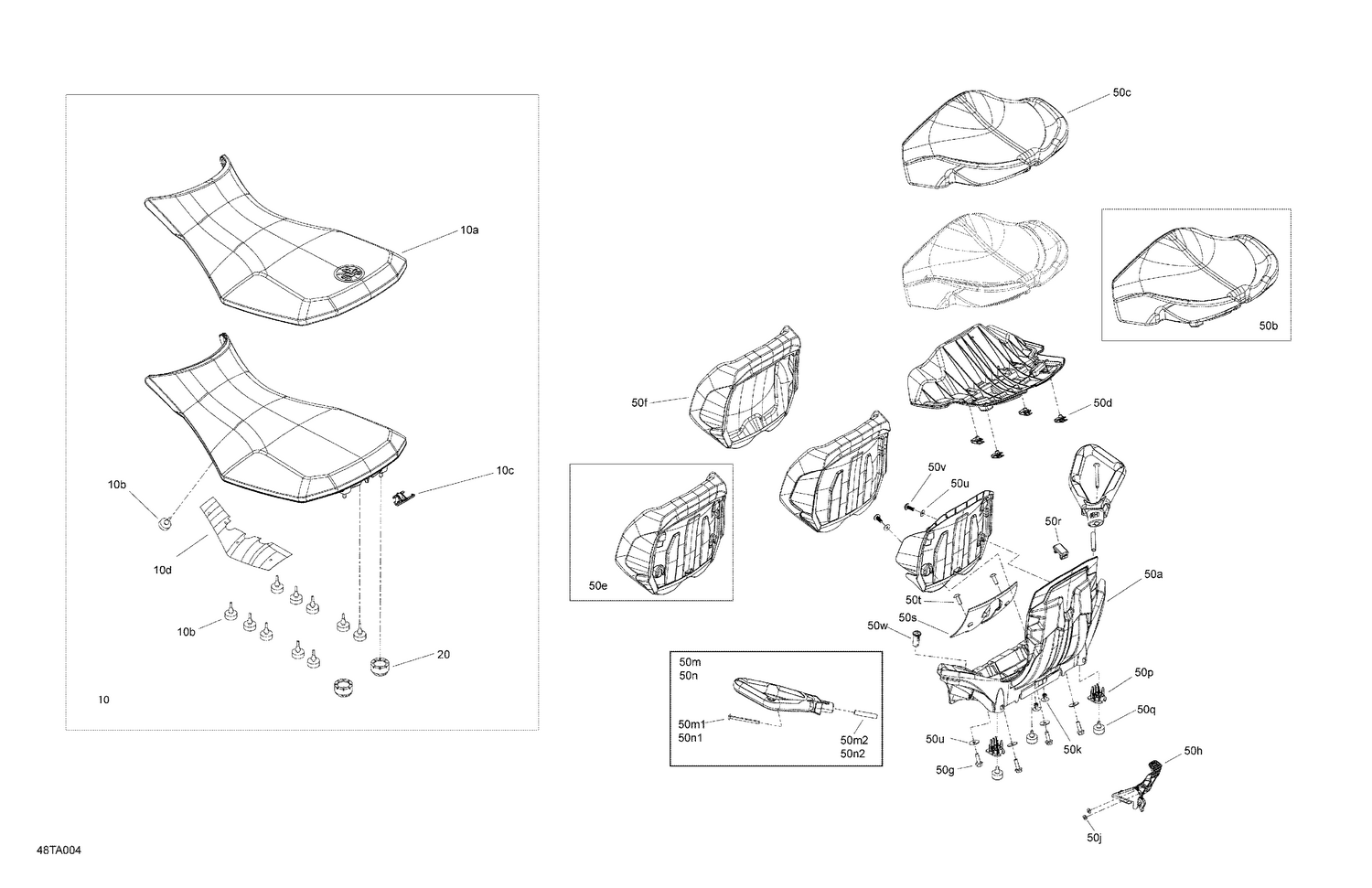

07- Body - Seat
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 708003609 | Seat Stopper This part replaces 708003053. |
| 50a | 708002574 | Seat Base |
| 50d | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 50g | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 50h | 708001532 | Latch |
| 50j | 234051410 | Flat Washer M5 |
| 50k | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 50m | 703500806 | LH Passenger Seat Handle Kit |
| 50m1 | 250000806 | Torx Truss M8 X 90 |
| 50m2 | 705006129 | Sleeve |
| 50n | 703500807 | RH Passenger Seat Handle Kit |
| 50n1 | 250000806 | Torx Truss M8 X 90 |
| 50n2 | 705006129 | Sleeve |
| 50p | 708001483 | Seat Support |
| 50q | 708000758 | Rubber Stopper |
| 50r | 708001511 | Insert |
| 50s | 708001512 | Cap |
| 50t | 250000577 | Torx Truss Screw K40 X 12 |
| 50u | 224060201 | Flat Washer |
| 50v | 250000546 | Oval Head Torx Screw K60 X 16 |
