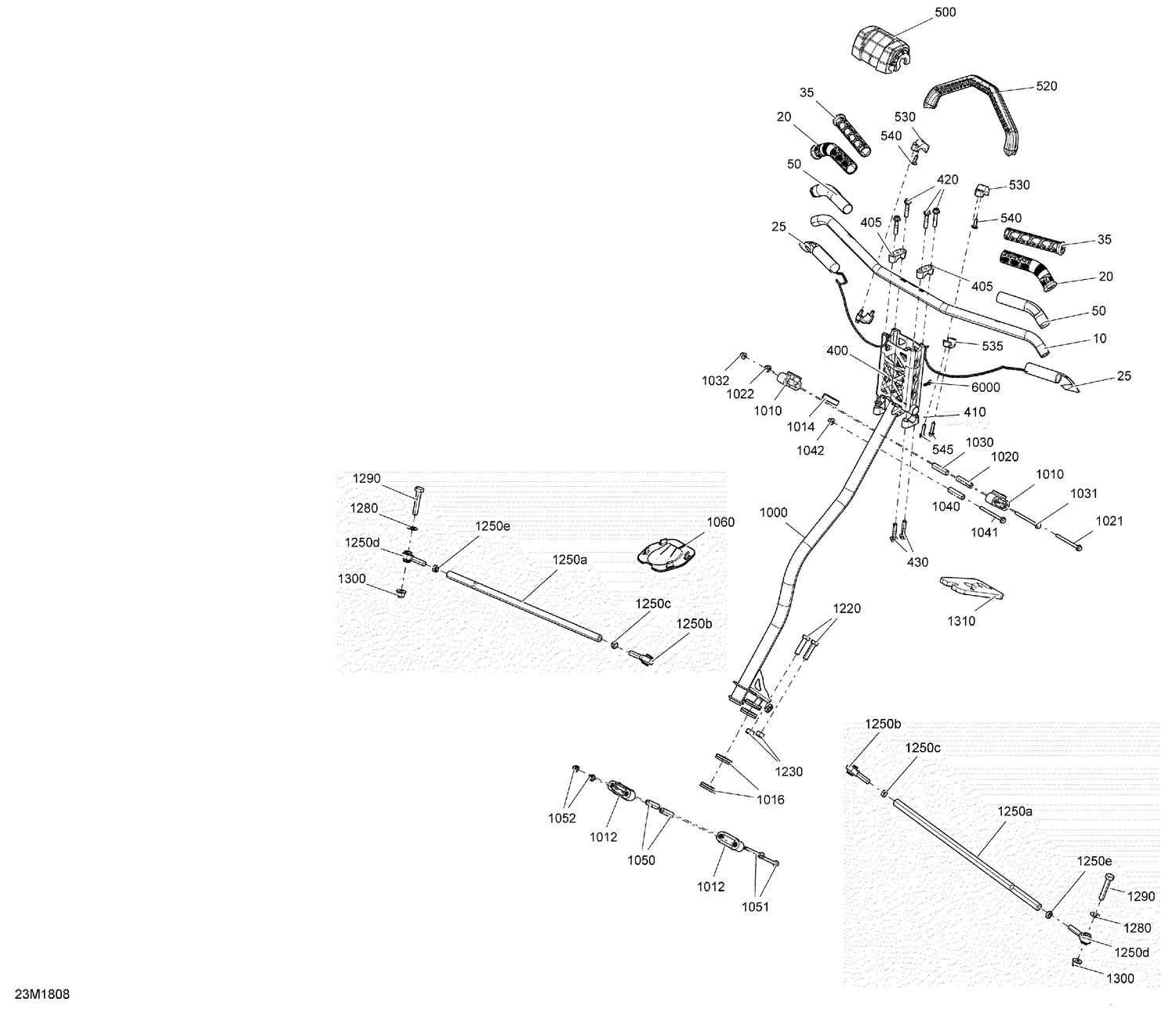

07- Steering Summit - 600 CARB
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152709 | Handle Bar, Non Dyed Clear Anodizing |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152798 | Heating Element 32 Watt 3 Wires |
| 35 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 50 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 400 | 860200821 | Extension Kit ( 205mm ) |
| 405 | 506152751 | Steering Support This part replaces 506152750. |
| 410 | 506152751 | Steering Support |
| 420 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 500 | 506152541 | Deep Black, Steering Pad |
| 520 | 506152460 | Moulding Strap |
| 530 | 506152703 | Black Support Plate |
| 535 | 719000049 | Clamps |
| 540 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 545 | 250000447 | Hex. Flange Screw M6 X 25 |
| 1000 | 506152962 | Steering Column |
| 1010 | 506152508 | Upper Half-Housing |
| 1012 | 506152217 | Lower Half-Housing |
| 1014 | 506152509 | Upper Anti-Vibration Gasket |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1022 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1032 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1040 | 506152297 | Housing Bushing |
| 1041 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1042 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1050 | 506152297 | Housing Bushing |
| 1051 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1052 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1060 | 506152163 | Plate |
| 1220 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 1230 | 233601466 | Elastic Locking Nut M10 |
| 1250a | 506152482 | Tie-Rod |
| 1250b | 506152081 | LH Thread Ball Joint |
| 1250c | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250d | 506152019 | RH Threaded Ball Joint |
| 1250e | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
| 1290 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 1300 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 1310 | 506152521 | Bushing |
