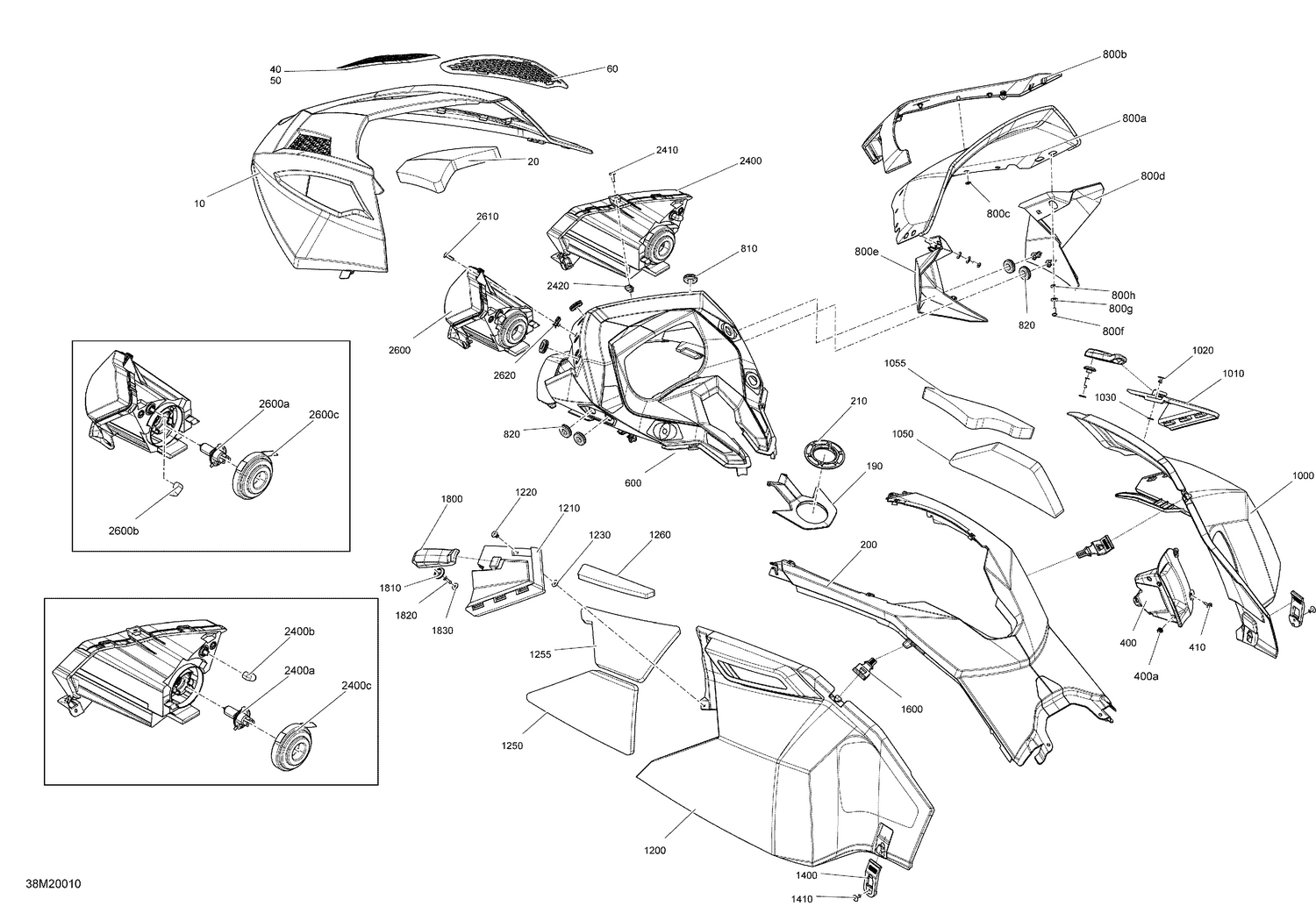

09- Body - Hood Section
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517307101 | Hood |
| 20 | 517304877 | Foam Hood |
| 40 | 517303805 | RH Hood Grille |
| 50 | 517303804 | LH Hood Grille |
| 60 | 517304187 | RH Lateral Hood Grille |
| 190 | 517304027 | Deep Black, Cap Console |
| 200 | 517307539 | Console |
| 210 | 517306602 | Console Nut |
| 400a | 275500241 | Black, Cap |
| 410 | 250000725 | Screw M4 X 16 |
| 600 | 517303999 | Indicator Support |
| 800a | 517303797 | HIGHT WINDSHIELD (430) - Call your local BRP dealership |
| 800b | 860200229 | Medium Windshield Support |
| 800c | 732610072 | Push Nut |
| 800d | 517304024 | RH Console Air Deflector |
| 800e | 517304025 | LH Console Air Deflector |
| 800f | 250000720 | Torx Screw K50 X 16 |
| 800g | 250200025 | Washer M5 |
| 800h | 250200024 | Rubber Washer 5 mm |
| 810 | 517303756 | Grommet |
| 820 | 517303756 | Grommet |
| 1000 | 517307104 | RH Panel |
| 1010 | 517304090 | RH Insert |
| 1020 | 293150104 | Pop Rivet 3/16" |
| 1030 | 517124300 | Washer |
| 1050 | 517304870 | Foam |
| 1055 | 517304871 | Foam |
| 1200 | 517307105 | LH Panel |
| 1210 | 517304092 | LH Panel Insert |
| 1220 | 293150104 | Pop Rivet 3/16" |
| 1230 | 517124300 | Washer |
| 1250 | 517304874 | Foam |
| 1255 | 517304875 | Foam |
| 1260 | 517304880 | Foam |
| 1400 | 517304999 | Rear Panel Latch |
| 1410 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1600 | 517304093 | Center Panel Latch |
| 1800 | 517305186 | Front Latch Panel |
| 1810 | 517304320 | Anchor Link |
| 1820 | 293150014 | Pop Rivet 3/16" |
| 1830 | 517124300 | Washer |
| 2400a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400b | 515176498 | Cap |
| 2400c | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 2410 | 250000705 | Torx Truss Screw M6 X 20 |
| 2420 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2600a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2600b | 515176498 | Cap |
| 2600c | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 2610 | 250000705 | Torx Truss Screw M6 X 20 |
