Parts Catalog

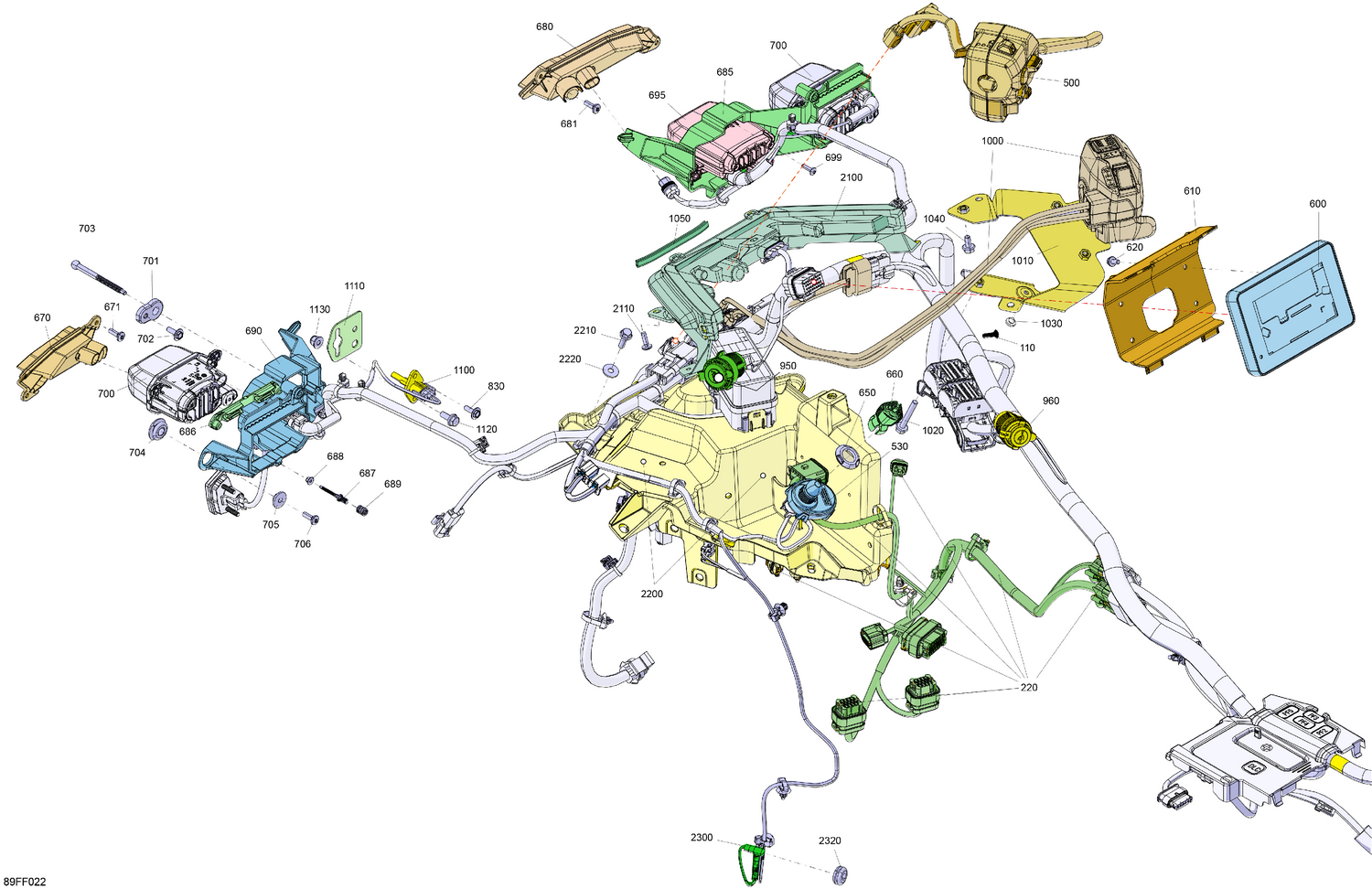

08- Electric - Front Section

Parts (46)

Ref	Part Number	Description
110	250000759	Torx Truss Pt K40 X 16
220	710010869	Wiring Harness Ess
500	710010418	LH Front Multifunction Switch Ass'y
530	710008832	Terminal DESS CAN
600	710011792	Multifunction Gauge 5
610	710010406	Interior Gauge Support
620	207551044	Hex. Flange Screw M5 X 10
650	278004274	Specialized Nut
670	710006495	LH Front Daytime Headlight
671	250000720	Torx Screw K50 X 16
680	710006496	RH Front Daytime Headlight
681	250000720	Torx Screw K50 X 16
685	710009678	RH Front Headlight Support
686	517309049	Support Pivot
687	517309133	Threaded Rod
688	517309134	Specialized Nut
689	517309058	Compression Spring
690	710009677	LH Front Headlight Support
695	710006910	HIgh Beam Light
699	250000759	Torx Truss Pt K40 X 16
700	710008088	Low Beam Light
701	293900157	Ball Socket
702	250000959	Screw PT Type K-50 X 16
703	710005837	Ajustment Screw
704	705003264	Grommet
705	710004749	Shoulder Bushing
706	250000720	Torx Screw K50 X 16
830	250000959	Screw PT Type K-50 X 16
950	710001248	DC Outlet
960	710008594	USB Connector
1000	710010583	Accelerator Hand Lever
1010	710009942	Voltage Regulator Support
1020	207664044	Hex. Flange Screw M6 X 40
1030	293830229	Rubber Stopper
1040	207661244	Hex. Flange Screw M6 X 12
1050	219704354	Trim 1000Mm Long
1100	515176366	Air Temperature Sensor
1110	710009826	Air Temperature Sensor Support
1120	207561646	Hex. Flange Screw M6 X 16, Scotch Grip
1130	233261466	Hex. Flange Elastic Nut M6
2100	710009800	Light Console
2110	250000720	Torx Screw K50 X 16
2200	710009827	Multi Purpose Support
2210	207562034	Hex. Flange Screw M6 X 20, Scotch Grip
2220	234062410	Flat Washer 6 mm
2300	710010720	Pilot Light
