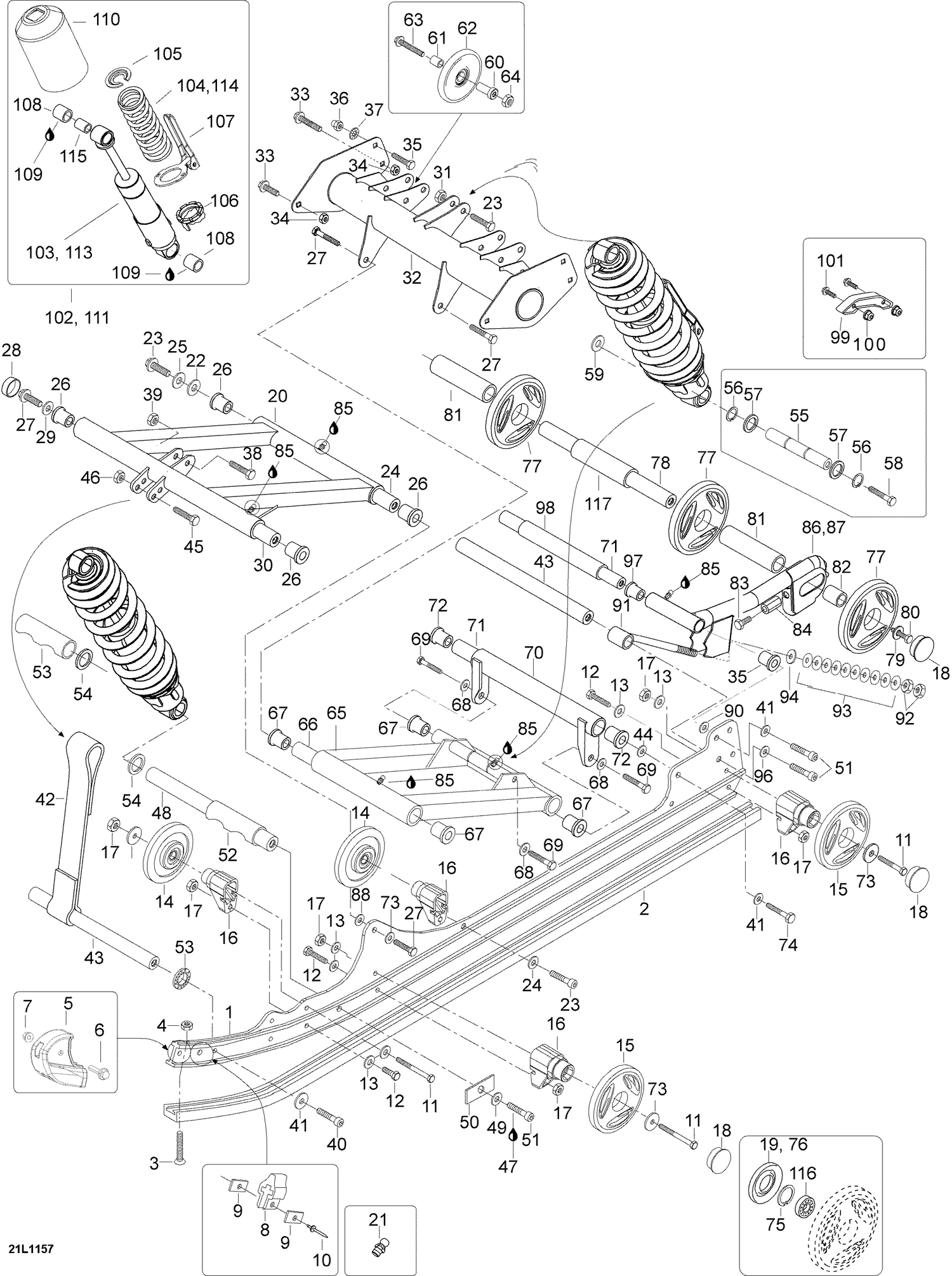

07- Rear Suspension
Parts (108)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191837 | RAIL_SUSPENSION - Call your local BRP dealership |
| 2 | 503192021 | Slider Shoe |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503192299 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 8 | 503192106 | Rubber Stopper |
| 9 | 503191273 | Washer |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 207667044 | Hex Flange Screw M6 x 65 |
| 12 | 207662544 | Hex. Flange Screw M6 X 25 |
| 13 | 503191820 | Wheel Cup M6 |
| 14 | 503191316 | Wheel 141 Ass'y |
| 16 | 503193894 | Casted Support This part replaces 503192793. |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 570063600 | Wheel Cap |
| 19 | 503190434 | Labyrinth Seal |
| 20 | 5147672 | Front arm - Call your local BRP dealership |
| 21 | 408200700 | Grease Fitting |
| 22 | 512056700 | Lock Washer |
| 23 | 207004544 | Hex. Screw M10 X 45 |
| 24 | 5347713 | Lower shaft, front arm |
| 25 | 20116 | Washer |
| 26 | 31024 | Sleeve |
| 27 | 207026044 | HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 28 | 5448025 | Cover |
| 29 | 250200005 | Conical Spring Washer M12 |
| 30 | 5347719 | Upper shaft, front arm |
| 31 | 232500416 | Elastic Stop Nut M10 |
| 32 | 503191743 | REAR BEAM - Call your local BRP dealership |
| 33 | Not | Available As Spare Part - Screw |
| 34 | 232581414 | Hex. Elastic Stop Nut M8 |
| 35 | 207781644 | CARRIAGE BOLT M8 X 16 - Call your local BRP dealership |
| 36 | 33044 | Cap Nut M8 DIN1587-6 Zne(1=10pcs) - Call your local BRP dealership |
| 37 | 20072 | Lock washer |
| 38 | 207005044 | Hex. Screw M10 X 50 |
| 39 | 232500416 | Elastic Stop Nut M10 |
| 40 | 40134 | Screw Socket HD.DIN 912 |
| 41 | 234001410 | Flat Washer 10 mm |
| 42 | 503192033 | Strap Stopper |
| 43 | 5347717 | Shaft, stopper strap |
| 44 | 4181158 | Fixing washer |
| 45 | 207084544 | Hex. Screw M8 X 45 |
| 46 | 232581414 | Hex. Elastic Stop Nut M8 |
| 47 | 293800005 | Loctite 271, 10 ml |
| 48 | 5347726 | Lower shaft, shock |
| 49 | 20068 | Lock washer |
| 50 | 5447940 | Supprot washer |
| 51 | 205004547 | SCREW-SOCKET HD.DIN 912 - Call your local BRP dealership |
| 52 | 5347718 | Limiter - Call your local BRP dealership |
| 53 | 5346649 | Sleeve - Call your local BRP dealership |
| 54 | 31013 | Shim Ring |
| 55 | 605451897 | REARSHOCK SHAFT - Call your local BRP dealership |
| 56 | 293370056 | Circlip 20X1.75 DIN471 |
| 57 | 31091 | Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership |
| 58 | 207004044 | Hex. Screw M10 X 40 |
| 59 | 20068 | Lock washer |
| 60 | 503192085 | IDLER WHEEL SLEEVE - Call your local BRP dealership |
| 61 | 503192086 | IDLER WHEEL SLEEVE - Call your local BRP dealership |
| 62 | 503191316 | Wheel 141 Ass'y |
| 63 | 207087044 | Hex. Screw M8 X 70 |
| 64 | 232581414 | Hex. Elastic Stop Nut M8 |
| 65 | 605349313 | Rear Arm Weld Light |
| 66 | 5346865 | SHAFT - Call your local BRP dealership |
| 67 | 31027 | Sleeve |
| 68 | 234001410 | Flat Washer 10 mm |
| 69 | 207004044 | Hex. Screw M10 X 40 |
| 70 | 5347668 | Rear swing - Call your local BRP dealership |
| 71 | 5347713 | Lower shaft, front arm |
| 72 | 31024 | Sleeve |
| 73 | 20116 | Washer |
| 74 | 207004544 | Hex. Screw M10 X 45 |
| 75 | 512056700 | Lock Washer |
| 76 | 570063600 | Wheel Cap |
| 78 | 503191408 | Rear Axle |
| 79 | 503190439 | Washer |
| 80 | 207303544 | Hex. Screw M10 x 35 (Scotch Grip) |
| 81 | 503192047 | SPACER - Call your local BRP dealership |
| 82 | 503192048 | Spacer |
| 83 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 84 | 605633002 | Spacer |
| 85 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 88 | 20116 | Washer |
| 90 | 512056700 | Lock Washer |
| 91 | 5447373 | Screw for spring |
| 92 | 232006414 | Hex. Nut M10 |
| 93 | 25004 | Cup Spring |
| 94 | 234002410 | Flat Washer 10 mm |
| 96 | 234001410 | Flat Washer 10 mm |
| 97 | 31024 | Sleeve / Bearing |
| 98 | 605448429 | Sleeve |
| 99 | 503192731 | SLIDING PAD - Call your local BRP dealership |
| 100 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 101 | 207764044 | BOLT CARRIAGE DIN.603 - Call your local BRP dealership |
| 103 | 503192311 | Shock |
| 104 | 503192359 | WHITE SPRING 255 MM - 70 N/MM - Call your local BRP dealership |
| 105 | 230076 | Spring Seat |
| 106 | 230078 | Adjusting Cam |
| 107 | 605348748 | ARM ADJUSTING ASS'Y - Call your local BRP dealership |
| 108 | 31094 | Cushion |
| 109 | 32161 | Glue. Loctite |
| 110 | 5346754 | Shock protector |
| 111 | Not | Available As Spare Part - Shock ass'y front arm |
| 113 | 503191847 | Shock front arm |
| 114 | 503192358 | Spring 237 mm - 65 N/mm |
| 115 | 5446652 | Bushing |
| 116 | 293350115 | Ball Bearing This part replaces 293350055. |
