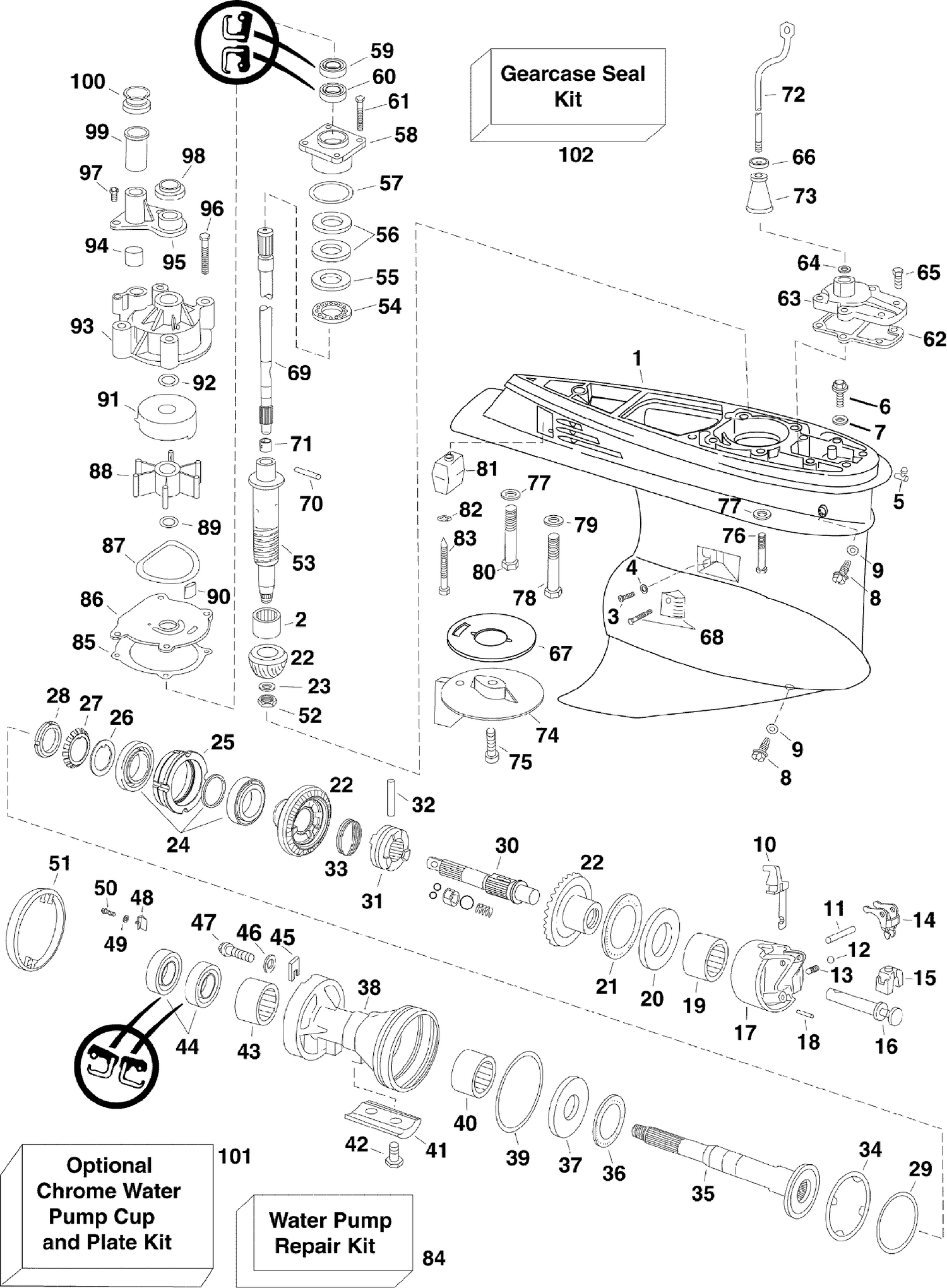

GEARCASE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 69 | 5007137 | DRIVESHAFT Assembly, Upper |
| 72 | 0352808 | SHIFT ROD |
| 74 | 0338743 | TRIM TAB |
| 75 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 76 | 0331999 | SCREW, Gearcase housing |
| 78 | 0331998 | SCREW, Gearcase to housing |
| 80 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 84 | 5001595 | Water Pump Repair Kit |
| 87 | 0331353 | Seal, Impeller Housing Plate. |
| 92 | 0331188 | O-Ring |
| 101 | 0435526 | CHROME CUP & PLATE KIT |
