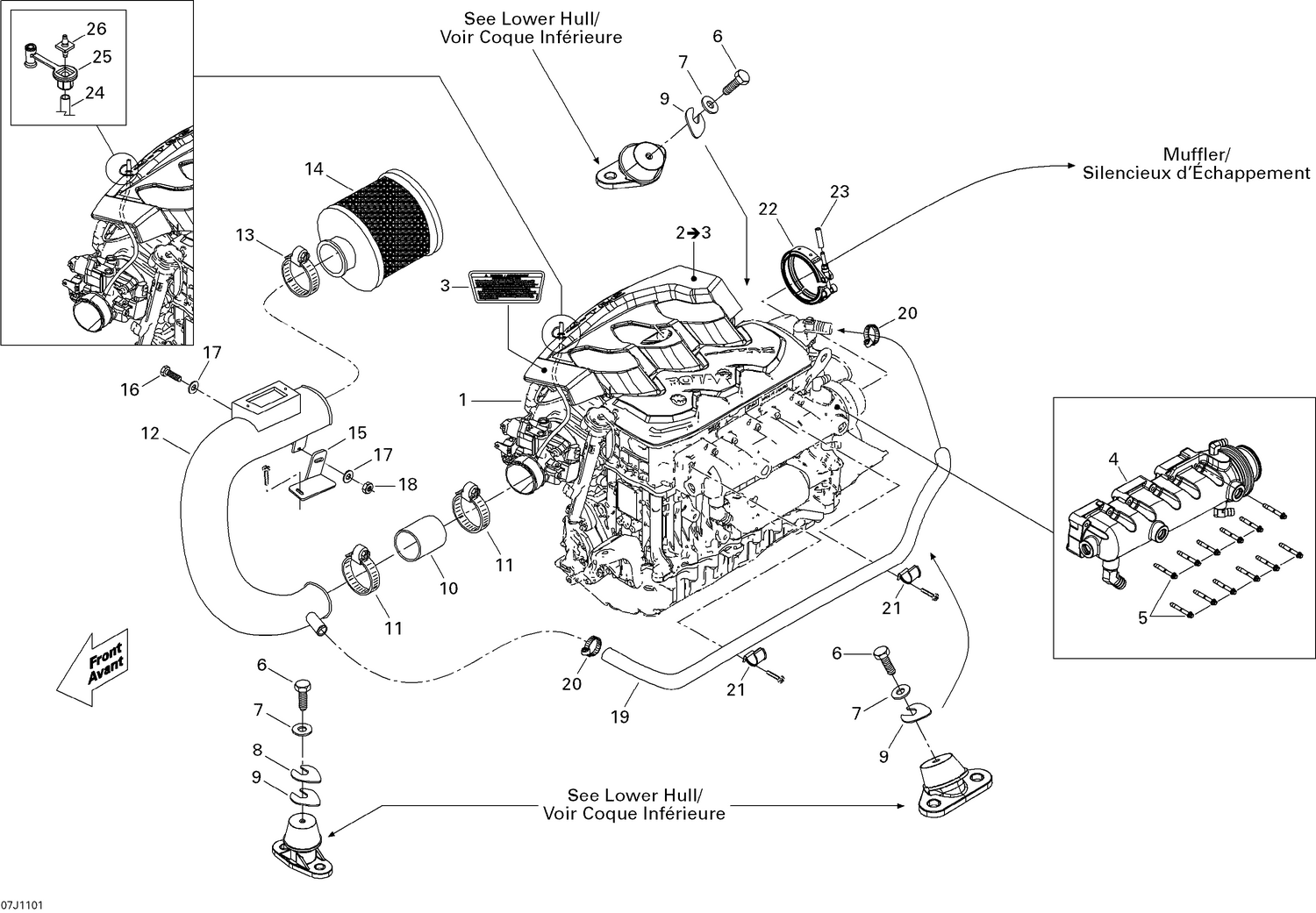

| Ref | Part Number | Description |
|---|
| 1 |
420150392 |
Engine Long Block This part replaces 420150317. |
| 3 |
219902674 |
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership |
| 4 |
296000422 |
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001434. |
| 5 |
420641198 |
Torx Flange Screw M6 X 45 |
| 6 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 7 |
234082600 |
Flat Washer 8 mm, Stainless |
| 8 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 9 |
270000024 |
SHIM 0.4 MM - Call your local BRP dealership |
| 10 |
204250400 |
INTAKE HOSE - Call your local BRP dealership |
| 11 |
293650061 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 12 |
204250439 |
AIR INTAKE TUBE - Call your local BRP dealership |
| 13 |
293650179 |
Tridon Clamp |
| 14 |
204250466 |
Air Filter This part replaces 204250436. |
| 15 |
204250407 |
BRACKET - Call your local BRP dealership |
| 16 |
207163060 |
Hex. Screw M6 X 30 |
| 17 |
211200055 |
Flat Washer, Stainless/Neoprene |
| 18 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 19 |
270000949 |
Formed Hose This part replaces 270000809. |
| 20 |
293650051 |
Tridon Gear Clamp |
| 21 |
275500664 |
Retainer |
| 22 |
274001417 |
Exhaust Clamp |
| 23 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 24 |
270000469 |
HOSE 3 MM - Call your local BRP dealership |
| 25 |
293830120 |
GROMMET CAP - Call your local BRP dealership |
| 56 |
420150392 |
Engine Long Block This part replaces 421000641. |
