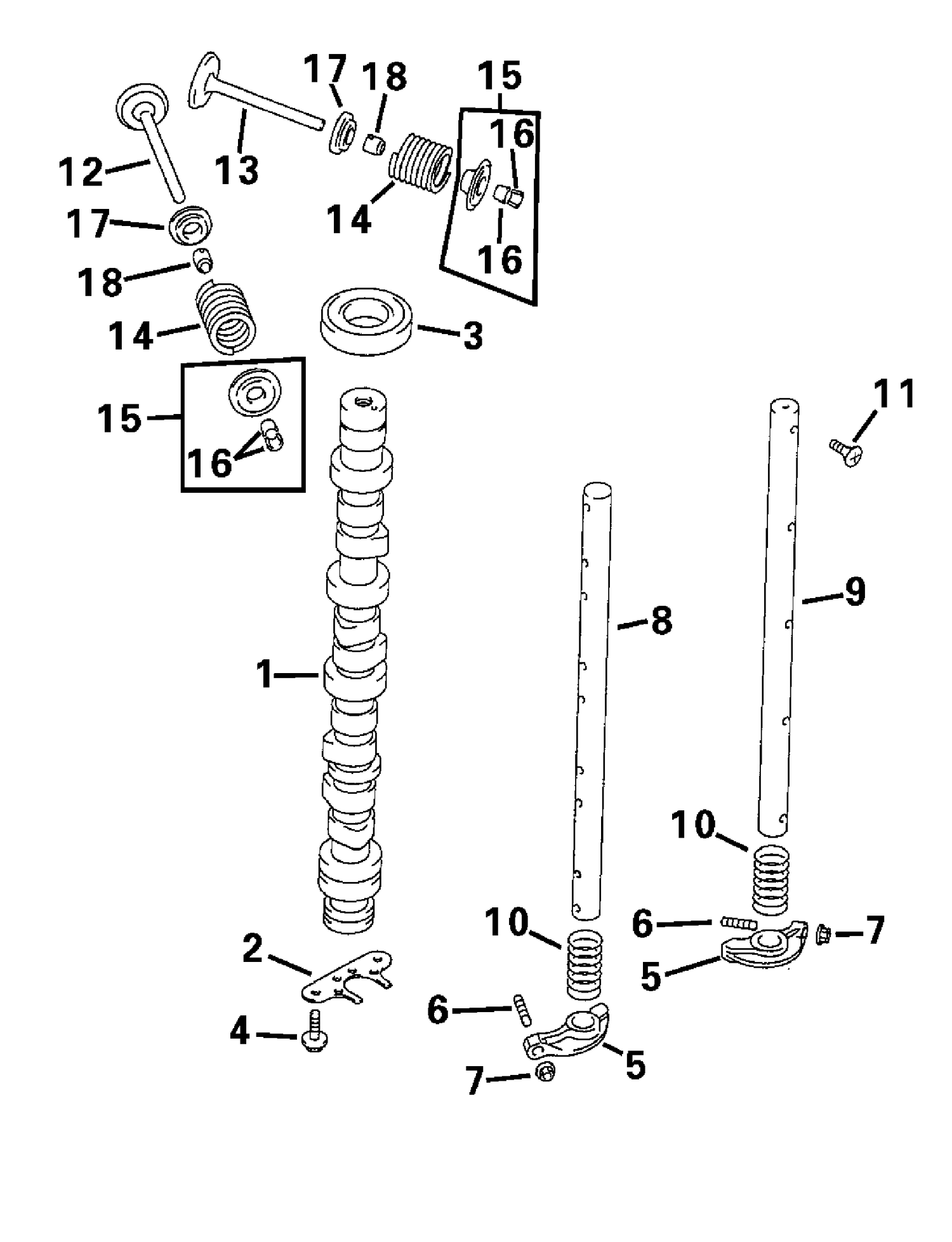

CAMSHAFT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032212 | CAMSHAFT |
| 2 | 5030658 | PLATE, Camshaft thrust |
| 5 | 5032213 | ARM, Rocker |
| 6 | 5030664 | SCREW, Valve adjusting |
| 7 | 5030424 | NUT |
| 8 | 5030665 | SHAFT, Intake rocker arm |
| 9 | 5030666 | SHAFT, Exhaust rocker arm |
| 10 | 5030667 | SPRING, Rocker arm |
| 11 | 5037552 | SCREW This part replaces 5031008. |
| 12 | 5030669 | VALVE, Intake |
| 13 | 5030670 | VALVE, Exhaust |
| 14 | 5030671 | SPRING, Valve |
| 15 | 5033505 | RETAINER, Cotter valve set This part replaces 5030668. |
| 17 | 5030673 | SEAT, Valve spring |
