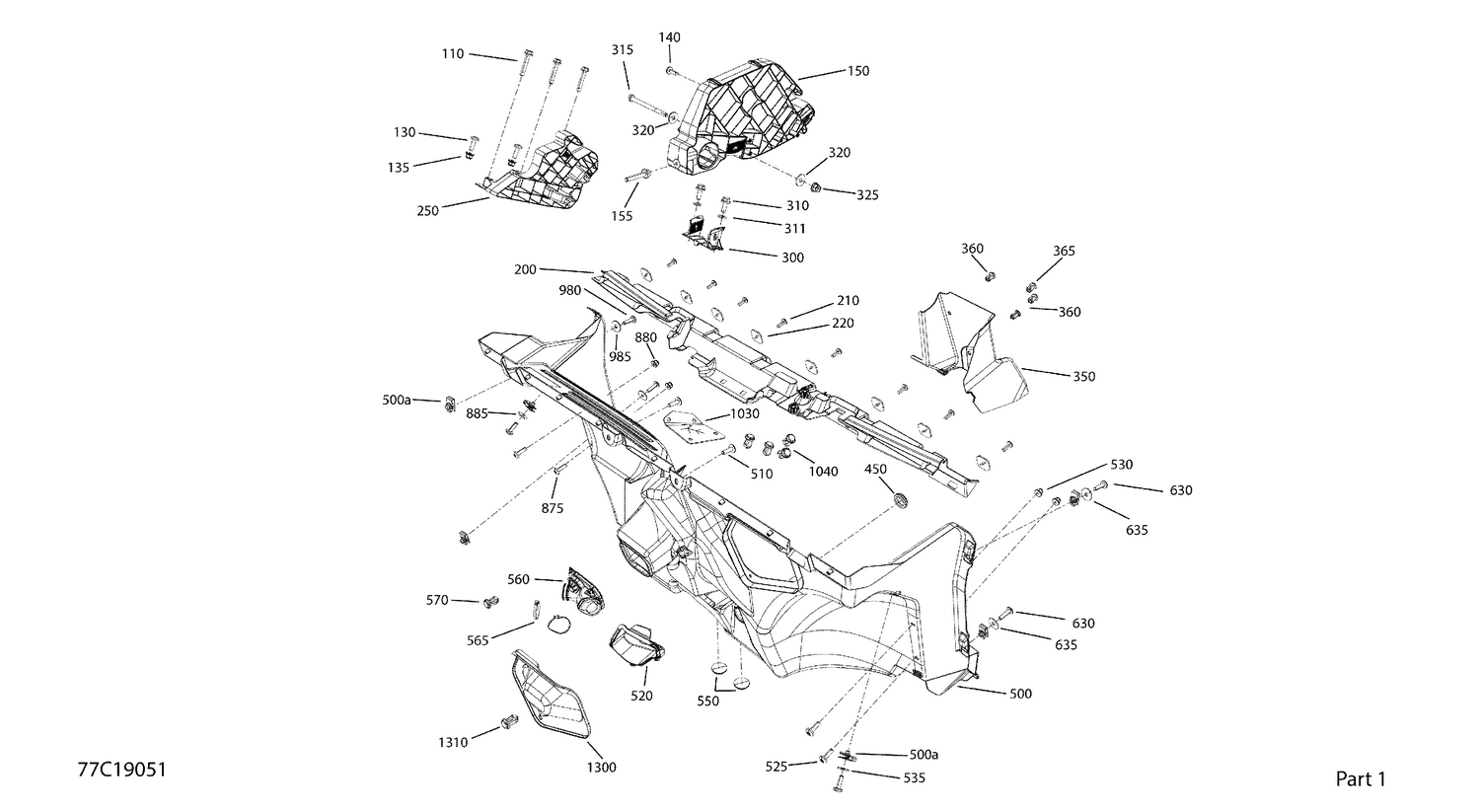

09- Cab Interior Defender & Traxter MAX - Lower front Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 715006522 | Dashboard Upper Kit This part replaces 715005590. |
| 110 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 130 | 250000712 | Torx Screw M6 X 20 |
| 135 | 233261494 | Hex. Flange Elastic Nut M6 |
| 140 | 250000720 | Torx Screw K50 X 16 |
| 150 | 707900249 | Dash Support |
| 155 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 200 | 707900296 | Upper Front Deflector |
| 210 | 250000720 | Torx Screw K50 X 16 |
| 220 | 705003841 | Support Plate |
| 250 | 707900367 | RH Support |
| 300 | 707900940 | Plier This part replaces 707900402. |
| 310 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 311 | 234061410 | Flat Washer 6 mm |
| 315 | 207068044 | Hex. Screw M6 X 80 |
| 320 | 234062670 | Stainless Steel Flat Washer |
| 325 | 233261494 | Hex. Flange Elastic Nut M6 |
| 350 | 707900289 | Front Bulkhead Cover |
| 360 | 293150230 | Tuflok Plastic Rivet |
| 365 | 293150230 | Tuflok Plastic Rivet |
| 450 | 293250242 | Rubber Cover |
| 500a | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 707900408 | DPS Cover |
| 525 | 250000712 | Torx Screw M6 X 20 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 535 | 234062670 | Stainless Steel Flat Washer |
| 550 | 291002744 | Bumber Cap |
| 560 | 707900390 | RH Rubber Cover |
| 565 | 293750008 | Tie Wrap 368 mm |
| 570 | 293150230 | Tuflok Plastic Rivet |
| 630 | 250000807 | Torx Truss Screw M6 X 25 |
| 635 | 250200162 | Flat Washer M6.6 X 22 |
| 875 | 250000712 | Torx Screw M6 X 20 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
| 885 | 234062670 | Stainless Steel Flat Washer |
| 980 | 250000807 | Torx Truss Screw M6 X 25 |
| 985 | 250200162 | Flat Washer M6.6 X 22 |
| 1030 | 707900645 | STEERING COLUMN DEFLECTOR - Call your local BRP dealership |
| 1040 | 293150230 | Tuflok Plastic Rivet |
| 1300 | 707900389 | Exterior Cover |
