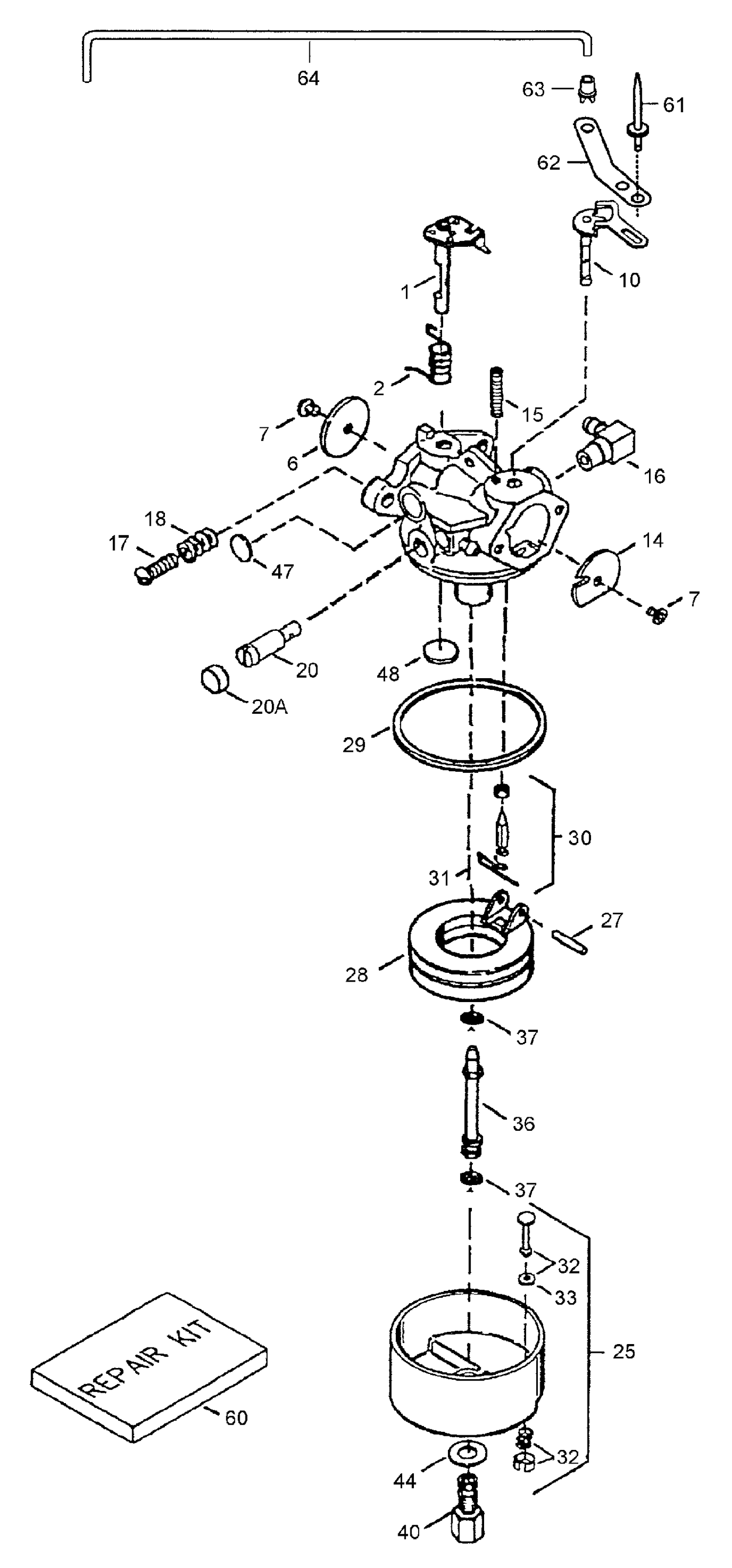

02- Carburetor
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | T631615 | Throttle Shaft |
| 2 | T631767 | Throttle Return Spring |
| 6 | T640070 | Throttle Shutter |
| 7 | T650506 | Shutter Screw |
| 10 | T632108 | Choke Shaft |
| 14 | T631890 | Choke Shutter |
| 15 | T630735 | Choke spring |
| 16 | T631807 | Fuel Fitting |
| 17 | T651025 | Idle Speed Screw |
| 18 | T630766 | Tension Spring |
| 20 | T640018 | Idle restrictor screw |
| 20A | T640053 | Tension Spring |
| 25 | T631951 | Float Bowl Ass’y. |
| 27 | T631024 | Float Shaft |
| 28 | T632019 | Float |
| 29 | T631028 | Float Bowl "0" Ring |
| 30 | T631021 | Needle valve |
| 31 | T631022 | Spring Clip |
| 32 | T27136A | Bowl Drain Assemb. |
| 33 | T27554 | Drain Plunger Gasket |
| 36 | T632745 | Main nozzle tube |
| 37 | T632547 | O-Ring |
| 40 | T640166 | Bowl nut, high speed |
| 44 | T27110A | Bowl Nut Washer |
| 47 | T630748 | Welch Plug |
| 48 | T631027 | Welch Plug |
| 61 | 36005 | Rivet |
| 62 | 5441825 | Plate |
| 63 | 28415 | Nipple |
