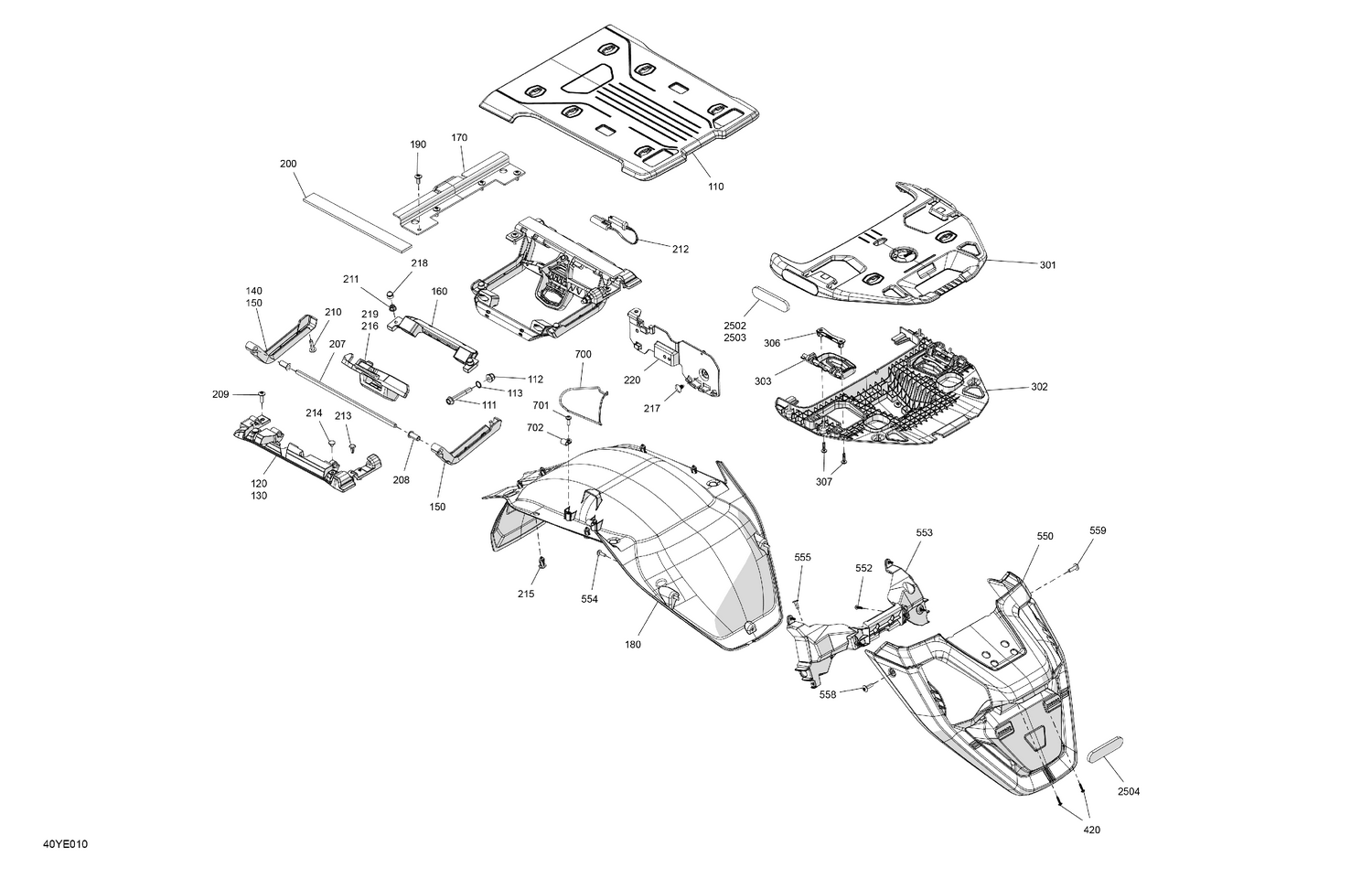

07- Body - Cargo Structure And Rear Fenders
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 708304808 | Multi Purpose Plate |
| 111 | 250000824 | Hex. Flange Screw M8 X 58 |
| 112 | 233281466 | Elastic Flange Nut M8 |
| 113 | 293300013 | O-Ring |
| 120 | 708304806 | LH Rear Support |
| 130 | 708304807 | RH Rear Support |
| 140 | 708304804 | LH Rear Pivot Arm |
| 150 | 708304805 | RH Rear Pivot Arm |
| 160 | 708304809 | Rotating Link Arms |
| 170 | 708304881 | Anchorage Support |
| 180 | 708304265 | Wheel Arch |
| 190 | 250000717 | Torx Head Screw M6 X 16 |
| 200 | 708304353 | Shim |
| 207 | 708304342 | Pivot Arm Axle |
| 208 | 708304402 | Shouldered Bushing |
| 209 | 250000722 | Torx Screw M6 X 20 |
| 210 | 250001000 | Torx-Truss M/S M6 X 25 |
| 211 | 233261494 | Hex. Flange Elastic Nut M6 |
| 212 | 705602303 | Linq Position Sensor |
| 213 | 293730024 | Dart, Fastex |
| 214 | 293830243 | Rubber Stopper |
| 215 | 293150230 | Tuflok Plastic Rivet |
| 216 | 708304348 | LINQ Support |
| 217 | 414644300 | Black, Dart |
| 218 | 269500806 | Cap |
| 219 | 708304347 | Linq Support |
| 220 | 708304781 | Wiring Harness Support |
| 301 | 708304455 | Rear Upper Plate |
| 302 | 708304341 | Rear Bottom Plate |
| 303 | 708304460 | Rear Fastener Linq |
| 306 | 708305205 | Accessory Support |
| 307 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 420 | 250001123 | Hex. Flange Screw K40 X 16 |
| 550 | 708304352 | Rear Fairing |
| 552 | 250001123 | Hex. Flange Screw K40 X 16 |
| 553 | 708304827 | Fairing Support |
| 554 | 250000720 | Torx Screw K50 X 16 |
| 555 | 293730024 | Dart, Fastex |
| 558 | 250000722 | Torx Screw M6 X 20 |
| 559 | 250000722 | Torx Screw M6 X 20 |
| 700 | 520003477 | Strap |
| 701 | 250000720 | Torx Screw K50 X 16 |
| 702 | 293650257 | Hose Clamp |
| 2502 | 705015551 | Red, Reflector |
| 2503 | 705015551 | Red, Reflector |
