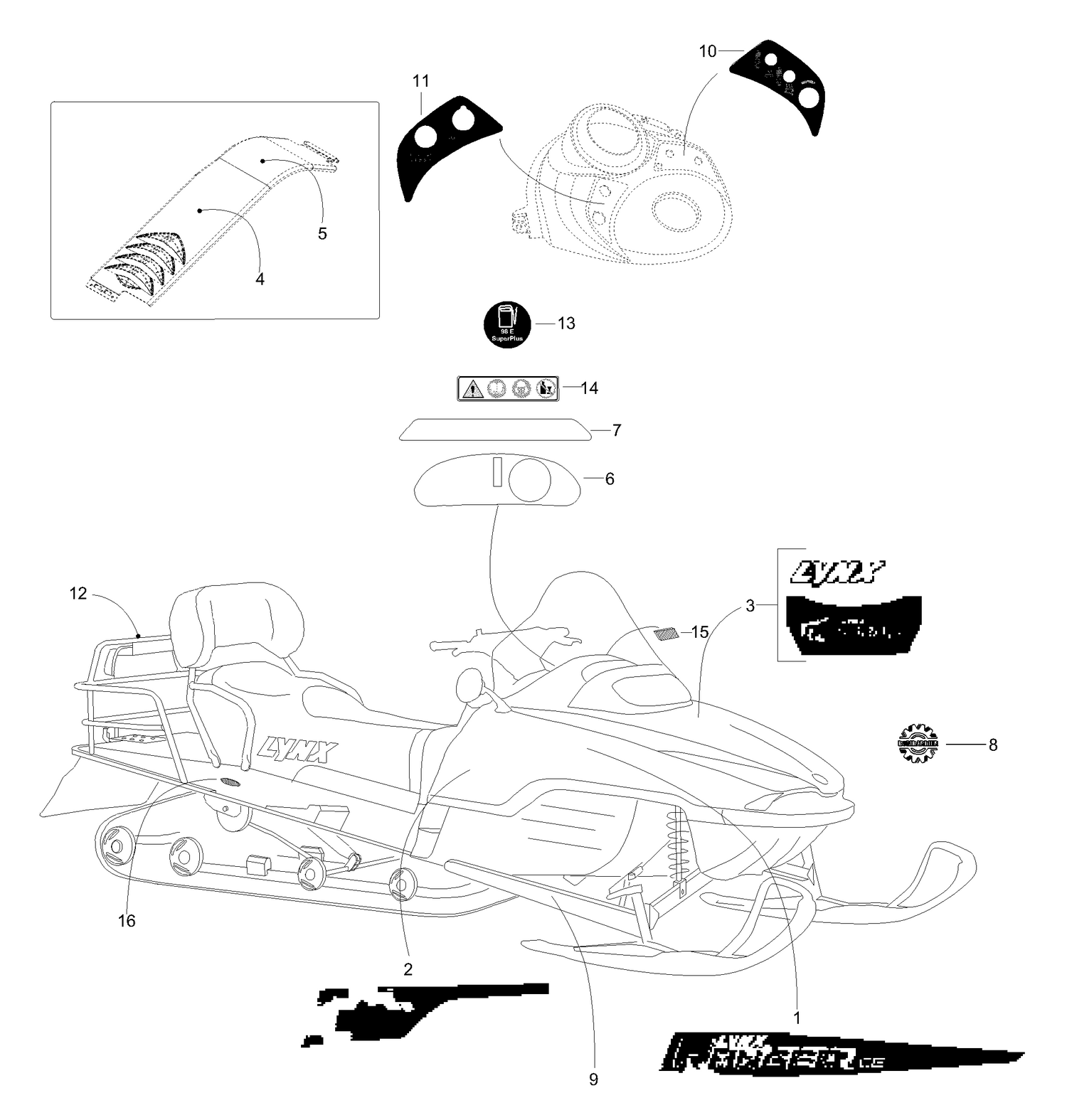

09- Decals
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5147167 | L.H. Hood decal, upper |
| 1 | 5147168 | R.H. Hood decal, upper |
| 2 | 5147169 | L.H. lower decal, hood |
| 2 | 5147170 | R.H. lower decal, hood |
| 3 | 5247171 | Hood decal, front |
| 4 | 546820 | Pulley decal |
| 5 | 544068 | Oil check decal |
| 6 | 5346799 | Control panel decal |
| 7 | 5346800 | Instruction decal |
| 8 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 9 | 5247403 | L.H. Decal, swing arm |
| 9 | 5247404 | R.H. Decal, swing arm |
| 10 | 5447918 | Grip heater decal/RER |
| 11 | 5446932 | Decal, DESS/electric s. |
| 12 | 5447930 | Instruction symbol decal |
| 13 | 5447020 | Fuel label |
| 14 | 5447124 | Instruction symbol decal |
| 15 | 21060 | Reflector, bright |
