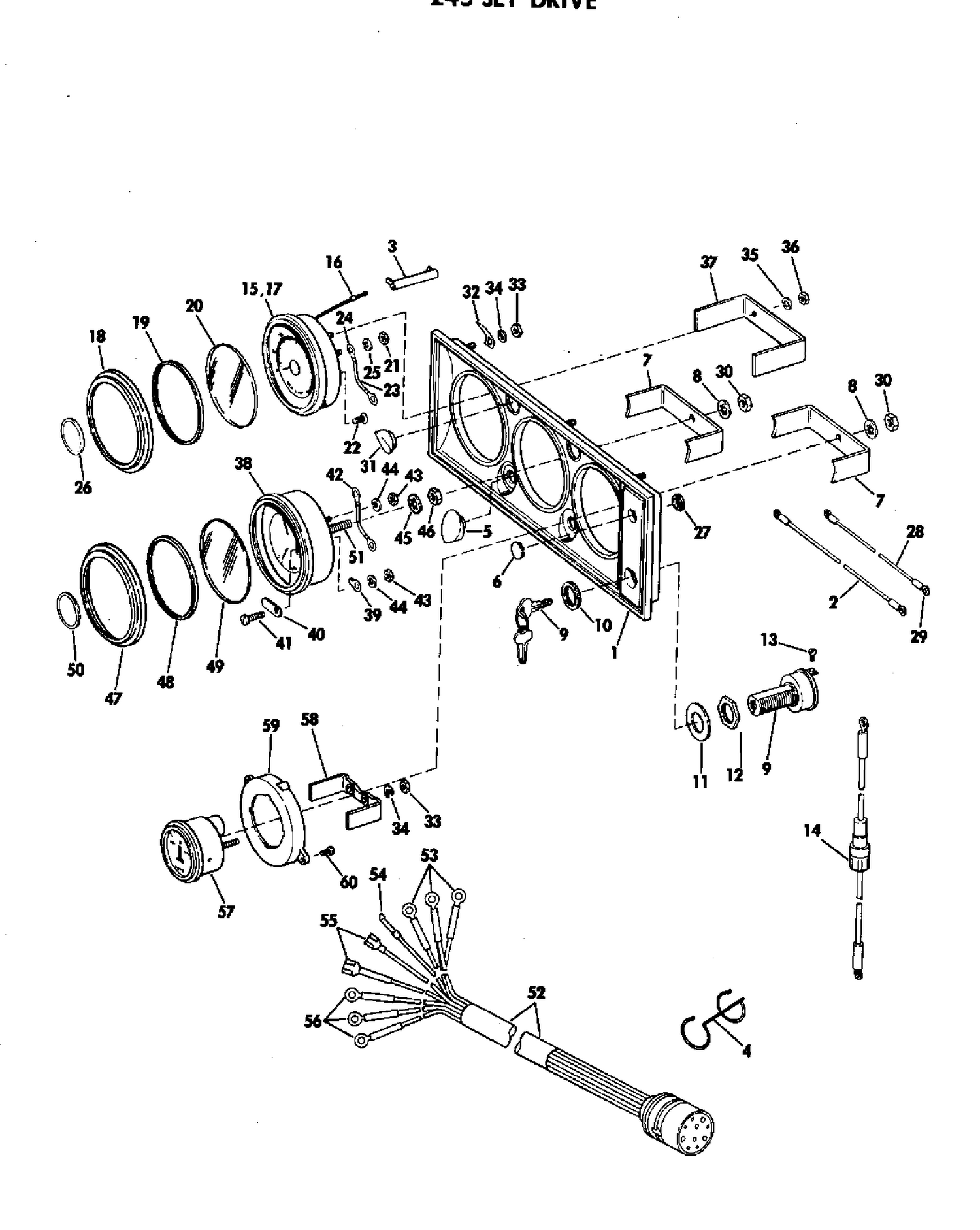

INSTRUMENT PANEL ASSEMBLY 245 JET DRIVE
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0172294 | PANEL & STUD ASSY |
| 2 | 0172055 | LEAD ASSEMBLY |
| 5 | 0121810 | PLUG, Switch hole |
| 6 | 0309024 | PLUG |
| 9 | 0386545 | IGNITION SWITCH & KEY ASSY This part replaces 0378238. |
| 14 | 0378334 | FUSE HOLDER & LEAD ASSEMBLY |
| 15 | 0172045 | TACHOMETER |
| 17 | 0171759 | CASE ASSEMBLY |
| 18 | 0121346 | BEZEL |
| 19 | 0121347 | SEAL |
| 20 | 0121349 | LENS |
| 22 | 0121354 | MOUNTING SCREW, Instrument |
| 23 | 0172140 | GROUND WIRE ASSEMBLY |
| 25 | 0304642 | LOCKWASHER |
| 26 | 0121720 | BITTON,Trim |
| 27 | 0121996 | BUSHING |
| 28 | 0172060 | LEAD ASSEMBLY, Ground |
| 31 | 0121824 | PLUG |
| 32 | 0121811 | CLAMP, Mounting |
| 35 | 0304642 | LOCKWASHER |
| 37 | 0121350 | BRACKET |
| 38 | 0172057 | OIL PRESS./WATER TEMP. GAUGE |
| 40 | 0121819 | BLADE |
| 41 | 0314376 | SCREW |
| 42 | 0172058 | CONNECTOR WIRE |
| 44 | 0304141 | LOCKWASHER |
| 47 | 0121346 | BEZEL |
| 48 | 0121347 | SEAL |
| 49 | 0121349 | LENS |
| 50 | 0121720 | BITTON,Trim |
| 51 | 0121818 | SCREW |
| 52 | 0172290 | CABLE ASSEMBLY |
| 52 | 0172328 | CABLE ASSEMBLY |
| 57 | 0380444 | AMMETER |
| 59 | 0121807 | PLUG, Large |
| 0172051 | 0172051 | TACHOMETER ASSEMBLY |
