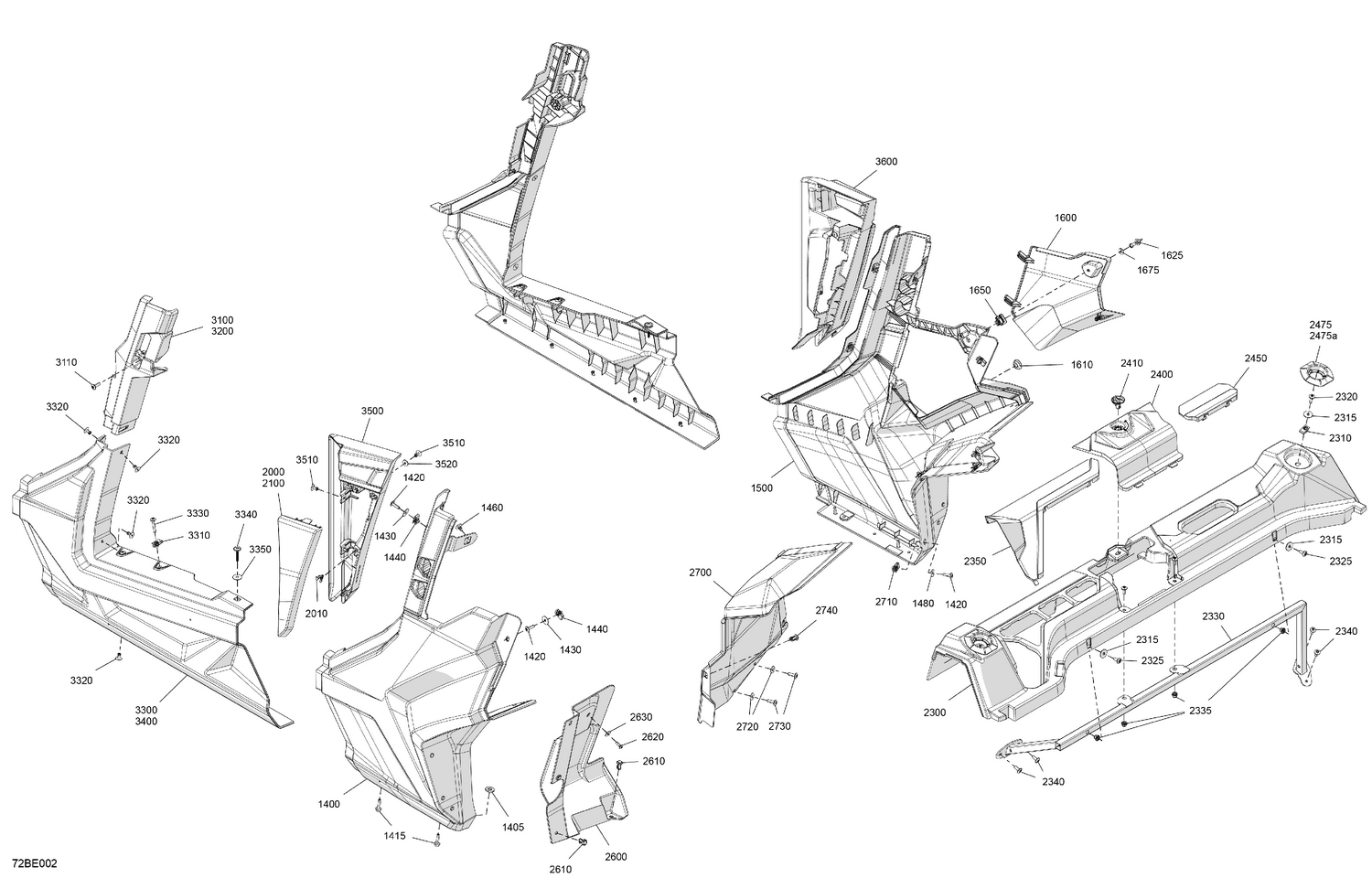

07- Body - Rear Section
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1400 | 705015053 | LH Rear Fender |
| 1405 | 503192494 | Washer |
| 1415 | 207662554 | Hex. Flange Screw M6 X 25 |
| 1420 | 250000722 | Torx Screw M6 X 20 |
| 1430 | 250200162 | Flat Washer M6.6 X 22 |
| 1440 | 250100198 | Panel Nut M6 X 1.0 |
| 1460 | 414644300 | Black, Dart |
| 1480 | 234062670 | Stainless Steel Flat Washer |
| 1500 | 705015055 | RH Rear Fender |
| 1600 | 705015057 | Air Filter Acces Door |
| 1610 | 705003264 | Grommet |
| 1625 | 708400278 | Quarter Turn |
| 1650 | 708400285 | Clip |
| 1675 | 708400286 | Washer |
| 2000 | 705018821 | Compass Green, LH Rear Panel Trim |
| 2010 | 517306478 | Clip |
| 2100 | 705018822 | Compass Green, RH Rear Panel Trim |
| 2300 | 715008563 | Rear Upper Cab Panel Ass'y |
| 2310 | 250100198 | Panel Nut M6 X 1.0 |
| 2315 | 250200162 | Flat Washer M6.6 X 22 |
| 2320 | 250000722 | Torx Screw M6 X 20 |
| 2325 | 250000722 | Torx Screw M6 X 20 |
| 2330 | 705015686 | Cab Panel Support |
| 2335 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 2340 | 250000721 | Torx Truss Screw M6 X 16 |
| 2350 | 705011339 | CVT Air Inlet Cover |
| 2400 | 705015149 | Liquid Acces Cover |
| 2410 | 708400065 | Cover Latch Quarter Turn |
| 2450 | 705011340 | Air Intake Cover |
| 2475a | 705015862 | Rear Cage Trim |
| 2600 | 705015886 | LH Rear Wheel Arch Protector |
| 2610 | 293150230 | Tuflok Plastic Rivet |
| 2620 | 250000720 | Torx Screw K50 X 16 |
| 2630 | 250200025 | Washer M5 |
| 2700 | 705016135 | RH Rear Wheel Arch Protector |
| 2710 | 250100198 | Panel Nut M6 X 1.0 |
| 2720 | 234062670 | Stainless Steel Flat Washer |
| 2730 | 250000807 | Torx Truss Screw M6 X 25 |
| 2740 | 293150230 | Tuflok Plastic Rivet |
| 3100 | 705011430 | LH Median Side Panel |
| 3110 | 250000722 | Torx Screw M6 X 20 |
| 3200 | 705011431 | RH Median Side Panel |
| 3300 | 705013190 | LH Rear Rocker Panel |
| 3310 | 250100198 | Panel Nut M6 X 1.0 |
| 3320 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3330 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 3340 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 3350 | 250200162 | Flat Washer M6.6 X 22 |
| 3400 | 705013191 | RH Rear Rocker Panel |
| 3500 | 705013140 | LH Rear Fixed Panel |
| 3510 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3520 | 250200025 | Washer M5 |
