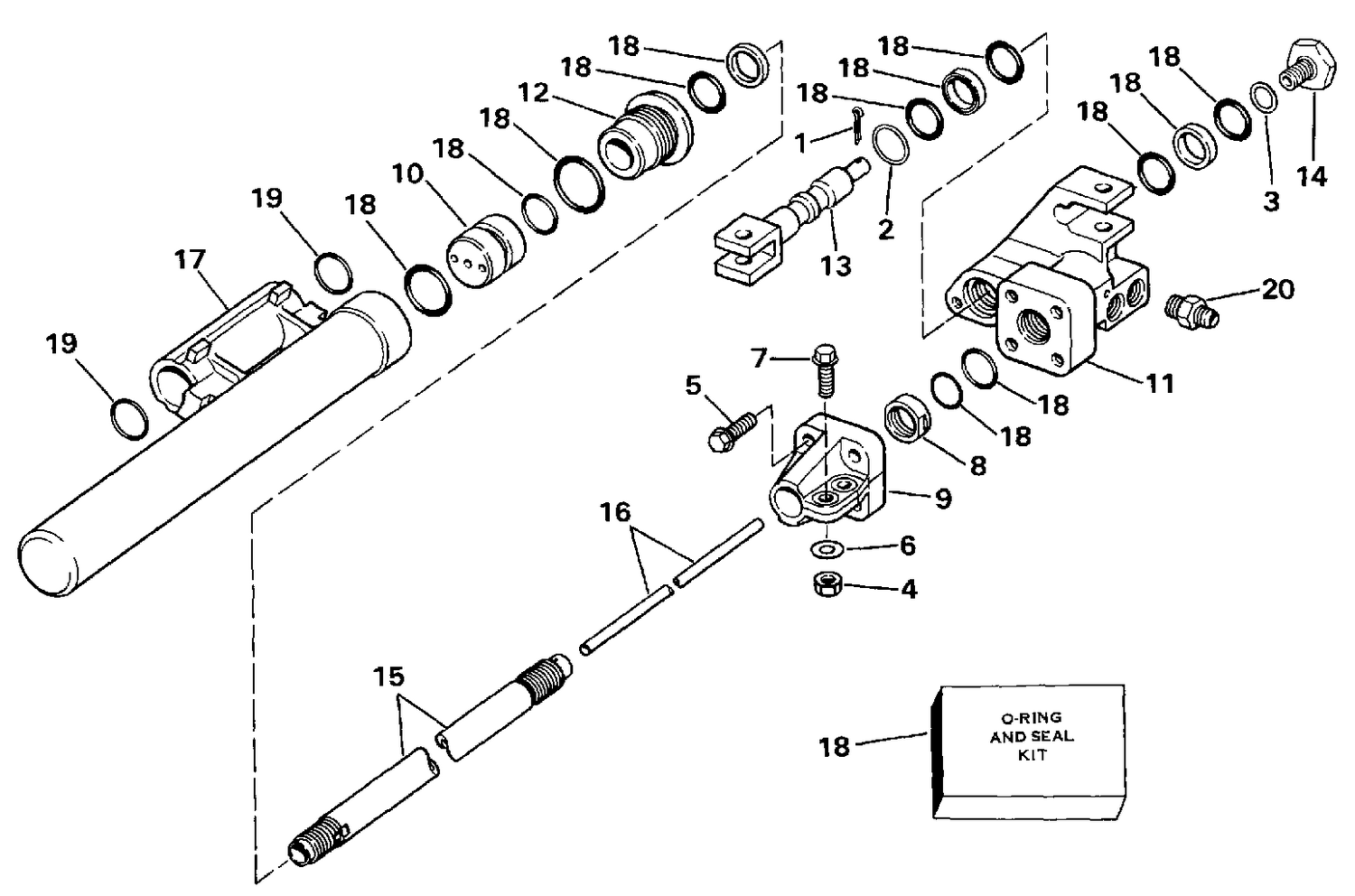

CYLINDER & VALVE ASSEMBLY
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0912382 | SHIM, Spool value, large end |
| 3 | 0912354 | SHIM, Spool valve, small end |
| 8 | 0912090 | LOCKNUT, Tube to spool valve housing |
| 9 | 0912089 | SUPPORT, Tube to spool valve housing |
| 10 | 0912080 | PISTON, Cylinder |
| 11 | 0984145 | HOUSING & PLUG ASSY., Stbd |
| 12 | 0912082 | CYLINDER, Port |
| 13 | 0984484 | SPOOL VALVE |
| 14 | 0912381 | END CAP |
| 15 | 0912085 | TUBE, Piston to spool valve housing |
| 16 | 0912086 | TUBE, Inner |
| 17 | 0912088 | CYLINDER, Starboard |
| 19 | 0314491 | O RING |
| 0984136 | 0984136 | CYLINDER & VALVE ASSY |
