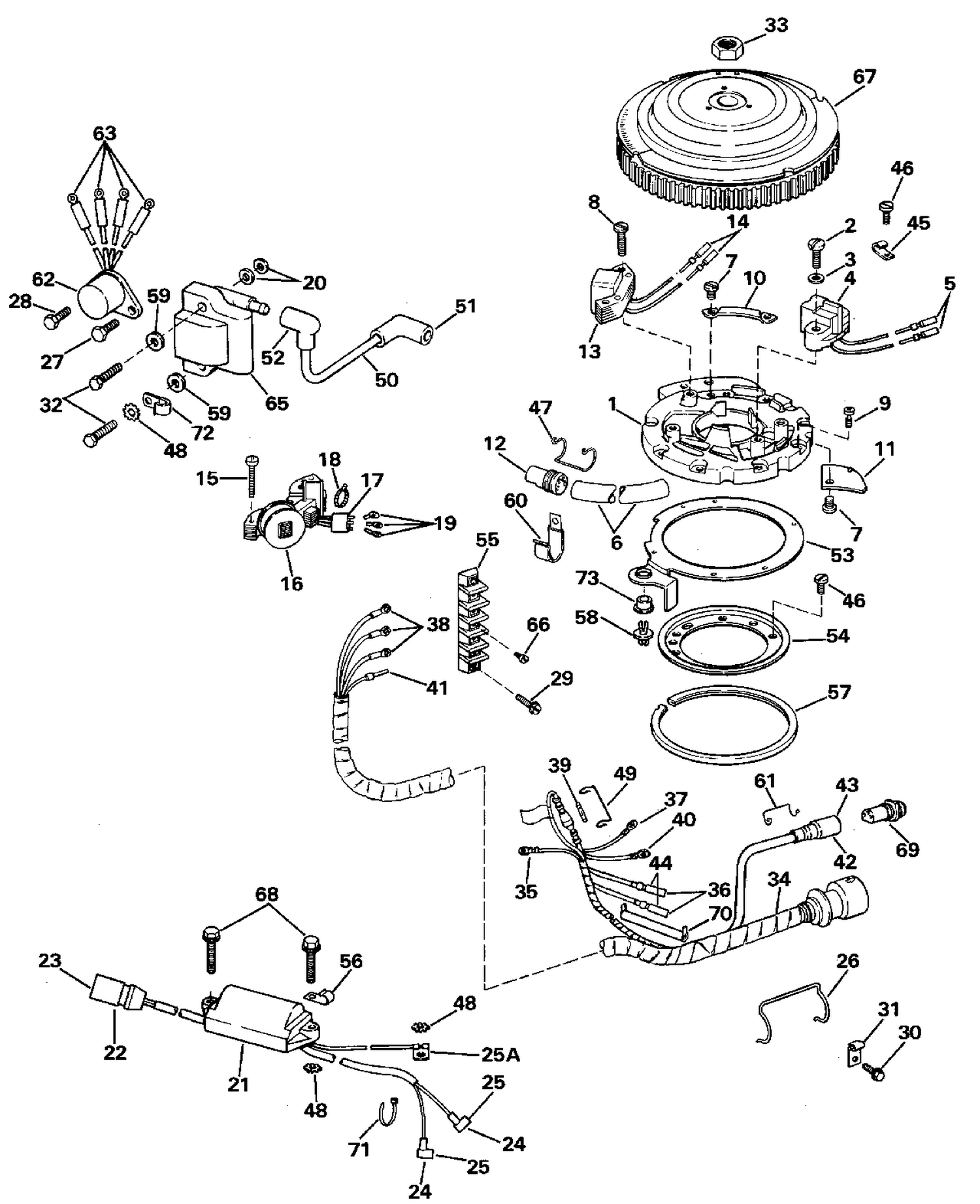

| Ref | Part Number | Description |
|---|
| 1 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 4 |
0583387 |
SENSOR ASSEMBLY |
| 6 |
0512765 |
BRACKET |
| 7 |
0303212 |
VIS, collier & capot |
| 9 |
0511460 |
VIS, dispositif de retenue |
| 10 |
0511458 |
COLLIER, fils |
| 11 |
0511459 |
CACHE, fils |
| 13 |
0581670 |
CHARGE COIL |
| 16 |
0582926 |
STATOR |
| 20 |
0328738 |
LOCKWASHER |
| 21 |
0586800 |
POWER PACK ASSEMBLY This part replaces 0582285. |
| 27 |
0328731 |
VIS, câble de verrouillage |
| 28 |
0314576 |
SCREW This part replaces 0328720. |
| 30 |
0313117 |
SCR,Clamp,eng cable |
| 32 |
0328726 |
SCREW (Use existing coil screw) |
| 33 |
0326111 |
NUT |
| 34 |
0583602 |
MOTOR CABLE ASSY |
| 46 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 47 |
0512743 |
DISPOSITIF DE RETENUE |
| 50 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 53 |
0334193 |
RETAINER, Ign. plate assy. |
| 54 |
0332063 |
PLATE, Support |
| 55 |
0511563 |
TERMINAL BLOCK |
| 57 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 58 |
0330368 |
BUSHING, Timber base |
| 60 |
0330157 |
CLAMP |
| 61 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 62 |
0581778 |
REDRESSEUR |
| 64 |
0313117 |
SCR,Clamp,eng cable This part replaces 0330199. |
| 65 |
0583737 |
COIL ASSEMBLY |
| 66 |
0329182 |
VIS, borne |
| 67 |
0583696 |
FLYWHEEL ASSEMBLY This part replaces 0583012. |
| 68 |
0328726 |
SCREW (Use existing coil screw) |
| 69 |
0513366 |
Male Plug. 3 Terminal This part replaces 0582291. |
| 72 |
0310441 |
CLAMP, CPS lead |
| 0583389 |
0583389 |
ARMATURE PLATE ASSY. |
