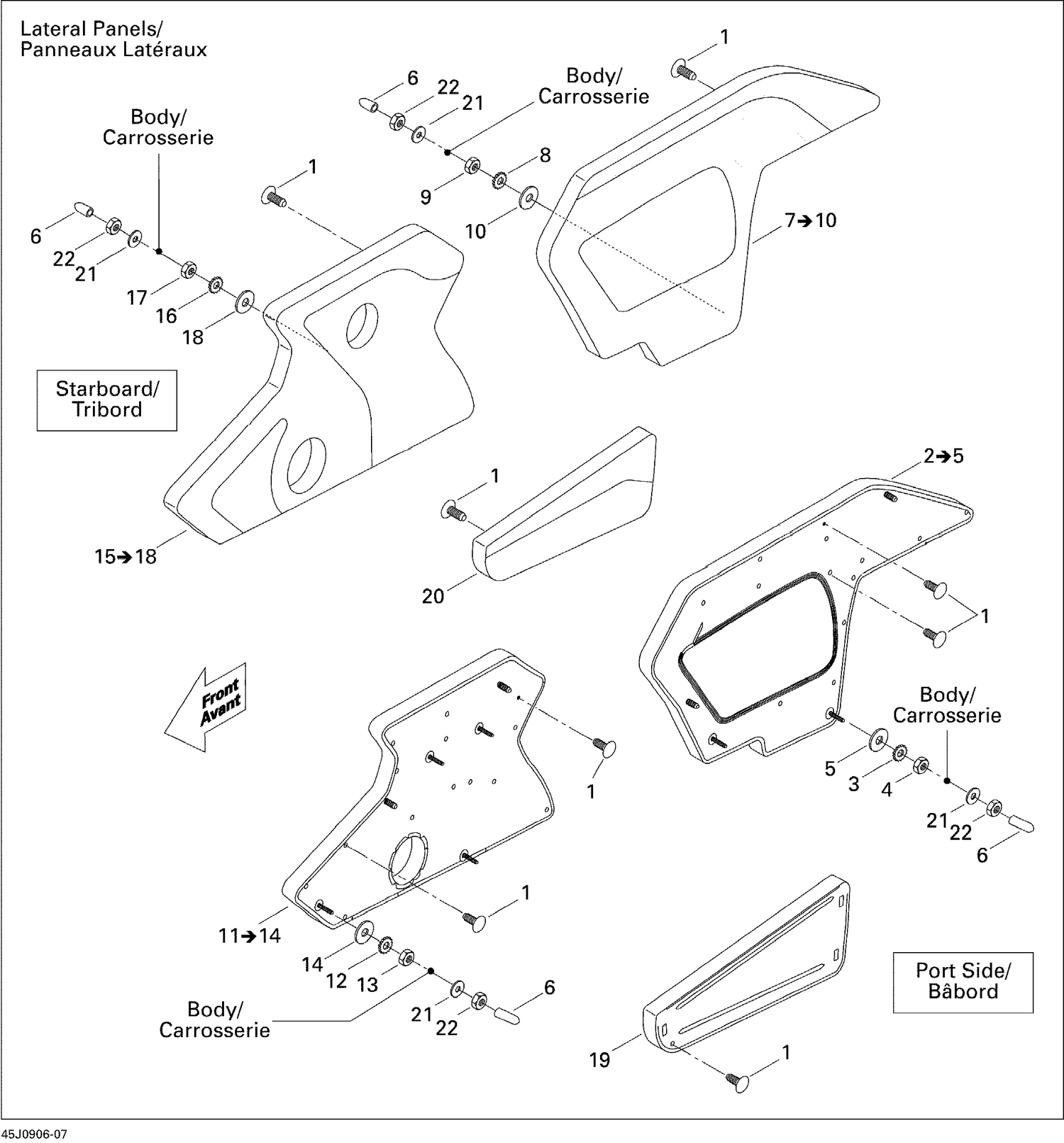

09- Lateral Panel
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293730014 | Black Dart |
| 3 | 234461608 | External Serrated Lock Washer 6 mm |
| 4 | 204100060 | Hex. Jam Nut |
| 5 | 234062600 | Flat Washer M6, Stainless |
| 6 | 204070947 | Cap |
| 8 | 234461608 | External Serrated Lock Washer 6 mm |
| 9 | 204100060 | Hex. Jam Nut |
| 10 | 234062600 | Flat Washer M6, Stainless |
| 12 | 234461608 | External Serrated Lock Washer 6 mm |
| 13 | 204100060 | Hex. Jam Nut |
| 14 | 234062600 | Flat Washer M6, Stainless |
| 16 | 234461608 | External Serrated Lock Washer 6 mm |
| 17 | 204100060 | Hex. Jam Nut |
| 18 | 234062600 | Flat Washer M6, Stainless |
| 19 | 204613187 | Lower Panel, Port Side |
| 20 | 204613190 | Lower Panel, Starboard |
| 21 | 204100089 | FLAT WASHER 9/32? - Call your local BRP dealership |
